LTM4618 Series

Catalog

6A DC/DC ΜMODULE REGULATOR WITH TRACKING AND FREQUENCY SYNCHRONIZATION

Part	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output 1 [Max]	Voltage - Output 1 [Min]	Number of Outputs	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Voltage - Input (Min) [Min]	Applications	Voltage - Input (Max) [Max]	Type	Mounting Type	Package / Case	Current - Output (Max) [Max]	Supplier Device Package	Features
Analog Devices Inc./Maxim Integrated LTM4618EV#PBF	125 °C	-40 C	5 V	0.8 V	1	0.59 in	15 mm	4.3 mm	0.35 in	9 mm	0.17 in	4.5 V	ITE (Commercial)	26.5 V	Non-Isolated PoL Module	Surface Mount	84-BLGA Module	6 A	84-LGA (15x9)	OCP OVP SCP UVLO
Analog Devices Inc./Maxim Integrated LTM4618EY#PBF	125 °C	-40 C	5 V	0.8 V	1	0.59 in	15 mm	4.3 mm	0.35 in	9 mm	0.17 in	4.5 V	ITE (Commercial)	26.5 V	Non-Isolated PoL Module	Surface Mount	84-BBGA Module	6 A	84-BGA (15x9)	OCP OVP SCP UVLO

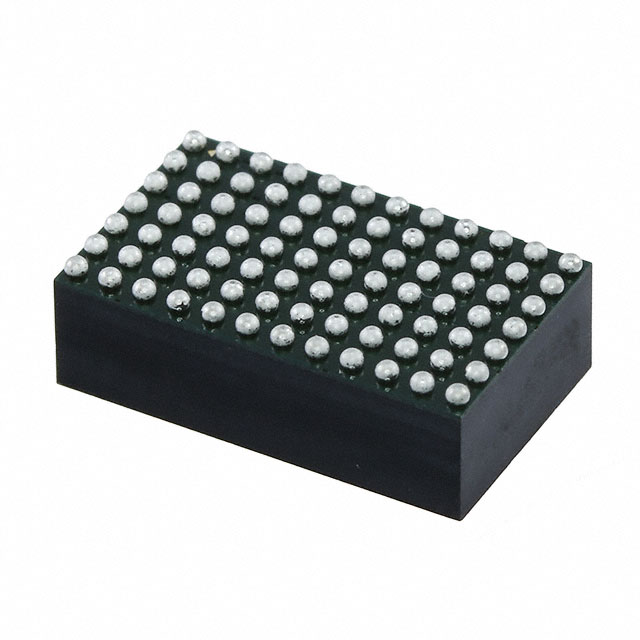

Analog Devices Inc./Maxim Integrated LTM4618IY#PBF	125 °C	-40 C	5 V	0.8 V	1	0.59 in	15 mm	4.3 mm	0.35 in	9 mm	0.17 in	4.5 V	ITE (Commercial)	26.5 V	Non-Isolated PoL Module	Surface Mount	84-BBGA Module	6 A	84-BGA (15x9)	OCP OVP SCP UVLO
Analog Devices Inc./Maxim Integrated LTM4618IV#PBF	125 °C	-40 C	5 V	0.8 V	1	0.59 in	15 mm	4.3 mm	0.35 in	9 mm	0.17 in	4.5 V	ITE (Commercial)	26.5 V	Non-Isolated PoL Module	Surface Mount	84-BLGA Module	6 A	84-LGA (15x9)	OCP OVP SCP UVLO
