M5141 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
TRANSDUCER 2500# PRES 1-5V
| Part | Termination Style | Port Size | Port Size | Port Size | Output [Max] | Output [Min] | Package / Case | Operating Temperature [Max] | Operating Temperature [Min] | Port Style | Accuracy | Voltage - Supply [Max] | Voltage - Supply [Min] | Output Type | Operating Pressure | Operating Pressure | Features | Applications | Pressure Type | Maximum Pressure | Maximum Pressure | Maximum Pressure [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

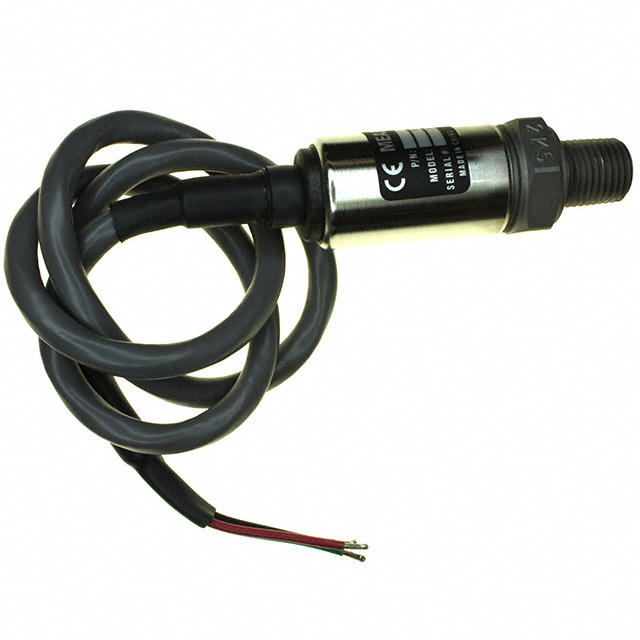

 TE Connectivity AMP Connectors | Cable 2' | Male NPT | 0.25 " | 0.25 in | 5 V | 1 V | Cylinder | 125 °C | -40 C | Threaded | 1 % | 30 VDC | 8 V | Analog Voltage | 2500 PSI | 17236.89 kPa | Temperature Compensated | Industrial Automation | Vented Gauge | 5000 PSI | 34473.79 kPa | |

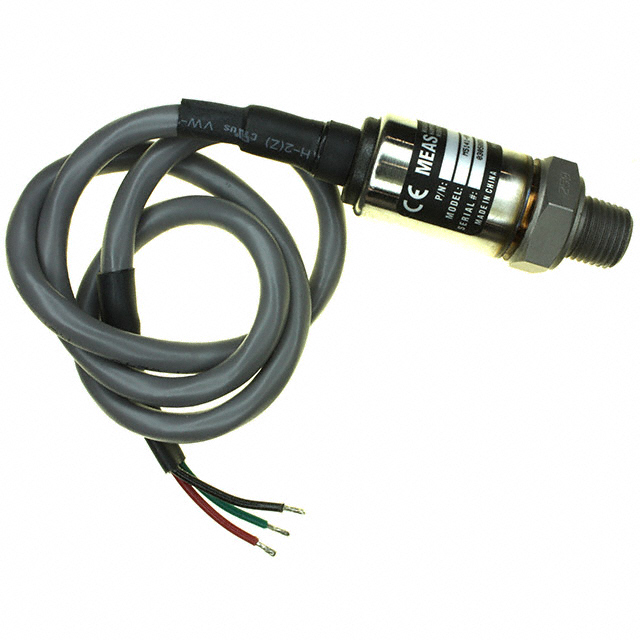

 TE Connectivity AMP Connectors | Cable 2' | Male NPT | 0.25 " | 0.25 in | 5 V | 1 V | Cylinder | 125 °C | -40 C | Threaded | 1 % | 30 VDC | 8 V | Analog Voltage | 75 PSI | 517.11 kPa | Temperature Compensated | Industrial Automation | Vented Gauge | 150 PSI | 1034.21 kPa | |

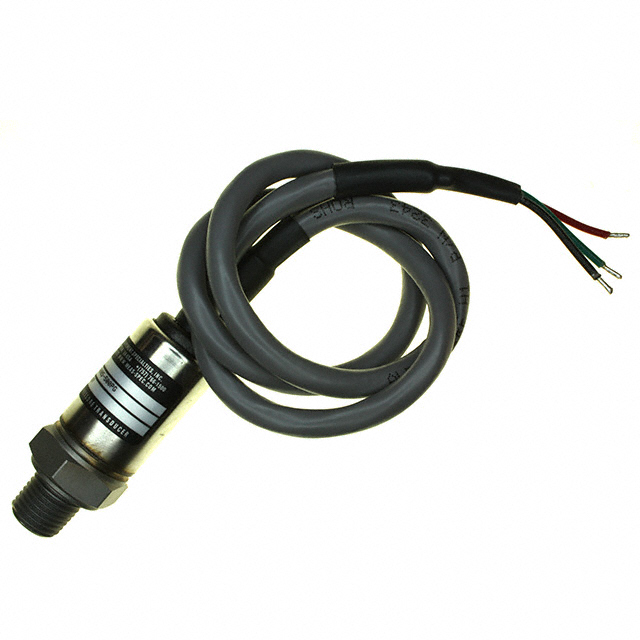

 TE Connectivity AMP Connectors | Cable 2' | Male NPT | 0.25 " | 0.25 in | 5 V | 1 V | Cylinder | 125 °C | -40 C | Threaded | 1 % | 30 VDC | 8 V | Analog Voltage | 500 PSI | 3447.38 kPa | Temperature Compensated | Industrial Automation | Vented Gauge | 1000 PSI | 6894.76 kPa | |

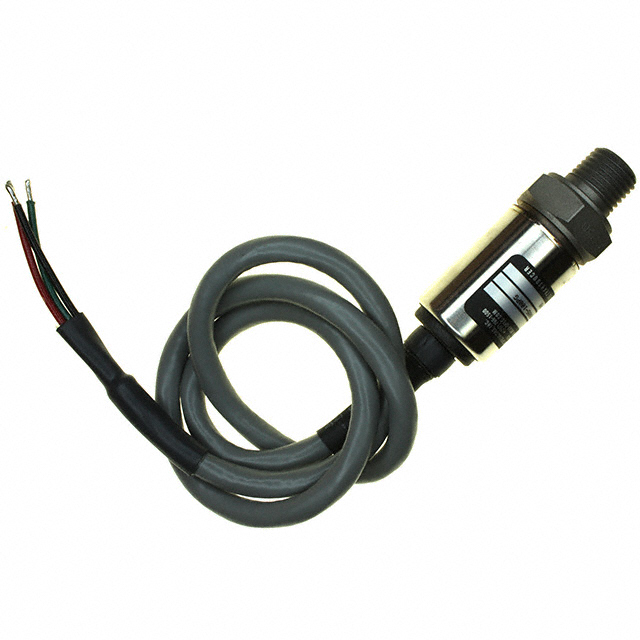

 TE Connectivity AMP Connectors | Cable 2' | Male NPT | 0.25 " | 0.25 in | 5 V | 1 V | Cylinder | 125 °C | -40 C | Threaded | 1 % | 30 VDC | 8 V | Analog Voltage | 100 PSI | 689.48 kPa | Temperature Compensated | Industrial Automation | Vented Gauge | 200 PSI | 1378.95 kPa | |
 TE Connectivity AMP Connectors | Cable 2' | Male NPT | 0.25 " | 0.25 in | 5 V | 1 V | Cylinder | 125 °C | -40 C | Threaded | 1 % | 30 VDC | 8 V | Analog Voltage | 25 PSI | 172.37 kPa | Temperature Compensated | Industrial Automation | Vented Gauge | 50 PSI | 344.74 kPa | |
 TE Connectivity AMP Connectors | Cable 2' | Male NPT | 0.25 " | 0.25 in | 5 V | 1 V | Cylinder | 125 °C | -40 C | Threaded | 1 % | 30 VDC | 8 V | Analog Voltage | 1000 PSI | 6894.76 kPa | Temperature Compensated | Industrial Automation | Vented Gauge | 13789.51 kPa | 2000 PSI | |
 TE Connectivity AMP Connectors | Cable 2' | Male NPT | 0.25 " | 0.25 in | 5 V | 1 V | Cylinder | 125 °C | -40 C | Threaded | 1 % | 30 VDC | 8 V | Analog Voltage | 250 PSI | 1723.69 kPa | Temperature Compensated | Industrial Automation | Vented Gauge | 500 PSI | 3447.38 kPa | |

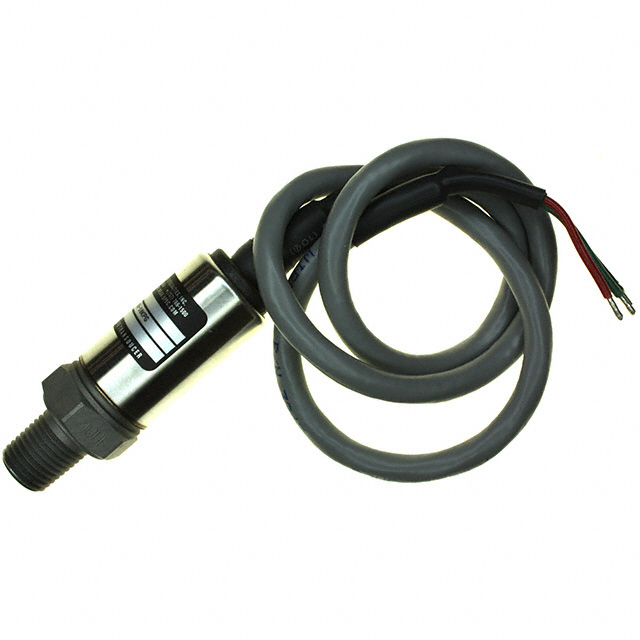

 TE Connectivity AMP Connectors | Cable 2' | Male NPT | 0.25 " | 0.25 in | 5 V | 1 V | Cylinder | 125 °C | -40 C | Threaded | 1 % | 30 VDC | 8 V | Analog Voltage | 10000 PSI | 68947.57 kPa | Temperature Compensated | Industrial Automation | Vented Gauge | 20000 PSI | 137895.15 kPa |
