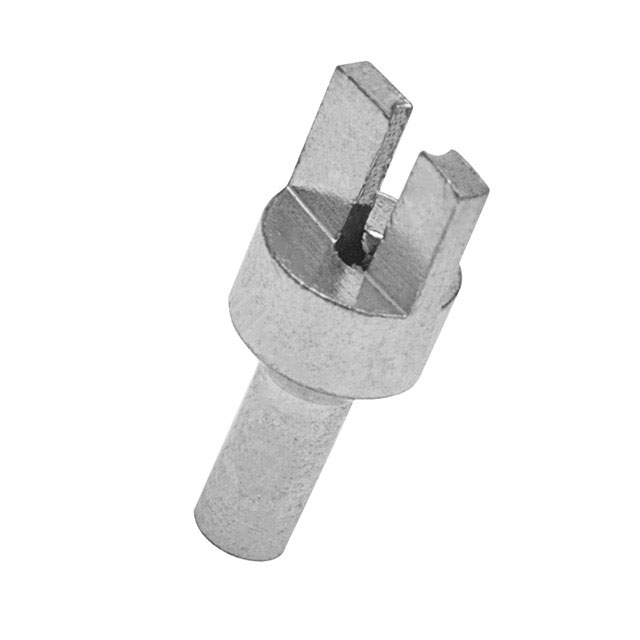

H9067 Series
Manufacturer: Harwin Inc.
Beta
⌘K
VERTICAL THROUGHBOARD SLOTTED LUG ROHS COMPLIANT: YES
| Part | Length - Above Board [x] | Length - Above Board [x] | Mounting Hole Diameter [Min] | Mounting Hole Diameter [Max] | Mounting Hole Diameter [Min] | Mounting Hole Diameter [Max] | Contact Finish | Staking Side ID [Max] | Staking Side ID [Max] | Staking Side ID [Min] | Staking Side ID [Min] | Length - Below Flange [x] | Length - Below Flange [x] | Terminal Type | Number of Turrets | Contact Material | Mounting Type | Insulation | Flange Diameter [diameter] | Flange Diameter [diameter] | Board Thickness [custom] | Board Thickness [custom] | Staking Side OD | Staking Side OD [Min] | Staking Side OD [Max] | Length - Overall | Length - Overall | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Harwin Inc. | 0.187 in | 4.75 mm | 1.52 mm | 0.063 " | 0.06 in | 1.6 mm | Tin | 0.043 in | 1.09 mm | 0.042 in | 1.07 mm | 0.125 " | 3.18 mm | Fork Hollow Single End | Single | Brass Alloy | Through Hole | Non-Insulated | 0.125 in | 3.18 mm | 0.094 in | 2.39 mm | 1.5 mm 1.52 mm | 0.059 in | 0.06 " | 7.95 mm | 0.313 in | Swage |
