RCLAMP0502 Series
Manufacturer: Semtech Corporation
Beta
⌘K
TVS DIODE, RAILCLAMP SERIES, BIDIRECTIONAL, 5 V, 15 V, SC-75, 3 PINS
| Part | Power - Peak Pulse | Capacitance @ Frequency | Operating Temperature [Min] | Operating Temperature [Max] | Applications | Supplier Device Package | Power Line Protection | Voltage - Clamping (Max) @ Ipp [Max] | Voltage - Breakdown (Min) [Min] | Mounting Type | Voltage - Reverse Standoff (Typ) | Unidirectional Channels | Current - Peak Pulse (10/1000µs) | Type | Package / Case | Supplier Device Package [y] | Supplier Device Package [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

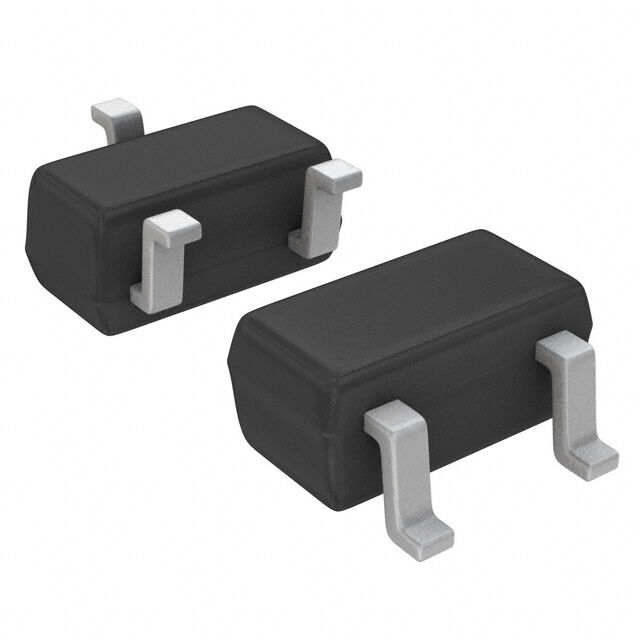

 Semtech Corporation | 125 W | 1.2 pF | -55 ░C | 125 °C | HDMI RF Antenna | SC-75 (SOT523) | 25 V | 6 V | Surface Mount | 5 V | 2 | 5 A | Zener | SC-75 SOT-416 | |||
 Semtech Corporation | 125 W | 1.2 pF | -55 ░C | 125 °C | General Purpose | SC-75 (SOT523) | 25 V | 6 V | Surface Mount | 5 V | 2 | 5 A | Zener | SC-75 SOT-416 | |||

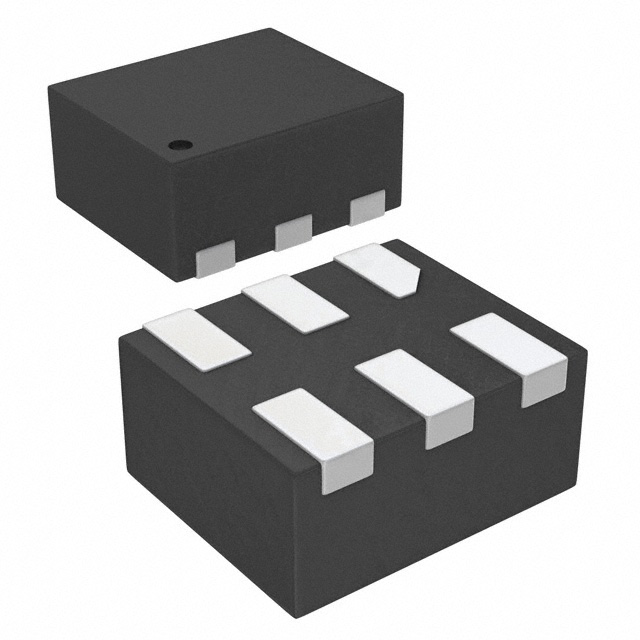

 Semtech Corporation | 100 W | 0.3 pF | -55 ░C | 125 °C | General Purpose | SLP1210N6 | 7 V | Surface Mount | 6.5 V | 3 | 3 A | Steering (Rail to Rail) | 6-UFDFN | 1 | 1.2 | ||

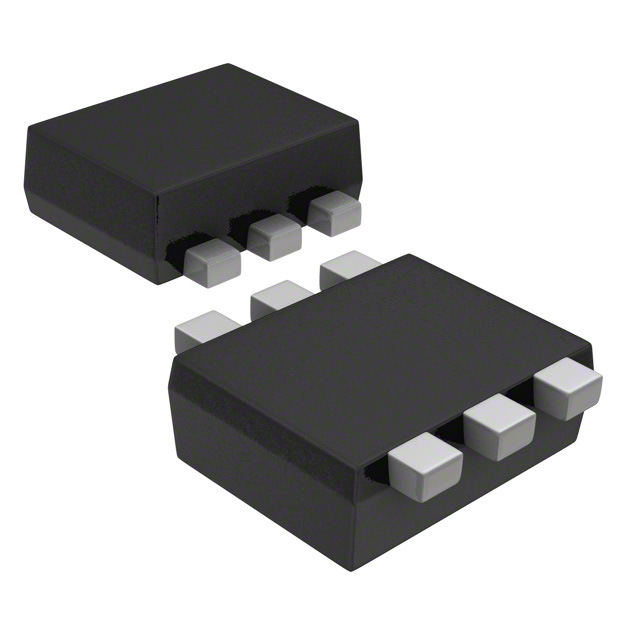

 Semtech Corporation | 50 W | 0.9 pF 1 MHz | -55 ░C | 125 °C | Ethernet HDMI | SC-89 (SOT-666) | 18 V | 6 V | Surface Mount | 5 V | 2 | 3 A | Steering (Rail to Rail) | SOT-563 SOT-666 |
