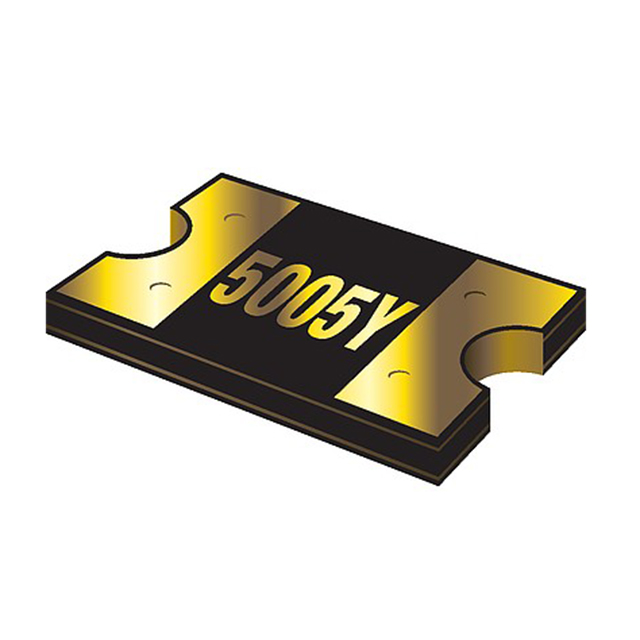

PFMF.010 Series
Manufacturer: SCHURTER Inc.
Beta
⌘K
PTC RESET FUSE 60V 100MA 1812
| Part | Approval Agency | Resistance - Post Trip (R1) (Max) [Max] [custom] | Operating Temperature [Max] | Operating Temperature [Min] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Mounting Type | Voltage - Max [Max] | Type | Package / Case | Resistance - Initial (Ri) (Min) [Min] | Current - Trip (It) | Current - Hold (Ih) (Max) [Max] | Thickness (Max) [Max] | Thickness (Max) [Max] | Current - Max [Max] | Time to Trip |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SCHURTER Inc. | cURus TUV | 15 Ohms | 85 °C | -40 C | 0.179 in | 3.24 mm | 0.128 " | 4.55 mm | Surface Mount | 60 V | Polymeric | 1812 (4532 Metric) Concave | 700 mOhms | 300 mA | 100 mA | 0.043 " | 1.1 mm | 40 A | 1.5 s |
