SXLP Series
Manufacturer: Mini-Circuits
Beta
⌘K

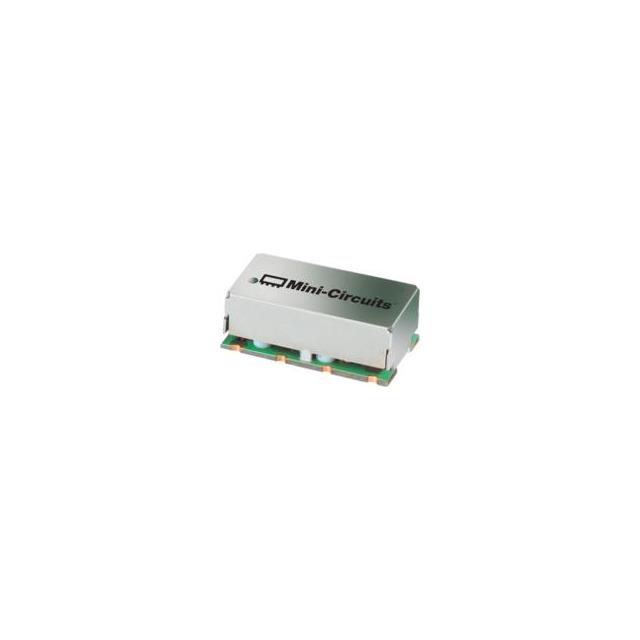

SIGNAL CONDITIONING LUMPED LC LOW PASS FILTER, DC - 30 MHZ, 50OHM
| Part | Filter Type | Height (Max) [z] | Height (Max) [z] | Frequency | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Mounting Type | Package / Case | Insertion Loss | Bandwidth |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mini-Circuits | Low Pass | 6.86 mm | 0.27 in | 35 MHz | 0.74 " | 0.44 " | 18.8 mm | 11.18 mm | Surface Mount | 8-SMD No Lead | ||
 Mini-Circuits | Low Pass | 6.86 mm | 0.27 in | 28 MHz | 0.74 " | 0.44 " | 18.8 mm | 11.18 mm | Surface Mount | 8-SMD No Lead | 1 dB | 25 MHz |
