PL95 Series
Manufacturer: iNRCORE
Beta
⌘K

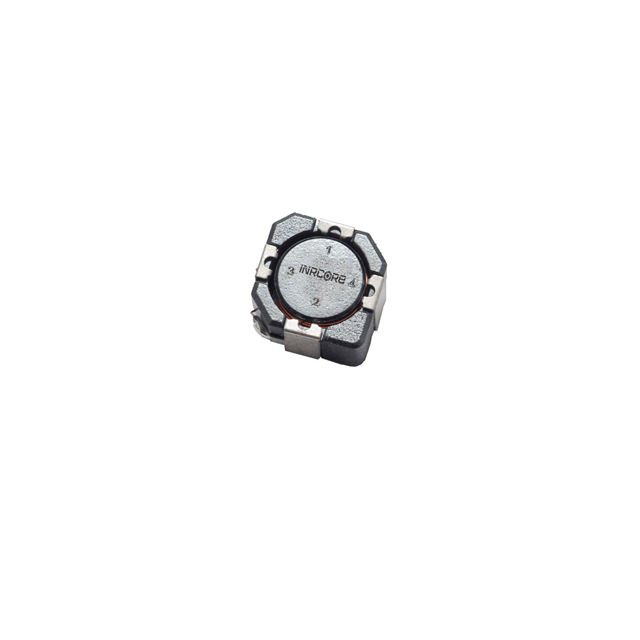

FIXED IND 100UH 400MA 520MOHM SM
| Part | Package / Case | Mounting Type | DC Resistance (DCR) [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Shielding | Tolerance | Current Rating (Amps) | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Current - Saturation (Isat) | Inductance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 iNRCORE | Nonstandard | Surface Mount | 520 mOhm | 130 °C | -55 C | 0.122 in | 3.1 mm | Shielded | 20 % | 400 mA | 0.256 in | 6.5 mm | 6.5 mm | 0.256 " | 400 mA | 100 µH |
