LD15S24 Series
Manufacturer: Amphenol ICC (FCI)
Beta
⌘K

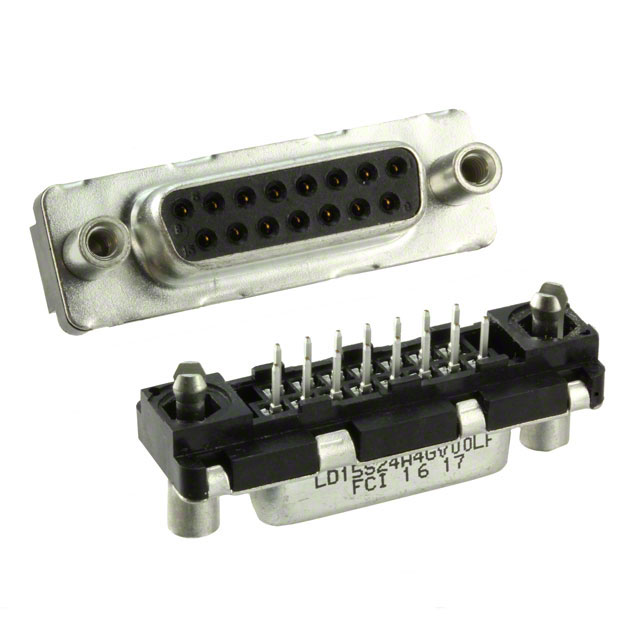

CONN D-SUB RCPT 15POS VERT SLDR
| Part | Contact Material | Color | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Voltage Rating | Contact Type | Contact Finish | Connector Type | Number of Positions | Shell Size, Connector Layout | Material Flammability Rating | Current Rating (Amps) | Termination | Features | Shell Material, Finish | Mounting Type | Connector Style | Flange Feature | Number of Rows [custom] | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (FCI) | Copper Alloy | Black | -55 C | 105 ░C | Thermoplastic | 250 V | Signal | Gold | Receptacle Female Sockets | 15 | 2 | UL94 V-0 | 5 A | Solder | Board Lock | Steel Tin-Nickel Plated | Through Hole | D-Sub | 4-40 Mating Side Female Screwlock | 2 | Flash |
