ALQ1F Series

Manufacturer: Panasonic Electronic Components

Catalog

POWER RELAY, SPDT, 12 VDC, 10 A, ALQ SERIES, THROUGH HOLE, NON LATCHING

Part	Coil Resistance	Coil Voltage	Load - Max Switching	Must Operate Voltage	Approval Agency	Mounting Type	Contact Rating (Current)	Coil Type	Switching Voltage [Max]	Operate Time	Coil Current	Release Time	Must Release Voltage	Relay Type	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Coil Insulation	Contact Form	Termination Style	Seal Rating
Panasonic Electronic Components ALQ1F12	360 Ohms	12 VDC	150 W 1250 VA	9 VDC	CQC cURuus VDE	Through Hole	5 A	Non Latching	30 VDC 250 VAC	20 ms	33.3 mA	20 ms	0.6 VDC	General Purpose	85 °C	-40 C	Silver Nickel (AgNi)	Class F	SPDT (1 Form C)	PC Pin
Panasonic Electronic Components ALQ1F48	5.76 kOhms	48 VDC	150 W 1250 VA	36 VDC	CQC cURuus VDE	Through Hole	5 A	Non Latching	30 VDC 250 VAC	20 ms	8.3 mA	20 ms	2.4 VDC	General Purpose	85 °C	-40 C	Silver Nickel (AgNi)	Class F	SPDT (1 Form C)	PC Pin
Panasonic Electronic Components ALQ1F06	90 Ohms		150 W 1250 VA	4.5 VDC	CQC cURuus VDE	Through Hole	5 A	Non Latching	30 VDC 250 VAC	20 ms	66.7 mA	20 ms	0.3 VDC	General Purpose	85 °C	-40 C	Silver Nickel (AgNi)	Class F	SPDT (1 Form C)	PC Pin
Panasonic Electronic Components ALQ1F06S	90 Ohms		150 W 1250 VA	4.5 VDC	CQC cURuus VDE	Through Hole	5 A	Non Latching	30 VDC 250 VAC	20 ms	66.7 mA	20 ms	0.3 VDC	General Purpose	85 °C	-40 C	Silver Nickel (AgNi)	Class F	SPDT (1 Form C)	PC Pin	Sealed - Fully
Panasonic Electronic Components ALQ1F18S	810 Ohms	18 VDC	150 W 1250 VA	13.5 VDC	CQC cURuus VDE	Through Hole	5 A	Non Latching	30 VDC 250 VAC	20 ms	22.2 mA	20 ms	0.9 VDC	General Purpose	85 °C	-40 C	Silver Nickel (AgNi)	Class F	SPDT (1 Form C)	PC Pin	Sealed - Fully
Panasonic Electronic Components ALQ1F18	810 Ohms	18 VDC	150 W 1250 VA	13.5 VDC	CQC cURuus VDE	Through Hole	5 A	Non Latching	30 VDC 250 VAC	20 ms	22.2 mA	20 ms	0.9 VDC	General Purpose	85 °C	-40 C	Silver Nickel (AgNi)	Class F	SPDT (1 Form C)	PC Pin
Panasonic Electronic Components ALQ1F05S	62.5 Ohms	5 VDC	150 W 1250 VA	3.75 VDC	CQC cURuus VDE	Through Hole	5 A	Non Latching	30 VDC 250 VAC	20 ms	80 mA	20 ms	0.25 VDC	General Purpose	85 °C	-40 C	Silver Nickel (AgNi)	Class F	SPDT (1 Form C)	PC Pin	Sealed - Fully
Panasonic Electronic Components ALQ1F24	1440 Ohms	24 VDC	150 W 1250 VA	18 VDC	CQC cURuus VDE	Through Hole	5 A	Non Latching	30 VDC 250 VAC	20 ms	16.7 mA	20 ms	1.2 VDC	General Purpose	85 °C	-40 C	Silver Nickel (AgNi)	Class F	SPDT (1 Form C)	PC Pin

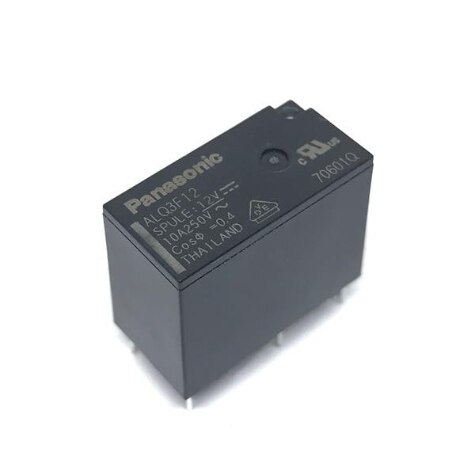

Panasonic Electronic Components ALQ1F09S	202.5 Ohms	9 VDC	150 W 1250 VA	6.75 VDC	CQC cURuus VDE	Through Hole	5 A	Non Latching	30 VDC 250 VAC	20 ms	44.4 mA	20 ms	0.45 VDC	General Purpose	85 °C	-40 C	Silver Nickel (AgNi)	Class F	SPDT (1 Form C)	PC Pin	Sealed - Fully
Panasonic Electronic Components ALQ1F05	62.5 Ohms	5 VDC	150 W 1250 VA	3.75 VDC	CQC cURuus VDE	Through Hole	5 A	Non Latching	30 VDC 250 VAC	20 ms	80 mA	20 ms	0.25 VDC	General Purpose	85 °C	-40 C	Silver Nickel (AgNi)	Class F	SPDT (1 Form C)	PC Pin
