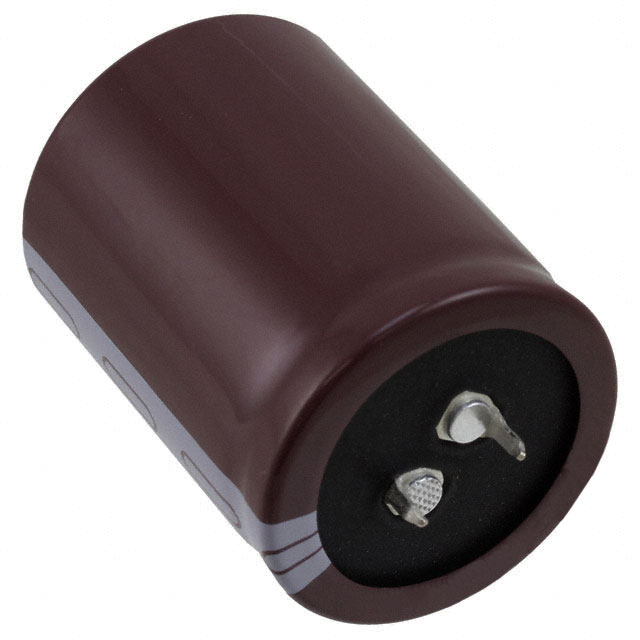

TXH Series
Manufacturer: Chemi-Con
Beta
⌘K
ALUMINUM ELECTROLYTIC CAPACITORS - SNAP IN 250V 680UF 20% TOL.
| Part | Applications | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Rated | Capacitance | Ripple Current @ Low Frequency | Lead Spacing | Lead Spacing | Lifetime @ Temp. | Height - Seated (Max) | Height - Seated (Max) [Max] [z] | Tolerance | Mounting Type | Polarization | Package / Case | Size / Dimension [diameter] | Size / Dimension [diameter] | Ripple Current @ High Frequency | Height - Seated (Max) [Max] [z] | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

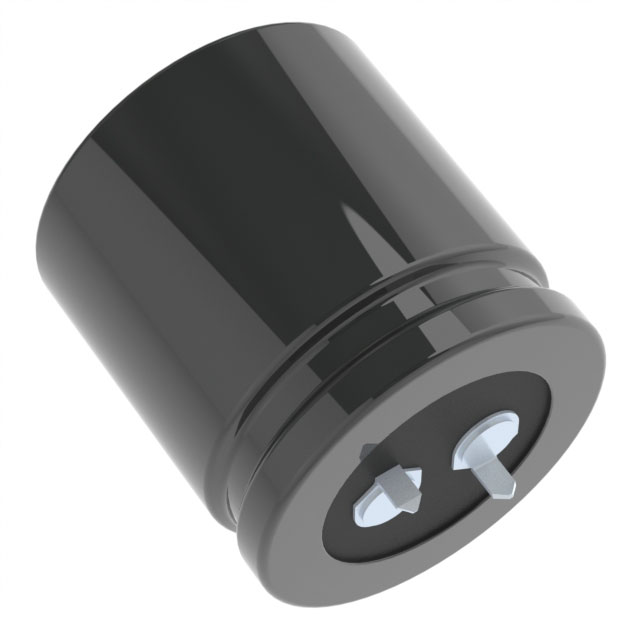

 Chemi-Con | General Purpose | 105 ░C | -25 °C | 250 V | 680 µF | 1.76 A | 0.394 in | 10 mm | 10000 Hrs | 37 mm | 1.457 in | 20 % | Through Hole | Polar | Radial Can - Snap-In | 1.378 " | 35 mm | 2.64 A | ||
 Chemi-Con | General Purpose | 105 ░C | -25 °C | 200 VDC | 820 µF | 2 A | 0.394 in | 10 mm | 10000 Hrs | 1.26 in | 20 % | Through Hole | Polar | Radial Can - Snap-In | 1.378 " | 35 mm | 3000 mA | 32 mm | ||
 Chemi-Con | General Purpose | 105 ░C | -25 °C | 200 VDC | 560 µF | 1.5 A | 0.394 in | 10 mm | 10000 Hrs | 1.26 in | 20 % | Through Hole | Polar | Radial Can - Snap-In | 1.181 " | 2.25 A | 32 mm | 30 mm | ||
 Chemi-Con | General Purpose | 105 ░C | -25 °C | 250 V | 820 µF | 1.96 A | 0.394 in | 10 mm | 10000 Hrs | 1.26 in | 20 % | Through Hole | Polar | Radial Can - Snap-In | 1.575 in | 40 mm | 2.94 A | 32 mm | ||

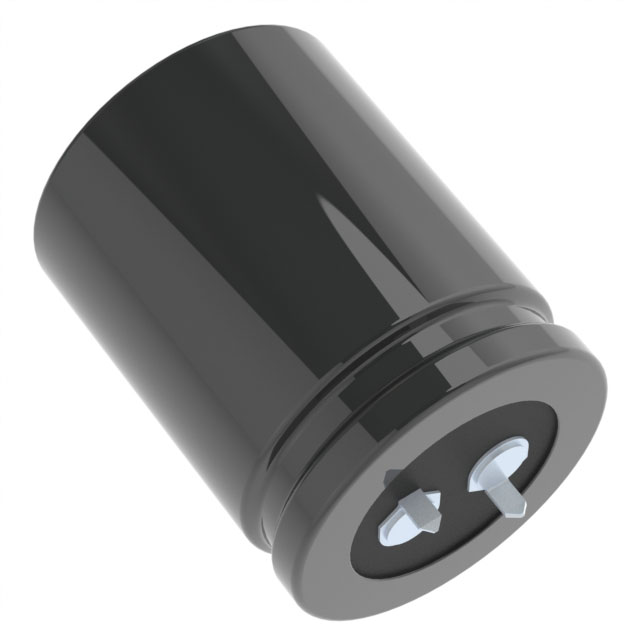

 Chemi-Con | General Purpose | 105 ░C | -25 °C | 400 V | 470 µF | 1.6 A | 0.394 in | 10 mm | 10000 Hrs | 1.772 " | 20 % | Through Hole | Polar | Radial Can - Snap-In | 1.378 " | 35 mm | 2.288 A | 45 mm |
