951214 Series

Catalog

CONN HEADER SMD 14POS 2MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish - Mating	Insulation Material	Number of Positions Loaded	Number of Positions	Contact Length - Mating	Contact Length - Mating	Mounting Type	Shrouding	Fastening Type	Termination	Connector Type	Number of Rows [custom]	Insulation Height [z]	Insulation Height [z]	Insulation Color	Contact Type	Operating Temperature [Max]	Operating Temperature [Min]	Material Flammability Rating	Contact Material	Contact Finish - Post	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Mating	Row Spacing - Mating	Row Spacing - Mating	Contact Shape	Features	Contact Length - Post	Contact Length - Post	Overall Contact Length	Overall Contact Length	Insulation Height	Insulation Height	Contact Length - Post [custom]	Current Rating (Amps)
3M Electronic Specialty 951214-2520-AR-TP	39.4 çin	1 çm	Gold	Thermoplastic	All	14	4 mm	0.157 in	Surface Mount	Unshrouded	Push-Pull	Solder	Header	2	0.06 in	1.52 mm	Black	Male Pin	105 ░C	-25 °C	UL94 V-0	Copper Alloy	Tin	0.079 "	2 mm	Flash	2 mm	0.079 in	Square

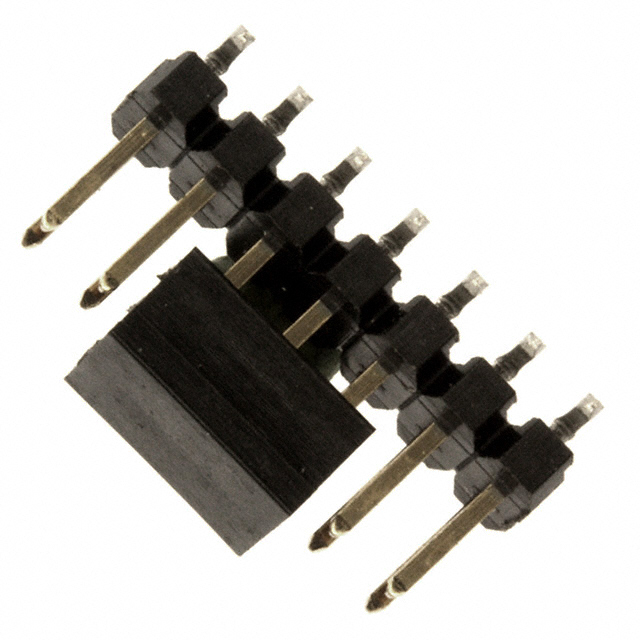

3M Electronic Specialty 951214-2520-AR-PR	39.4 çin	1 çm	Gold	Thermoplastic	All	14	4 mm	0.157 in	Surface Mount	Unshrouded	Push-Pull	Solder	Header	2	0.06 in	1.52 mm	Black	Male Pin	105 ░C	-25 °C	UL94 V-0	Copper Alloy	Tin	0.079 "	2 mm	Flash	2 mm	0.079 in	Square	Pick and Place
3M Electronic Specialty 951214-2550-AR-TP	39.4 çin	1 çm	Gold	Thermoplastic	All	14	4 mm	0.157 in	Surface Mount	Unshrouded	Push-Pull	Solder	Header	2	0.06 in	1.52 mm	Black	Male Pin	105 ░C	-25 °C	UL94 V-0	Copper Alloy	Tin	0.079 "	2 mm	Flash	2 mm	0.079 in	Square	Board Guide
3M Electronic Specialty 951214-8622-AR	39.4 çin	1 çm	Gold	Thermoplastic	All	14	4.4 mm	0.173 in	Through Hole	Unshrouded	Push-Pull	Solder	Header Header Cuttable	2	0.06 in	1.52 mm	Black	Male Pin	125 °C	-55 C	UL94 V-0	Brass Copper Alloy	Gold Tin	0.079 "	2 mm	Flash	2 mm	0.079 in	Square		0.118 in	2.79 mm 3 mm	8.7 mm 8.89 mm	0.343 in 0.35 in	0.059 in	1.5 mm	0.11 in	2 A
