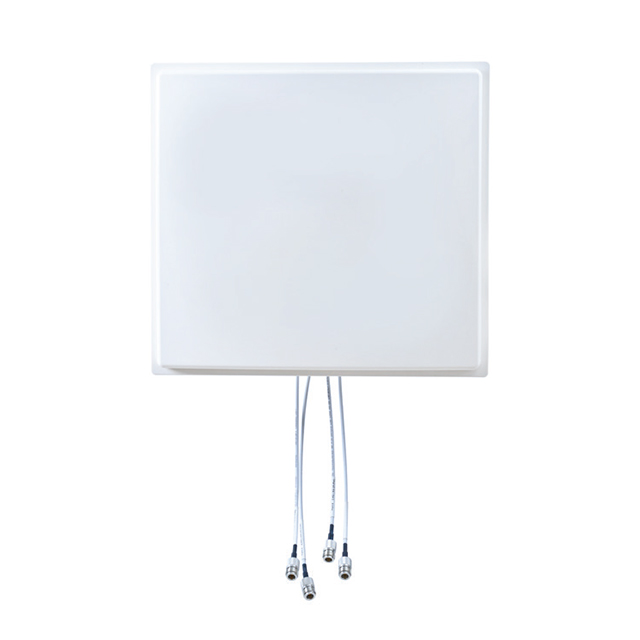

PDQ244915 Series

Catalog

SECTR,34IN,NM 2400-5950MHZ,10DBI

Part	Features	Frequency Group	Number of Bands	Gain	RF Family/Standard	Frequency Range [Min]	Frequency Range [Max]	Height (Max) [Max] [z]	Height (Max) [z]	Applications	Ingress Protection	Mounting Type	VSWR	Antenna Type	Termination	Power - Max [Max]	Termination
TE Connectivity AMP Connectors PDQ244915-91NM	Cable - 910mm	SHF UHF	2	11.1 dBi 15 dB	WiFi	2.4 GHz 4.9 GHz	2.5 GHz 5.95 GHz	1.409 in	35.8 mm	Wi-Fi	IP67	Bracket Mount	1.5 2	Panel	N Type Male (4)	10 W
TE Connectivity AMP Connectors PDQ244915-91NF	Cable - 910mm	SHF UHF	2	11.1 dBi 15 dB	WiFi	2.4 GHz 4.9 GHz	2.5 GHz 5.95 GHz	1.409 in	35.8 mm	Wi-Fi	IP67	Bracket Mount	1.5 2	Panel	N Type Female	10 W	4
TE Connectivity AMP Connectors PDQ244915-91NM	Cable - 910mm	SHF UHF	2	11.1 dBi 15 dB	WiFi	2.4 GHz 4.9 GHz	2.5 GHz 5.95 GHz	1.409 in	35.8 mm	Wi-Fi	IP67	Bracket Mount	1.5 2	Panel	N Type Male (4)	10 W
