MV14 Series

Catalog

CONN SPADE TERM 14-16AWG #8 BLU

Part	Length - Ring Center to Termination [x]	Length - Ring Center to Termination [x]	Length - Termination [x]	Length - Termination [x]	Material - Insulation	Insulation	Mounting Type	Color	Contact Finish	Length - Overall [x]	Length - Overall [x]	Stud/Tab Size	Contact Material	Termination	Terminal Type	Width - Outer Edges [y]	Width - Outer Edges [y]	Wire Gauge [Min]	Wire Gauge [Max]	Features	Width - Outer Edges [x]	Width - Outer Edges [x]	Thickness	Thickness	Width - Outer Edges	Width - Outer Edges	Length - Ring Center to Termination [custom]	Length - Ring Center to Termination [custom]
3M Electronic Specialty MV14-8FK	7.37 mm	0.29 in	11.43 mm	0.45 in	Vinyl	Insulated	Free Hanging (In-Line)	Blue	Tin	22.86 mm	0.9 "	8 Stud	Copper ETP	Crimp	Standard	0.34 in	8.64 mm	14 AWG	16 AWG	Brazed Seam
3M Electronic Specialty MV14-10RK					Vinyl	Insulated	Free Hanging (In-Line)	Blue	Tin	22.86 mm	0.9 "	10 Stud	Copper ETP	Crimp	Circular			14 AWG	16 AWG	Brazed Seam	8.38 mm	0.33 in	0.76 mm	0.03 in
3M Electronic Specialty MV14-8R/LX-BOTTLE					Vinyl	Insulated	Free Hanging (In-Line)	Blue		23.62 mm	0.93 in	8 Stud		Crimp	Circular			14 AWG	16 AWG	Brazed Seam			0.76 mm	0.03 in	7.87 mm	0.31 in
3M Electronic Specialty MV14-10FX-BOTTLE	7.37 mm	0.29 in	11.43 mm	0.45 in	Vinyl	Insulated	Free Hanging (In-Line)	Blue	Tin	22.86 mm	0.9 "	10 Stud	Copper ETP	Crimp	Standard	0.34 in	8.64 mm	14 AWG	16 AWG	Brazed Seam
3M Electronic Specialty MV14-10R/LK					Vinyl	Insulated	Free Hanging (In-Line)	Blue	Tin	23.62 mm	0.93 in	10 Stud	Copper ETP	Crimp	Circular			14 AWG	16 AWG	Brazed Seam			0.76 mm	0.03 in	7.87 mm	0.31 in
3M Electronic Specialty MV14-6FB/SX-BOTTLE			11.43 mm	0.45 in	Vinyl	Insulated	Free Hanging (In-Line)	Blue	Tin	21.59 mm	0.85 in	6 Stud	Copper ETP	Crimp	Standard			14 AWG	16 AWG	Brazed Seam	6.35 mm	0.25 "					6.35 mm	0.25 "

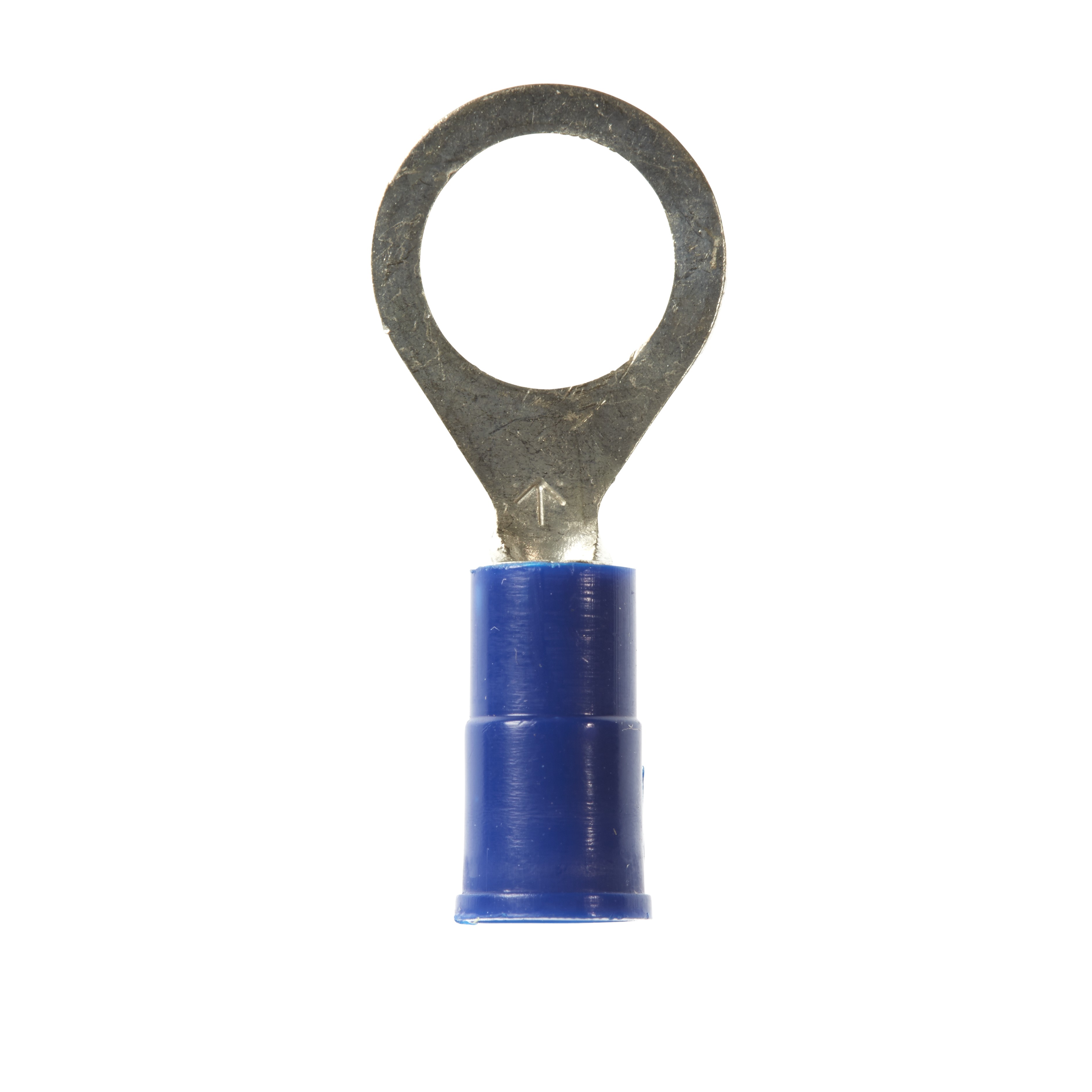

3M Electronic Specialty MV14-516R/SX-BOTTLE					Vinyl	Insulated	Free Hanging (In-Line)	Blue	Tin	27.43 mm	1.08 in	0.3125 Stud	Copper ETP	Crimp	Circular			14 AWG	16 AWG	Brazed Seam	11.94 mm	0.47 in	0.76 mm	0.03 in

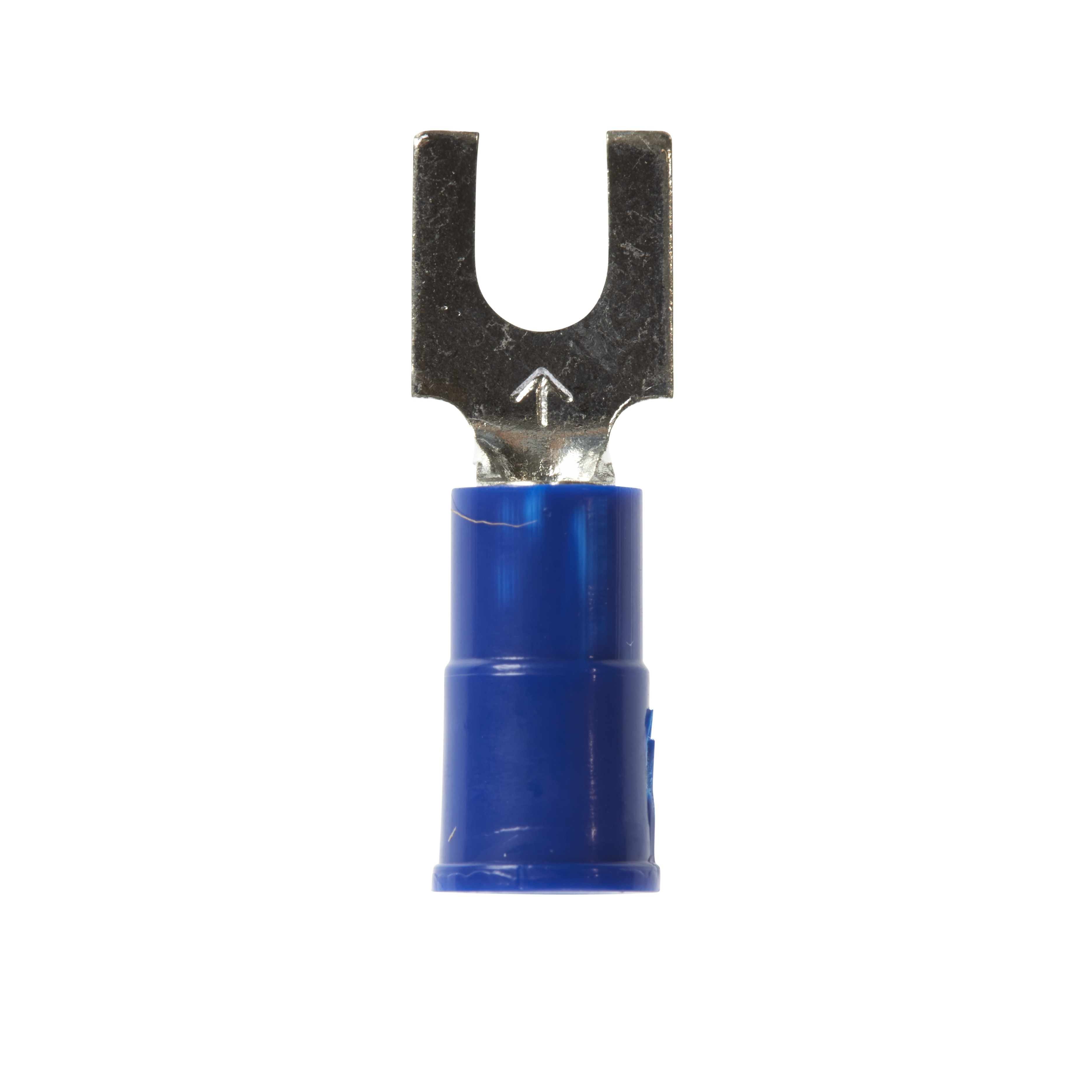

3M Electronic Specialty MV14-6FBK			11.43 mm	0.45 in	Vinyl	Insulated	Free Hanging (In-Line)	Blue	Tin	21.59 mm	0.85 in	6 Stud	Copper ETP	Crimp	Standard			14 AWG	16 AWG	Brazed Seam							6.35 mm	0.25 "
3M Electronic Specialty MV14-6FBX-BOTTLE			11.43 mm	0.45 in	Vinyl	Insulated	Free Hanging (In-Line)	Blue	Tin	21.59 mm	0.85 in	6 Stud	Copper ETP	Crimp	Standard			14 AWG	16 AWG	Brazed Seam							6.35 mm	0.25 "

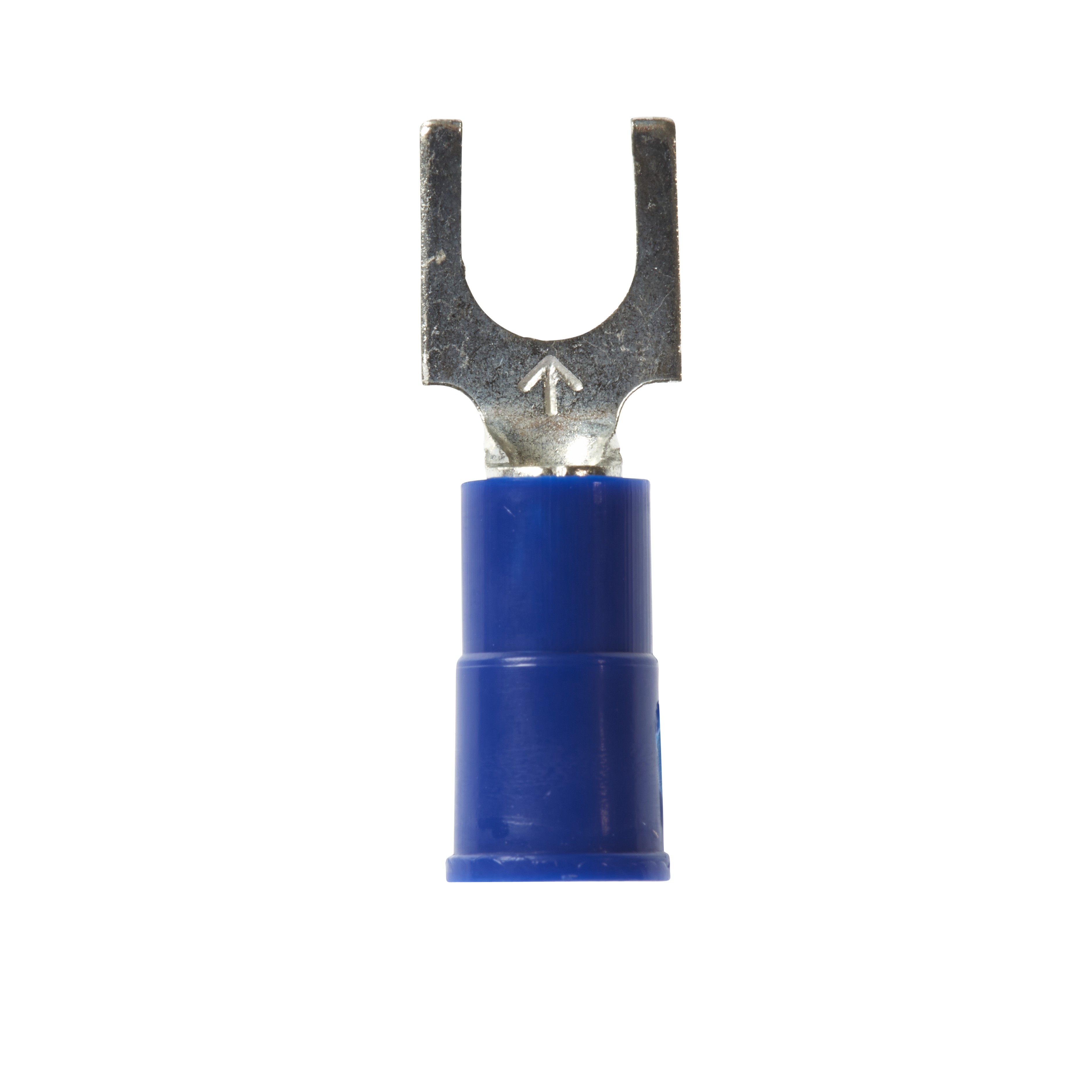

3M Electronic Specialty MV14-10FBK			11.43 mm	0.45 in	Vinyl	Insulated	Free Hanging (In-Line)	Blue	Tin	21.59 mm	0.85 in	10 Stud	Copper ETP	Crimp	Standard			14 AWG	16 AWG	Brazed Seam							6.35 mm	0.25 "
