PMS9505 Series
Manufacturer: Pulse Electronics
Beta
⌘K

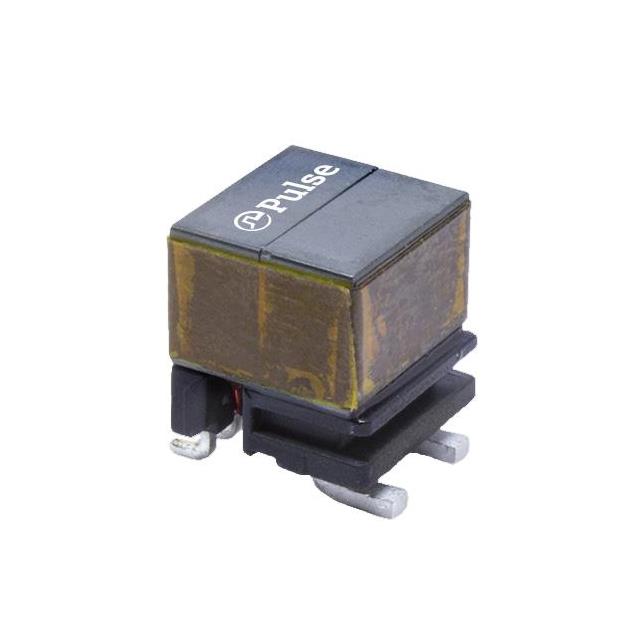

CURRENT TRANSFORMERS 7.0MH 3KV 30A AECQ2 DCR=.5MOHMS
| Part | Frequency Range | Termination Style | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | DC Resistance (DCR) [custom] | DC Resistance (DCR) [custom] | Turns Ratio - Primary:Secondary | Current Rating (Amps) | Ratings | Type | Inductance | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] [z] | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Pulse Electronics | 20 kHz | Gull Wing | 12.8 mm | 12.2 mm | 0.48 in | 0.504 in | 500 µOhm | 3.1 Ohm | 1:100 | 30 A | AEC-Q200 | Invasive | 7 mH | 14.4 mm | 0.567 in | Surface Mount |
