EN3P3F Series

Catalog

CIRCULAR CONNECTOR, EN3 SERIES, PCB MOUNT RECEPTACLE, 3 CONTACTS, PCB SOCKET, THERMOPLASTIC BODY

Part	Ingress Protection	Voltage Rating	Contact Finish - Mating	Termination	Orientation	Current Rating (Amps)	Applications	Insert Material	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Shielding	Mounting Type	Mounting Feature	Contact Material	Material Flammability Rating	Fastening Type	Color	Primary Material
SWITCHCRAFT/CONXALL EN3P3FRAPCBN	IP66 IP68	250 VAC	Gold	Circuit Board Solder	Keyed	5 A	General Purpose Instrumentation Marine Medical	Elastomer	-40 C	65 °C	Receptacle Female Sockets	Unshielded	Panel Mount Right Angle Through Hole	Bulkhead - Front Side Nut	Copper Alloy	UL94 V-0	Bayonet Lock	Black	Plastic

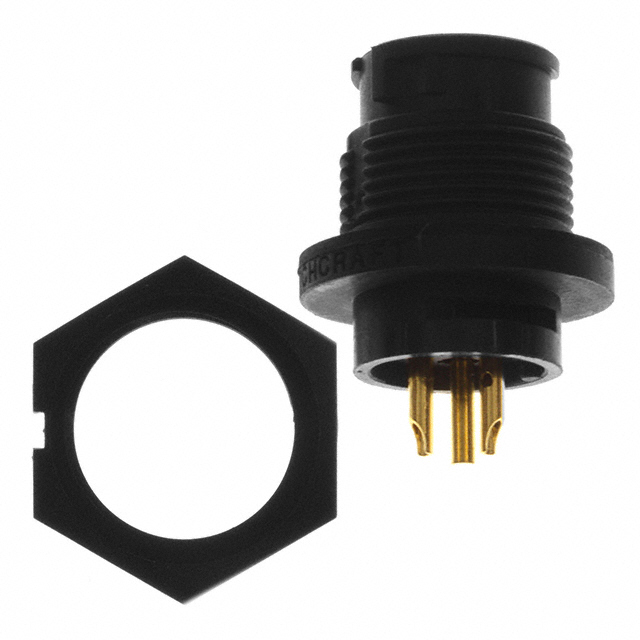

SWITCHCRAFT/CONXALL EN3P3FX	IP66 IP68	250 VAC	Gold		Keyed	7.5 A	General Purpose Instrumentation Marine Medical	Elastomer	-40 C	65 °C	Receptacle Female Sockets	Unshielded	Panel Mount	Bulkhead - Front Side Nut	Copper Alloy	UL94 V-0	Bayonet Lock	Black	Plastic
SWITCHCRAFT/CONXALL EN3P3FCX	IP66 IP68	250 VAC	Gold	Crimp	Keyed	7.5 A	General Purpose Instrumentation Marine Medical	Elastomer	-40 C	65 °C	Receptacle Female Sockets	Unshielded	Panel Mount	Bulkhead - Front Side Nut	Copper Alloy	UL94 V-0	Bayonet Lock	Black	Plastic
SWITCHCRAFT/CONXALL EN3P3F16CX	IP66 IP68	250 VAC	Gold	Crimp	Keyed	13 A	General Purpose Instrumentation Marine Medical	Elastomer	-40 C	65 °C	Receptacle Female Sockets	Unshielded	Panel Mount	Bulkhead - Front Side Nut	Copper Alloy	UL94 V-0	Bayonet Lock	Black	Plastic
SWITCHCRAFT/CONXALL EN3P3F16X	IP66 IP68	250 VAC	Gold		Keyed	13 A	General Purpose Instrumentation Marine Medical	Elastomer	-40 C	65 °C	Receptacle Female Sockets	Unshielded	Panel Mount	Bulkhead - Front Side Nut	Copper Alloy	UL94 V-0	Bayonet Lock	Black	Plastic
SWITCHCRAFT/CONXALL EN3P3FRAPCBW	IP66 IP68	250 VAC	Gold	Circuit Board Solder	Keyed	5 A	General Purpose Instrumentation Marine Medical	Elastomer	-40 C	65 °C	Receptacle Female Sockets	Unshielded	Panel Mount Right Angle Through Hole	Bulkhead - Front Side Nut	Copper Alloy	UL94 V-0	Bayonet Lock	Black	Plastic
SWITCHCRAFT/CONXALL EN3P3F16PX	IP66 IP68	250 VAC	Gold	Solder	Keyed	13 A	General Purpose Instrumentation Marine Medical	Elastomer	-40 C	65 °C	Receptacle Female Sockets	Unshielded	Panel Mount Through Hole	Bulkhead - Front Side Nut	Copper Alloy	UL94 V-0	Bayonet Lock	Black	Plastic
SWITCHCRAFT/CONXALL EN3P3FRAPCX	IP66 IP68	250 VAC	Gold	Solder	Keyed	5 A	General Purpose Instrumentation Marine Medical	Elastomer	-40 C	65 °C	Receptacle Female Sockets	Unshielded	Panel Mount Right Angle Through Hole	Bulkhead - Front Side Nut	Copper Alloy	UL94 V-0	Bayonet Lock	Black	Plastic
SWITCHCRAFT/CONXALL EN3P3FPX	IP66 IP68	250 VAC	Gold	Solder	Keyed	7.5 A	General Purpose Instrumentation Marine Medical	Elastomer	-40 C	65 °C	Receptacle Female Sockets	Unshielded	Panel Mount Through Hole	Bulkhead - Front Side Nut	Copper Alloy	UL94 V-0	Bayonet Lock	Black	Plastic
