MS3106A32 Series

Manufacturer: Amphenol Aerospace Operations

Catalog

CONN PLUG MALE 54P SILV SLDR CUP

Part	Contact Material	Applications	Operating Temperature (Max)	Operating Temperature (Min)	Shell Material	Insert Material	Color	Backshell Material	Plating	Primary Material	Contact Finish - Mating	Number of Positions	Qualification	Mounting Type	Orientation	Termination	Shell Finish	Fastening Type	Shell Size - Insert Width	Shell Size - Insert Length	Connector Type	Features	Shielding	Ingress Protection	Current Rating Options	Grade	Current Rating	Voltage Rating (DC)	Voltage Rating (AC)
Amphenol Aerospace Operations MS3106A32-22PW	Copper Alloy	Marine Military	125 °C	-55 °C	Aluminum Alloy	Neoprene	Olive Drab	Aluminum Alloy	Olive Drab Chromate over Cadmium	Metal	Silver	54	MIL-DTL-5015	Free Hanging (In-Line)	W	Solder Cup	Cadmium Olive Drab Chromate	Threaded	22 mm	32 mm	Male Pins Plug	Backshell Coupling Nut	Unshielded
Amphenol Aerospace Operations MS3106A32-8S	Copper Alloy	Marine Military	125 °C	-55 °C	Aluminum Alloy	Neoprene	Olive Drab			Metal	Silver	30	MIL-DTL-5015	Free Hanging (In-Line)	N (Normal)	Solder Cup	Cadmium Olive Drab Chromate	Threaded	8 mm	32 mm	Female Sockets Plug	Backshell Coupling Nut	Unshielded	Environment Resistant	13A 23A	Military

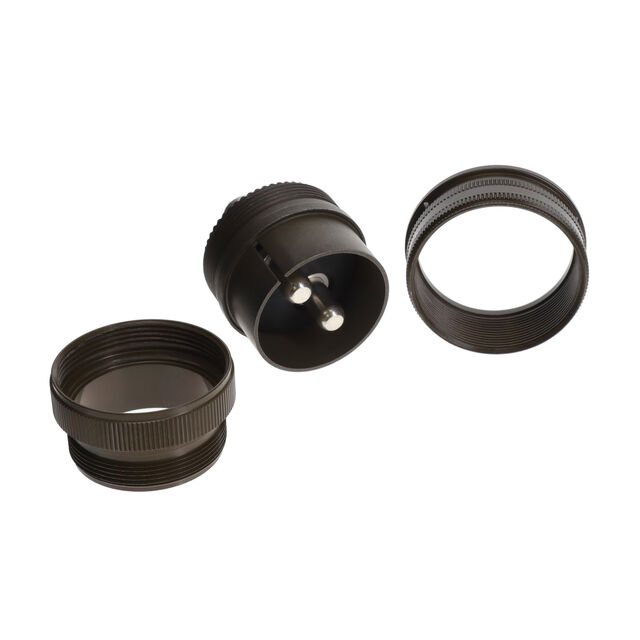

Amphenol Aerospace Operations MS3106A32-5P	Copper Alloy	Marine Military	125 °C	-55 °C	Aluminum Alloy	Neoprene	Olive Drab			Metal	Silver	2	MIL-DTL-5015	Free Hanging (In-Line)	N (Normal)	Solder Cup	Cadmium Olive Drab Chromate	Threaded	5 mm	32 mm	Male Pins Plug	Backshell Coupling Nut	Unshielded	Environment Resistant		Military	150 A	1250 VDC	900 VAC
Amphenol Aerospace Operations MS3106A32-6P	Copper Alloy	Marine Military	125 °C	-55 °C	Aluminum Alloy	Neoprene	Olive Drab			Metal	Silver	23	MIL-DTL-5015	Free Hanging (In-Line)	N (Normal)	Solder Cup	Cadmium Olive Drab Chromate	Threaded	6 mm	32 mm	Male Pins Plug	Backshell Coupling Nut	Unshielded	Environment Resistant	13A 23A 46A 80A	Military

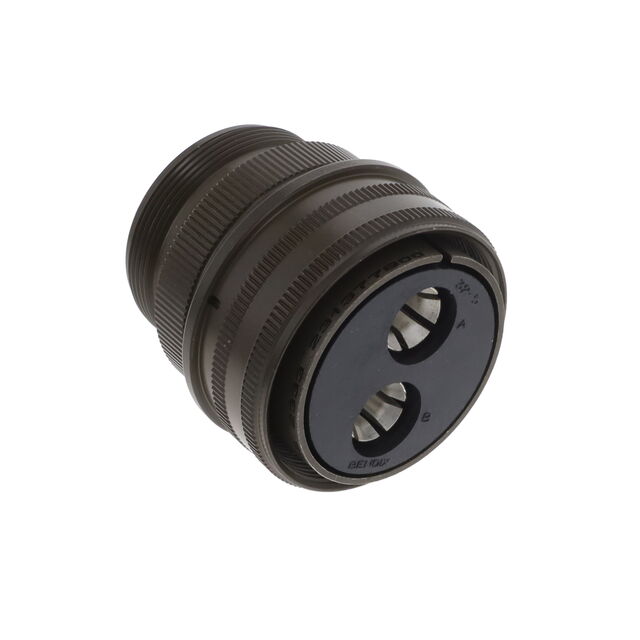

Amphenol Aerospace Operations MS3106A32-5S	Copper Alloy	Marine Military	125 °C	-55 °C	Aluminum Alloy	Neoprene	Olive Drab			Metal	Silver	2	MIL-DTL-5015	Free Hanging (In-Line)	N (Normal)	Solder Cup	Cadmium Olive Drab Chromate	Threaded	5 mm	32 mm	Female Sockets Plug	Backshell Coupling Nut	Unshielded	Environment Resistant		Military	150 A	1250 VDC	900 VAC
Amphenol Aerospace Operations MS3106A32-17SY	Copper Alloy	Marine Military	125 °C	-55 °C	Aluminum Alloy	Neoprene	Olive Drab	Aluminum Alloy	Olive Drab Chromate over Cadmium	Metal	Silver	4	MIL-DTL-5015	Free Hanging (In-Line)	Y	Solder Cup	Cadmium Olive Drab Chromate	Threaded	17 mm	32 mm	Female Sockets Plug	Backshell Coupling Nut	Unshielded
Amphenol Aerospace Operations MS3106A32-5S-RES
Amphenol Aerospace Operations MS3106A32-13P	Copper Alloy	Marine Military	125 °C	-55 °C	Aluminum Alloy	Neoprene	Olive Drab			Metal	Silver	23	MIL-DTL-5015	Free Hanging (In-Line)	N (Normal)	Solder Cup	Cadmium Olive Drab Chromate	Threaded	13 mm	32 mm	Male Pins Plug	Backshell Coupling Nut	Unshielded	Environment Resistant	13A 23A	Military		1250 VDC	900 VAC

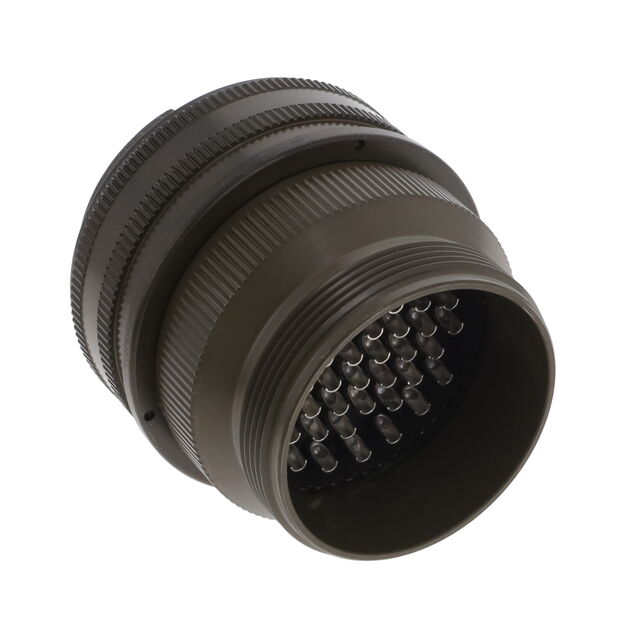

Amphenol Aerospace Operations MS3106A32-22S	Copper Alloy	Marine Military	125 °C	-55 °C	Aluminum Alloy	Neoprene	Olive Drab	Aluminum Alloy	Olive Drab Chromate over Cadmium	Metal	Silver	54		Free Hanging (In-Line)	N (Normal)	Solder Cup	Cadmium Olive Drab Chromate	Threaded	22 mm	32 mm	Female Sockets Plug	Backshell Coupling Nut	Unshielded				13 A	700 VDC	500 VAC

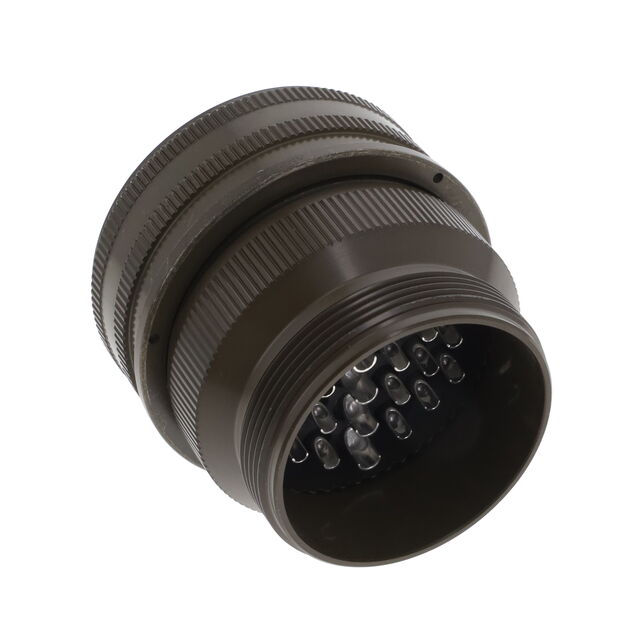

Amphenol Aerospace Operations MS3106A32-8P	Copper Alloy	Marine Military	125 °C	-55 °C	Aluminum Alloy	Neoprene	Olive Drab			Metal	Silver	30	MIL-DTL-5015	Free Hanging (In-Line)	N (Normal)	Solder Cup	Cadmium Olive Drab Chromate	Threaded	8 mm	32 mm	Male Pins Plug	Backshell Coupling Nut	Unshielded	Environment Resistant	13A 23A	Military
