FFMD-03 Series

Catalog

.050 CABLE PLUG

Part	Pitch - Cable [x]	Pitch - Cable	Number of Positions	Connector Type	Cable Termination	Contact Finish	Length [x]	Length [x]	Length [x]	Shielding	Pitch - Connector	Pitch - Connector	Number of Rows	Length	Length	Length	Length
Samtec Inc. FFMD-03-S-04.00-01	0.025 in	0.64 mm	6	Plug to Cable	IDC	Tin	4 "	0.333 ft	101.6 mm	Unshielded	0.05 in	1.27 mm	2
Samtec Inc. FFMD-03-D-03.00-01	0.025 in	0.64 mm	6	Plug to Plug	IDC	Tin				Unshielded	0.05 in	1.27 mm	2	3 "	76.2 mm	0.25 ft
Samtec Inc. FFMD-03-S-05.00-01	0.025 in	0.64 mm	6	Plug to Cable	IDC	Tin	5 "	0.417 '	127 mm	Unshielded	0.05 in	1.27 mm	2
Samtec Inc. FFMD-03-T-12.00-01	0.025 in	0.64 mm	6	Socket to Plug	IDC	Tin				Unshielded	0.05 in	1.27 mm	2		304.8 mm	1 ft
Samtec Inc. FFMD-03-T-07.25-01	0.025 in	0.64 mm	6	Socket to Plug	IDC	Tin				Unshielded	0.05 in	1.27 mm	2	7.25 "	184.15 mm	0.604 '
Samtec Inc. FFMD-03-T-02.00-01	0.025 in	0.64 mm	6	Socket to Plug	IDC	Tin				Unshielded	0.05 in	1.27 mm	2	2 "	50.8 mm	0.167 '
Samtec Inc. FFMD-03-D-05.00-01	0.025 in	0.64 mm	6	Plug to Plug	IDC	Tin	5 "	0.417 '	127 mm	Unshielded	0.05 in	1.27 mm	2
Samtec Inc. FFMD-03-D-78.74-01	0.025 in	0.64 mm	6	Plug to Plug	IDC	Tin		6.56 ft	2 m	Unshielded	0.05 in	1.27 mm	2

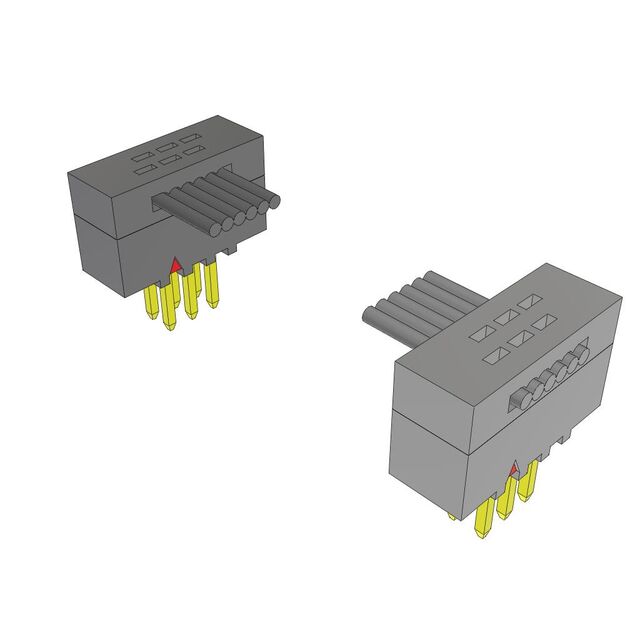

Samtec Inc. FFMD-03-D-06.00-01	0.025 in	0.64 mm	6	Plug to Plug	IDC	Tin				Unshielded	0.05 in	1.27 mm	2	6 "	152.4 mm		0.5 '
Samtec Inc. FFMD-03-T-07.00-01	0.025 in	0.64 mm	6	Socket to Plug	IDC	Tin				Unshielded	0.05 in	1.27 mm	2	7 in	177.8 mm	0.583 ft
