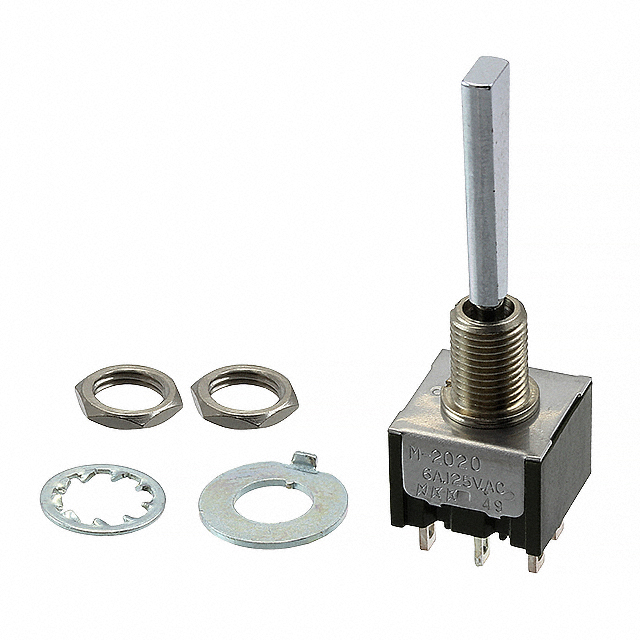

M2024E4 Series
Manufacturer: NKK Switches
Beta
⌘K
SWITCH TOGGLE SP3T 6A 125V
| Part | Electrical Life | Actuator Material | Operating Temperature [Max] | Operating Temperature [Min] | Current Rating (Amps) | Switch Function | Voltage Rating - AC | Circuit | Panel Cutout Dimensions [diameter] | Termination Style | Voltage Rating - DC | Mounting Type | Features | Actuator Type | Bushing Thread | Actuator Length [x] | Illumination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | 25000 Steps | Brass Chrome Plated | 85 °C | -30 ░C | 3 A 6 A | On-On-On | 125 V | SP3T | 6.5 mm | Solder Lug | 30 V | Panel Mount | Jumper needed to achieve triple throw | Flatted | 1/4-40 | 21.3 mm | Non-Illuminated |
