9983 Series

Catalog

WIRE, HOOK UP, PVC, BLACK, 22 AWG, 100 FT

Part	Operating Temperature [Max]	Operating Temperature [Min]	Wire Gauge	Conductor Strand [custom]	Conductor Strand [custom]	Ratings	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Material	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Length [x]	Length [x]	Jacket Color	Conductor Material	Cable Type	Voltage	Length	Length
Belden Inc. 9983 010100	80 °C	-20 ░C	22 AWG	30 AWG	7	UL Style 1061	0.05 "	1.27 mm	Poly-Vinyl Chloride (PVC)	0.25 mm	0.01 in	100 ft	30.5 m	Black	Copper Tinned	Hook-Up	300 VDC
Belden Inc. 9983 0081000	80 °C	-20 ░C	22 AWG	30 AWG	7	UL Style 1061	0.05 "	1.27 mm	Poly-Vinyl Chloride (PVC)	0.25 mm	0.01 in			Gray	Copper Tinned	Hook-Up	300 VDC	304.8 m	1000 ft
Belden Inc. 9983 0021000	80 °C	-20 ░C	22 AWG	30 AWG	7	UL Style 1061	0.05 "	1.27 mm	Poly-Vinyl Chloride (PVC)	0.25 mm	0.01 in			Red	Copper Tinned	Hook-Up	300 VDC	304.8 m	1000 ft

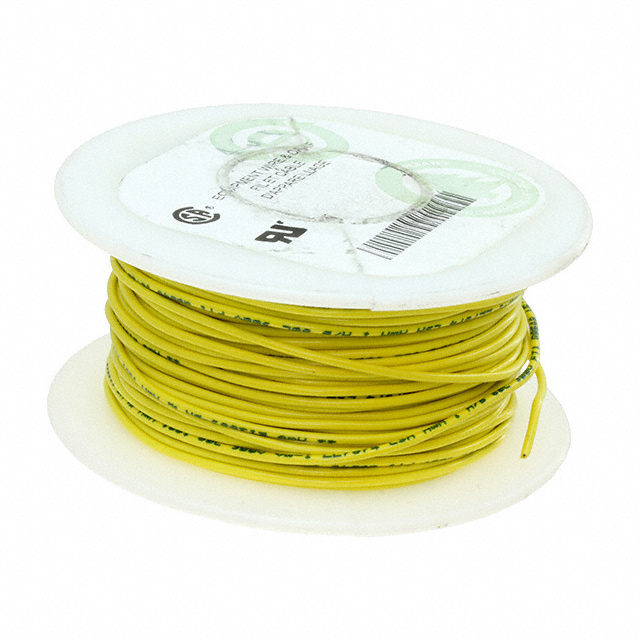

Belden Inc. 9983 004100	80 °C	-20 ░C	22 AWG	30 AWG	7	UL Style 1061	0.05 "	1.27 mm	Poly-Vinyl Chloride (PVC)	0.25 mm	0.01 in	100 ft	30.5 m	Yellow	Copper Tinned	Hook-Up	300 VDC
Belden Inc. 9983 0011000	80 °C	-20 ░C	22 AWG	30 AWG	7	UL Style 1061	0.05 "	1.27 mm	Poly-Vinyl Chloride (PVC)	0.25 mm	0.01 in			Brown	Copper Tinned	Hook-Up	300 VDC	304.8 m	1000 ft
Belden Inc. 9983 009100	80 °C	-20 ░C	22 AWG	30 AWG	7	UL Style 1061	0.05 "	1.27 mm	Poly-Vinyl Chloride (PVC)	0.25 mm	0.01 in	100 ft	30.5 m	White	Copper Tinned	Hook-Up	300 VDC
Belden Inc. 9983 003100	80 °C	-20 ░C	22 AWG	30 AWG	7	UL Style 1061	0.05 "	1.27 mm	Poly-Vinyl Chloride (PVC)	0.25 mm	0.01 in	100 ft	30.5 m	Orange	Copper Tinned	Hook-Up	300 VDC
Belden Inc. 9983 0101000	80 °C	-20 ░C	22 AWG	30 AWG	7	UL Style 1061	0.05 "	1.27 mm	Poly-Vinyl Chloride (PVC)	0.25 mm	0.01 in			Black	Copper Tinned	Hook-Up	300 VDC	304.8 m	1000 ft
Belden Inc. 9983 0131000	80 °C	-20 ░C	22 AWG	30 AWG	7	UL Style 1061	0.05 "	1.27 mm	Poly-Vinyl Chloride (PVC)	0.25 mm	0.01 in			Blue	Copper Tinned	Hook-Up	300 VDC	304.8 m	1000 ft
Belden Inc. 9983 0071000	80 °C	-20 ░C	22 AWG	30 AWG	7	UL Style 1061	0.05 "	1.27 mm	Poly-Vinyl Chloride (PVC)	0.25 mm	0.01 in			Violet	Copper Tinned	Hook-Up	300 VDC	304.8 m	1000 ft
