342184 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K
CONN RING CIRC 10-12AWG M5 CRIMP
| Part | Terminal Type | Thickness | Thickness | Contact Finish | Features | Stud/Tab Size | Color | Contact Material | Length - Overall [x] | Length - Overall | Wire Gauge [Max] | Wire Gauge [Min] | Mounting Type | Material - Insulation | Insulation | Termination | Insulation Diameter [Min] | Insulation Diameter [Max] | Insulation Diameter [Min] | Insulation Diameter [Max] | Width - Outer Edges [y] | Width - Outer Edges [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

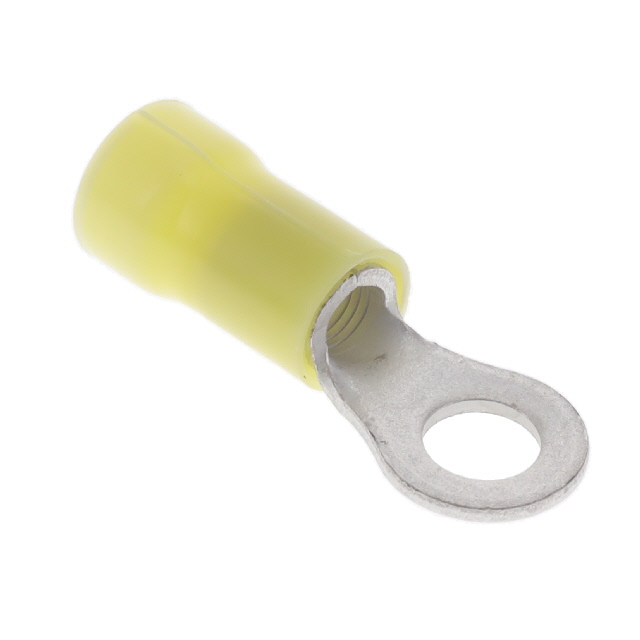

 TE Connectivity Raychem Cable Protection | Circular | 0.99 mm | 0.039 in | Tin | Serrated Termination | M5 Stud | Yellow | Copper | 1.098 " | 27.89 mm | 12 AWG | 10 AWG | Free Hanging (In-Line) | Poly-Vinyl Chloride (PVC) | Insulated | Crimp | 0.15 " | 6.4 mm | 3.81 mm | 0.252 " | 9.5 mm | 0.374 in |

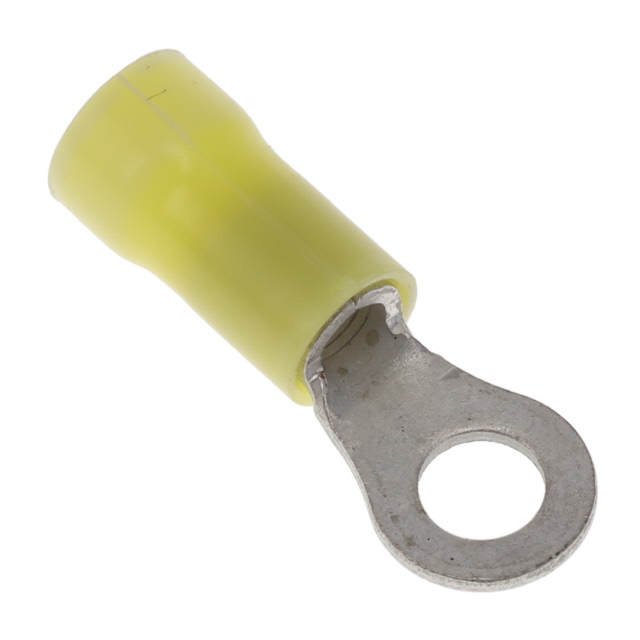

 TE Connectivity Raychem Cable Protection | Circular | 0.99 mm | 0.039 in | Tin | Serrated Termination | M5 Stud | Yellow | Copper | 1.098 " | 27.89 mm | 12 AWG | 10 AWG | Free Hanging (In-Line) | Poly-Vinyl Chloride (PVC) | Insulated | Crimp | 0.15 " | 6.4 mm | 3.81 mm | 0.252 " | 9.5 mm | 0.374 in |
