2823112 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

12P,2MM,BRK HDR,DRVT,2.8,SN,TB

Part	Contact Shape	Number of Positions Loaded	Contact Type	Row Spacing - Mating	Row Spacing - Mating	Termination	Number of Rows	Overall Contact Length	Overall Contact Length	Contact Finish - Post	Contact Length - Post [x]	Contact Length - Post [x]	Insulation Height	Insulation Height	Contact Material	Material Flammability Rating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Operating Temperature [Min]	Operating Temperature [Max]	Contact Length - Mating	Contact Length - Mating	Insulation Color	Shrouding	Fastening Type	Pitch - Mating [x]	Pitch - Mating [x]	Connector Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions	Voltage Rating	Current Rating (Amps)	Mounting Type	Insulation Material	Number of Positions

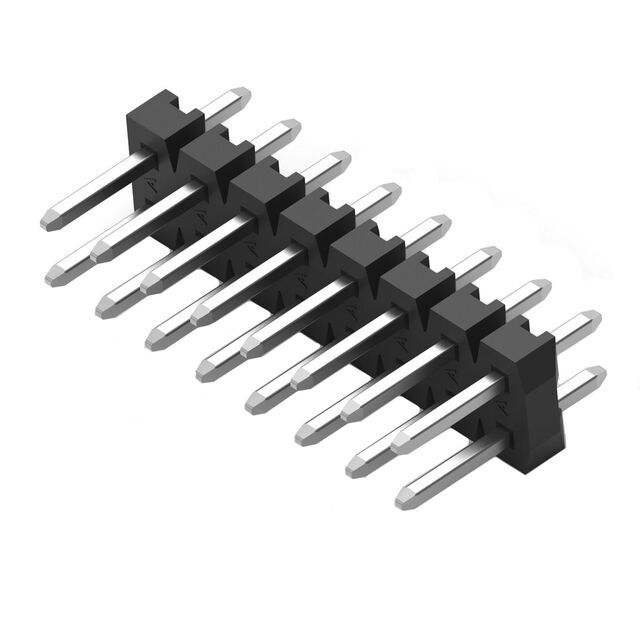

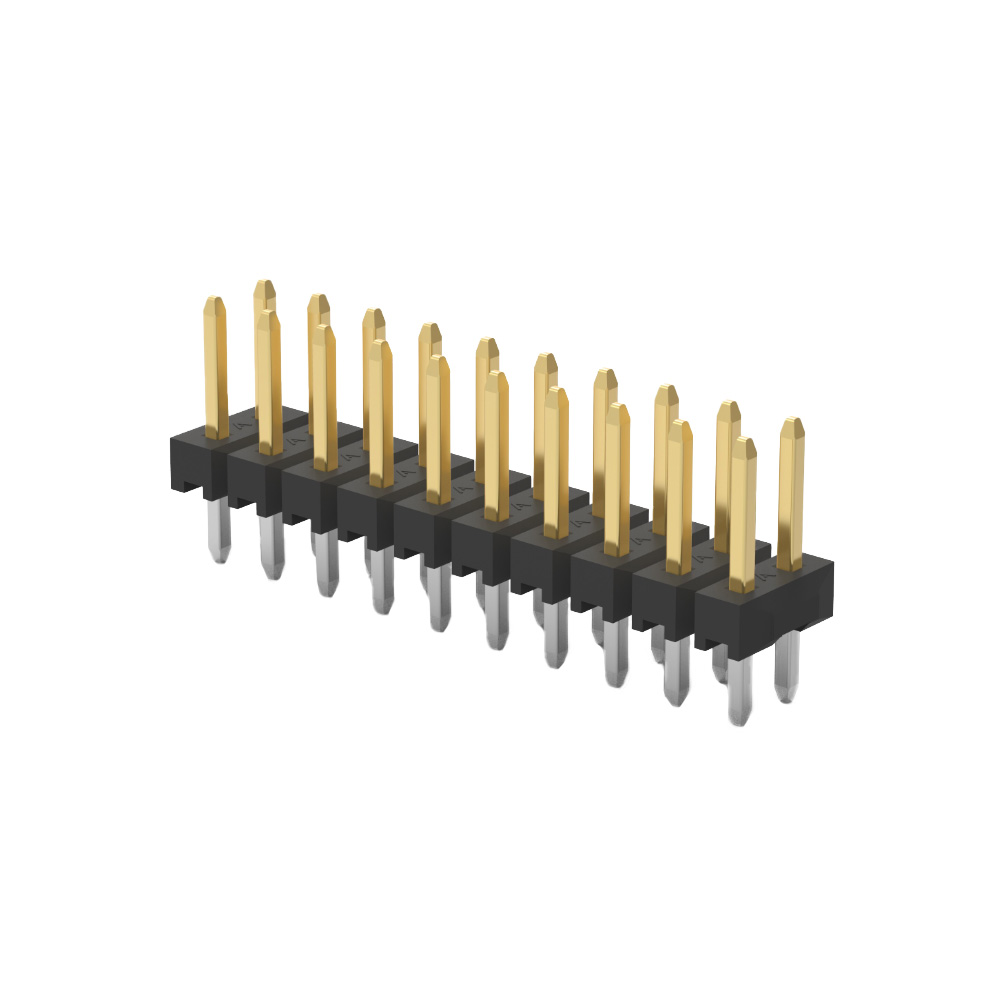

TE Connectivity Raychem Cable Protection 1-2823112-2	Square	All	Male Pin	0.079 in	2 mm	Solder	2	8.3 mm	0.327 in	Tin	0.11 in	2.8 mm	1.5 mm	0.059 "	Phosphor Bronze	UL94 V-0	0.3 µm	12 µin	-40 °C	105 ░C	4 mm	0.157 in	Black	Unshrouded	Push-Pull	0.079 in	2 mm	Breakaway Header	118.1 µin	3 µm	12	125 VAC	2 A	Through Hole	Thermoplastic

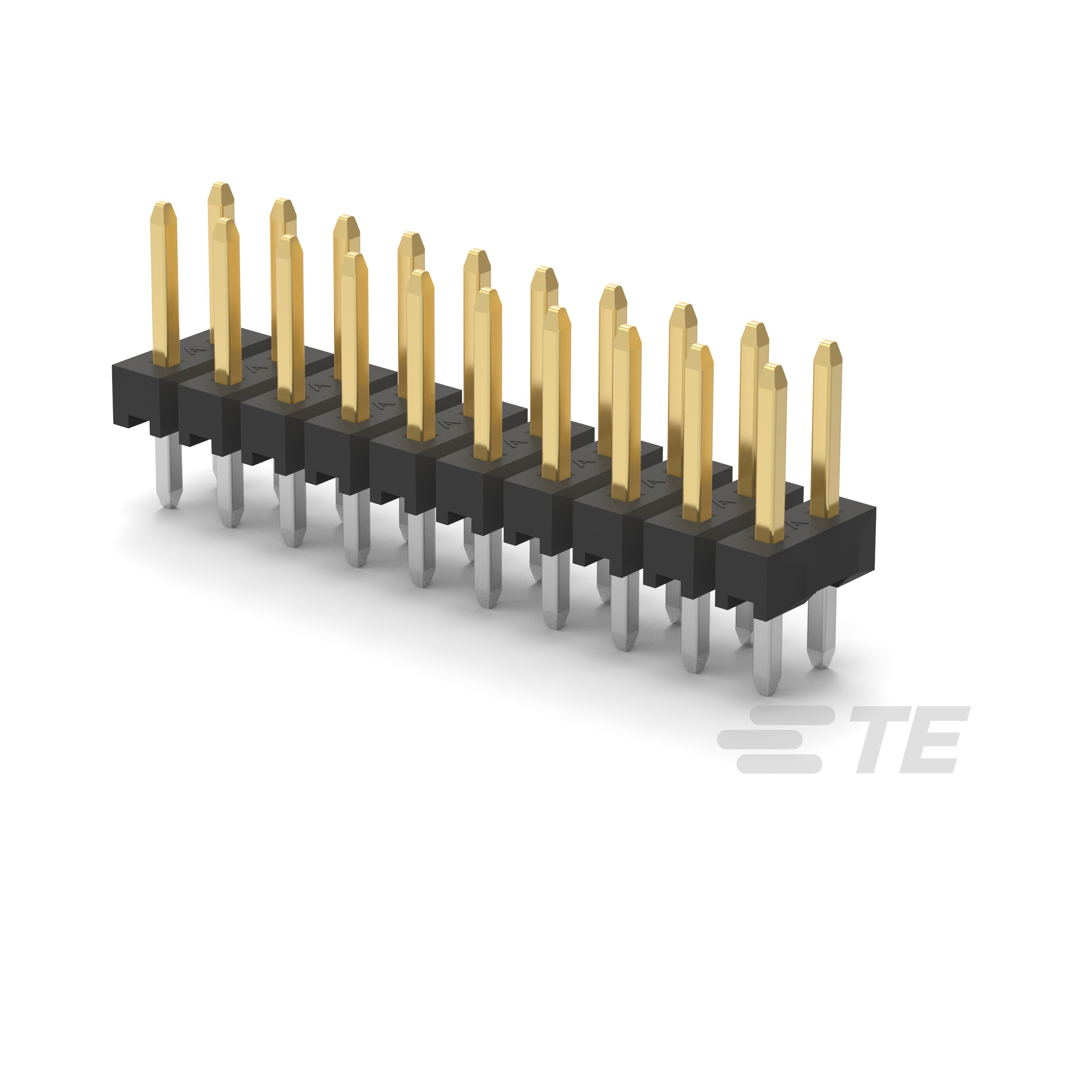

TE Connectivity Raychem Cable Protection 1-2823112-0	Square	All	Male Pin	0.079 in	2 mm	Solder	2	8.3 mm	0.327 in	Tin	0.11 in	2.8 mm	1.5 mm	0.059 "	Phosphor Bronze	UL94 V-0	0.3 µm	12 µin	-40 °C	105 ░C	4 mm	0.157 in	Black	Unshrouded	Push-Pull	0.079 in	2 mm	Breakaway Header	118.1 µin	3 µm	10	125 VAC	2 A	Through Hole	Thermoplastic

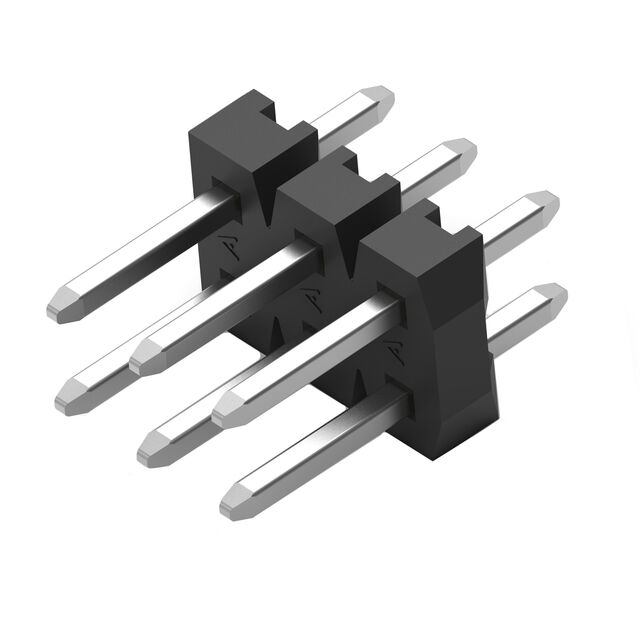

TE Connectivity Raychem Cable Protection 2823112-8	Square	All	Male Pin	0.079 in	2 mm	Solder	2	8.3 mm	0.327 in	Tin	0.11 in	2.8 mm	1.5 mm	0.059 "	Phosphor Bronze	UL94 V-0	0.3 µm	12 µin	-40 °C	105 ░C	4 mm	0.157 in	Black	Unshrouded	Push-Pull	0.079 in	2 mm	Breakaway Header	118.1 µin	3 µm	8	125 VAC	2 A	Through Hole	Thermoplastic
TE Connectivity Raychem Cable Protection 1-2823112-6	Square	All	Male Pin	0.079 in	2 mm	Solder	2	8.3 mm	0.327 in	Tin	0.11 in	2.8 mm	1.5 mm	0.059 "	Phosphor Bronze	UL94 V-0	0.3 µm	12 µin	-40 °C	105 ░C	4 mm	0.157 in	Black	Unshrouded	Push-Pull	0.079 in	2 mm	Breakaway Header	118.1 µin	3 µm		125 VAC	2 A	Through Hole	Thermoplastic	16

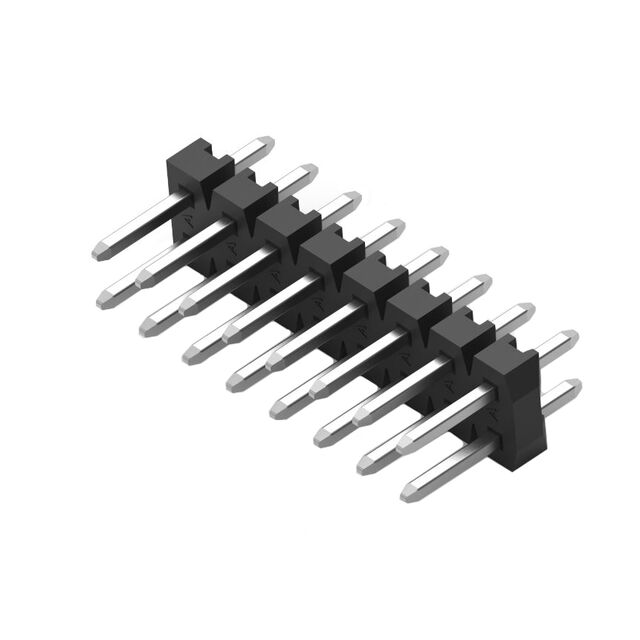

TE Connectivity Raychem Cable Protection 5-2823112-0	Square	All	Male Pin	0.079 in	2 mm	Solder	2	8.3 mm	0.327 in	Tin	0.11 in	2.8 mm	1.5 mm	0.059 "	Phosphor Bronze	UL94 V-0	0.3 µm	12 µin	-40 °C	105 ░C	4 mm	0.157 in	Black	Unshrouded	Push-Pull	0.079 in	2 mm	Breakaway Header	118.1 µin	3 µm	50	125 VAC	2 A	Through Hole	Thermoplastic

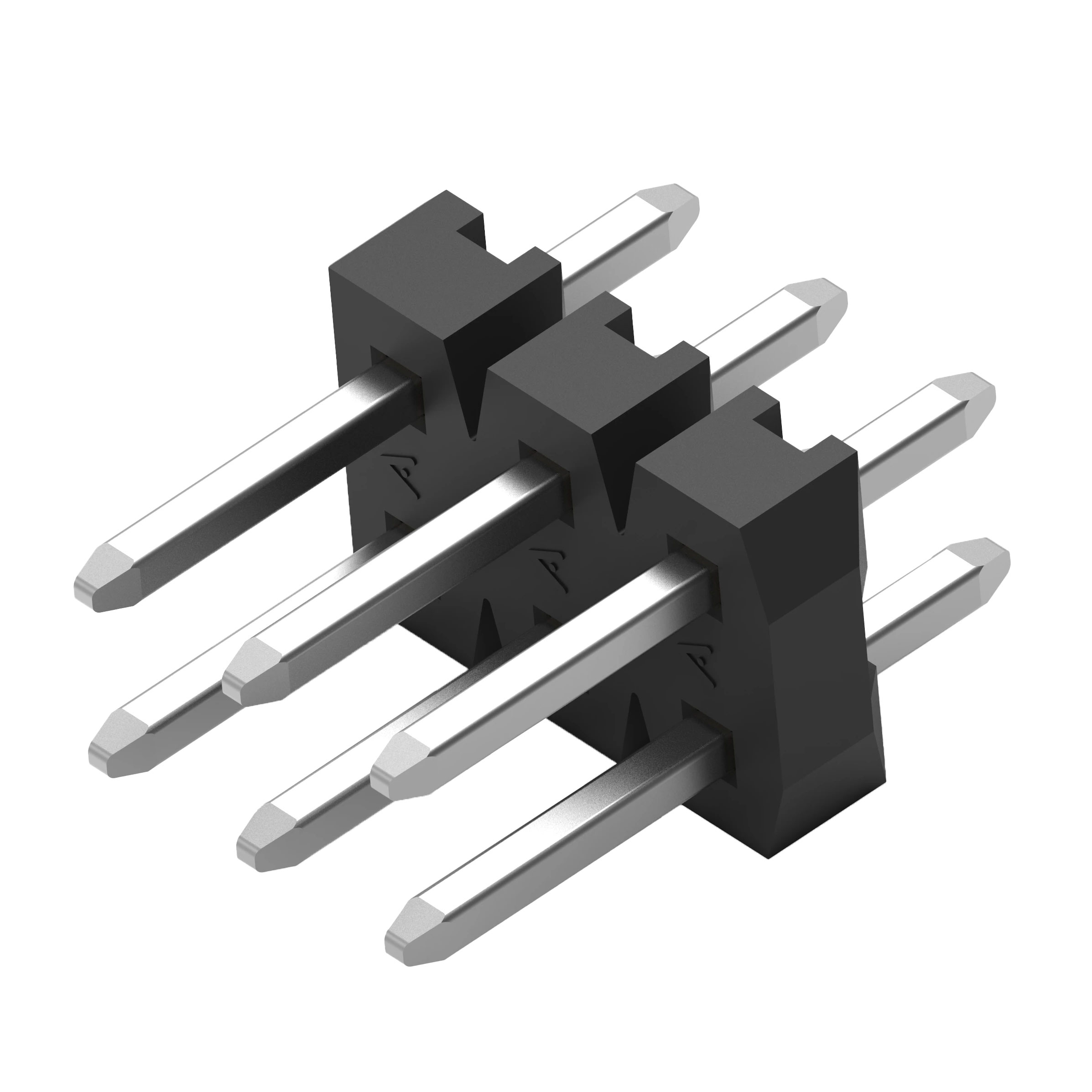

TE Connectivity Raychem Cable Protection 2823112-6	Square	All	Male Pin	0.079 in	2 mm	Solder	2	8.3 mm	0.327 in	Tin	0.11 in	2.8 mm	1.5 mm	0.059 "	Phosphor Bronze	UL94 V-0	0.3 µm	12 µin	-40 °C	105 ░C	4 mm	0.157 in	Black	Unshrouded	Push-Pull	0.079 in	2 mm	Breakaway Header	118.1 µin	3 µm	6	125 VAC	2 A	Through Hole	Thermoplastic
