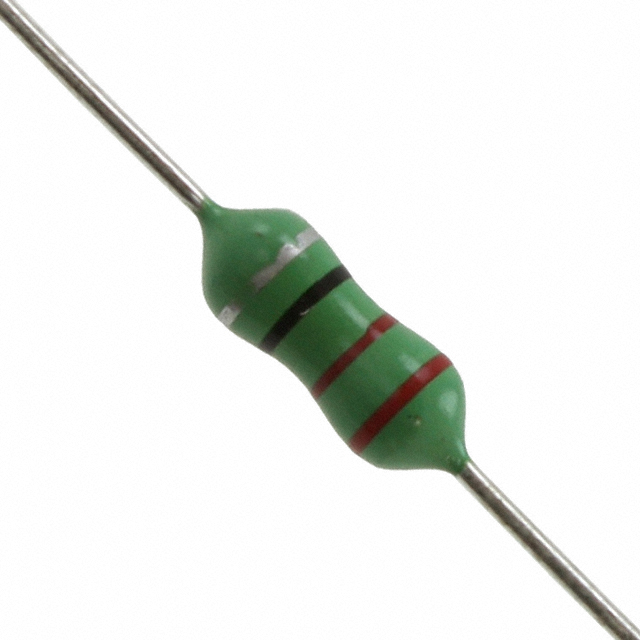

77F Series

Catalog

FIXED IND 1UH 920MA 170 MOHM TH

Part	DC Resistance (DCR) [Max]	Current Rating (Amps)	Material - Core	Q @ Freq	Tolerance	Type	Shielding	Size / Dimension [x]	Size / Dimension [diameter]	Inductance	Inductance Frequency - Test	Operating Temperature [Min]	Operating Temperature [Max]	Frequency - Self Resonant	Mounting Type	Package / Case	DC Resistance (DCR)	Q @ Freq [custom]	Q @ Freq [custom]
Bourns Inc. 77F1R0K-TR-RC	170 mOhm	920 mA	Ferrite	25.2 MHz 50	10 %	Drum Core Wirewound	Unshielded	0.41 " 10.41 mm	0.157 " 3.99 mm	1 µH	25.2 MHz	-55 C	105 ░C	157 MHz	Through Hole	Axial

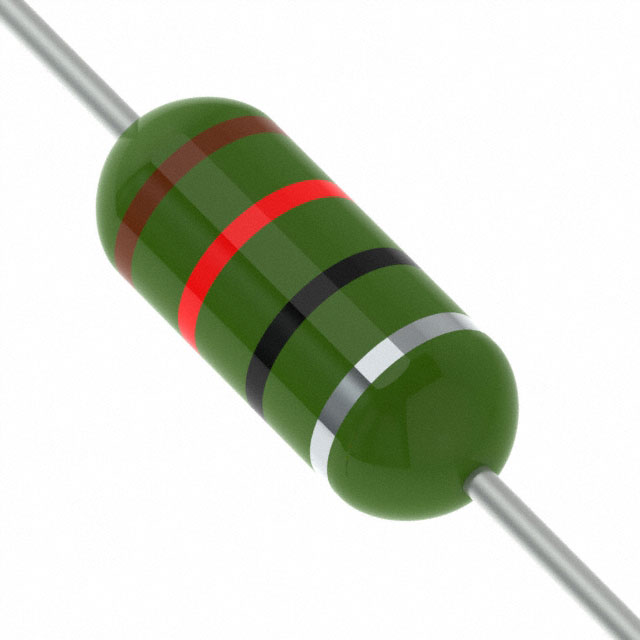

Bourns Inc. 77F120K-TR-RC		480 mA	Ferrite	2.52 MHz 75	10 %	Drum Core Wirewound	Unshielded	0.41 " 10.41 mm	0.157 " 3.99 mm	12 µH	2.52 MHz	-55 C	105 ░C	34 MHz	Through Hole	Axial	700 mOhm

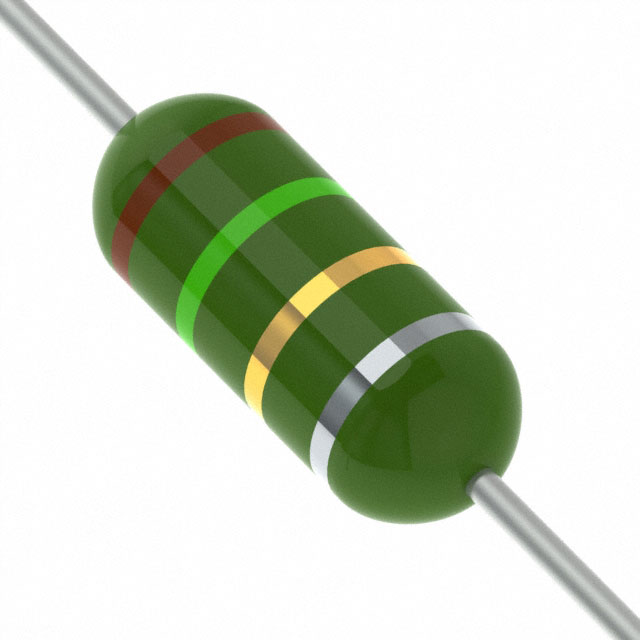

Bourns Inc. 77F1R5K-TR-RC		830 mA	Ferrite	7.96 MHz 50	10 %	Drum Core Wirewound	Unshielded	0.41 " 10.41 mm	0.157 " 3.99 mm	1.5 µH	7.96 MHz	-55 C	105 ░C	131 MHz	Through Hole	Axial	200 mOhm
Bourns Inc. 77F102J	14 Ohm	100 mA	Ferrite	50 796 kHz	5 %	Drum Core Wirewound	Unshielded	0.41 " 10.41 mm	0.157 " 3.99 mm	1 mH	0.796 MHz	-55 C	105 ░C	1.4 MHz	Through Hole	Axial

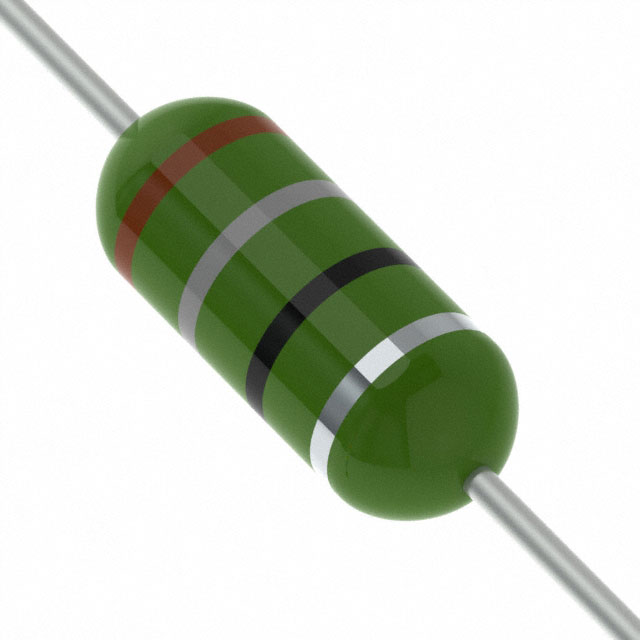

Bourns Inc. 77F180K-TR-RC	800 mOhm	430 mA	Ferrite	2.52 MHz 60	10 %	Drum Core Wirewound	Unshielded	0.41 " 10.41 mm	0.157 " 3.99 mm	18 µH	2.52 MHz	-55 C	105 ░C	14 MHz	Through Hole	Axial

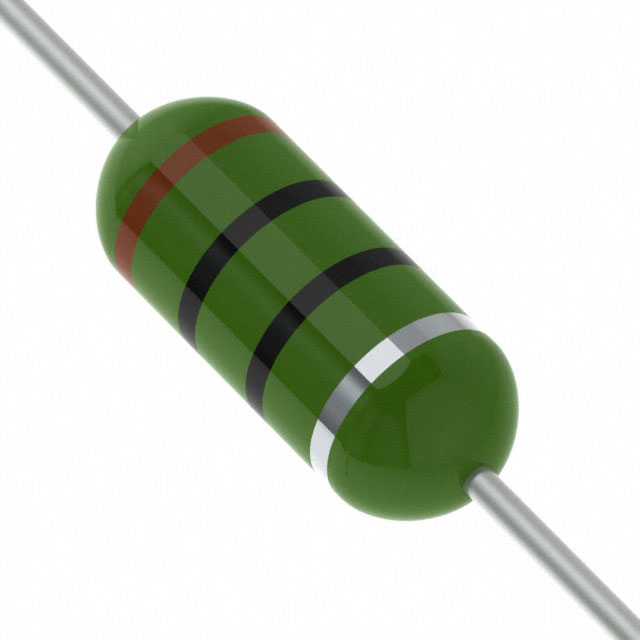

Bourns Inc. 77F100K	580 mOhm	0.5 A	Ferrite		10 %	Drum Core Wirewound	Unshielded	0.41 " 10.41 mm	0.157 " 3.99 mm	10 µH	2.52 MHz	-55 C	105 ░C	45 MHz	Through Hole	Axial		85	2.52 MHz
Bourns Inc. 77F101J	1.8 Ohm	275 mA	Ferrite	30 796 kHz	5 %	Drum Core Wirewound	Unshielded	0.41 " 10.41 mm	0.157 " 3.99 mm	100 µH	0.796 MHz	-55 C	105 ░C	4.8 MHz	Through Hole	Axial

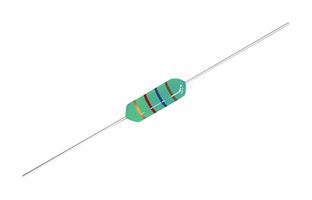

Bourns Inc. 77F470J-TR-RC	1.3 Ohm	0.34 A	Ferrite		5 %	Drum Core Wirewound	Unshielded	0.41 " 10.41 mm	0.157 " 3.99 mm	47 µH	2.52 MHz	-55 C	105 ░C	6.3 MHz	Through Hole	Axial		45	2.52 MHz
Bourns Inc. 77F271J-TR-RC	6 Ohm	0.145 A	Ferrite		5 %	Drum Core Wirewound	Unshielded	0.41 " 10.41 mm	0.157 " 3.99 mm	270 µH	0.796 MHz	-55 C	105 ░C	2.6 MHz	Through Hole	Axial		60	796 kHz
Bourns Inc. 77F151J-TR-RC	4 Ohm	175 mA	Ferrite		5 %	Drum Core Wirewound	Unshielded	0.41 " 10.41 mm	0.157 " 3.99 mm	150 µH	0.796 MHz	-55 C	105 ░C	3.5 MHz	Through Hole	Axial		60	796 kHz
