9157 Series
Manufacturer: Belden Inc.
Beta
⌘K

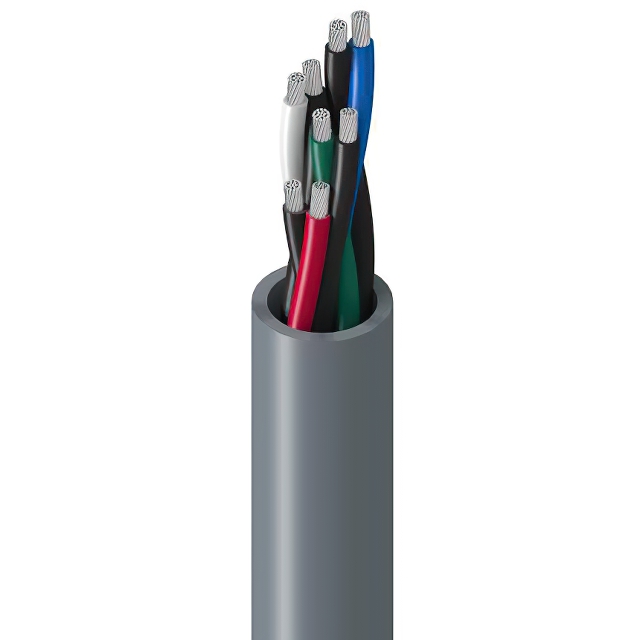

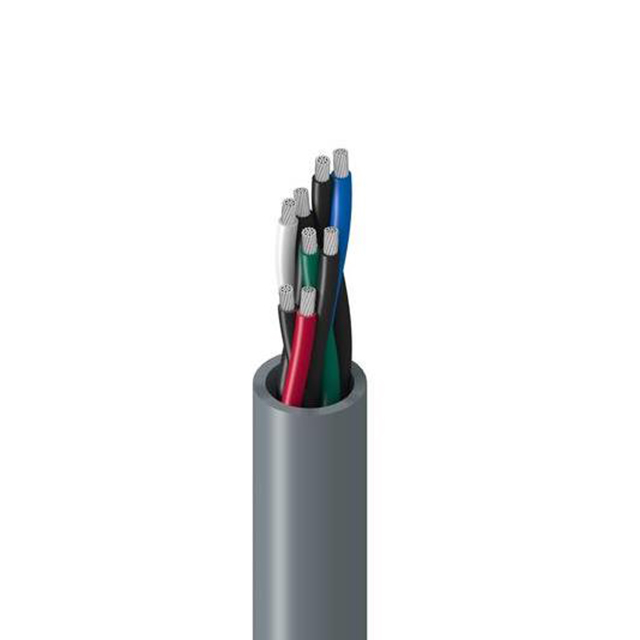

MULTI-PAIR 8COND 18AWG CHROME
| Part | Usage | Ratings | Operating Temperature [Max] | Operating Temperature [Min] | Number of Conductors | Conductor Strand [custom] | Conductor Strand [custom] | Conductor Material | Jacket (Insulation) Material | Length [x] | Length [x] | Cable Type | Jacket Color | Wire Gauge | Conductor Insulation | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Voltage | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Audio Control Instrumentation | UL Style 2464 | 80 °C | -20 ░C | 8 | 16 | 30 AWG | Copper Tinned | Poly-Vinyl Chloride (PVC) | 100 ft | 30.5 m | Multi-Pair | Chrome | 18 AWG | Poly-Vinyl Chloride (PVC) | 0.381 in | 9.68 mm | 0.813 mm | 0.032 in | 300 VDC | ||
 Belden Inc. | Audio Control Instrumentation | UL Style 2464 | 80 °C | -20 ░C | 8 | 16 | 30 AWG | Copper Tinned | Poly-Vinyl Chloride (PVC) | Multi-Pair | Chrome | 18 AWG | Poly-Vinyl Chloride (PVC) | 0.381 in | 9.68 mm | 0.813 mm | 0.032 in | 300 VDC | 304.8 m | 1000 ft |
