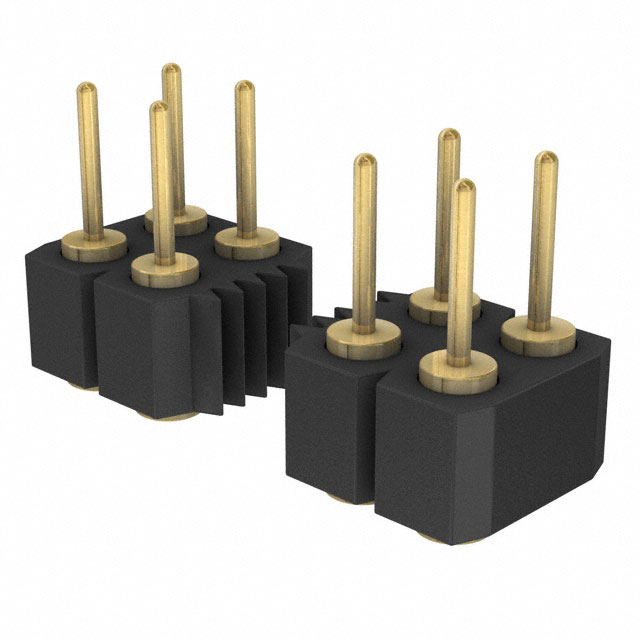

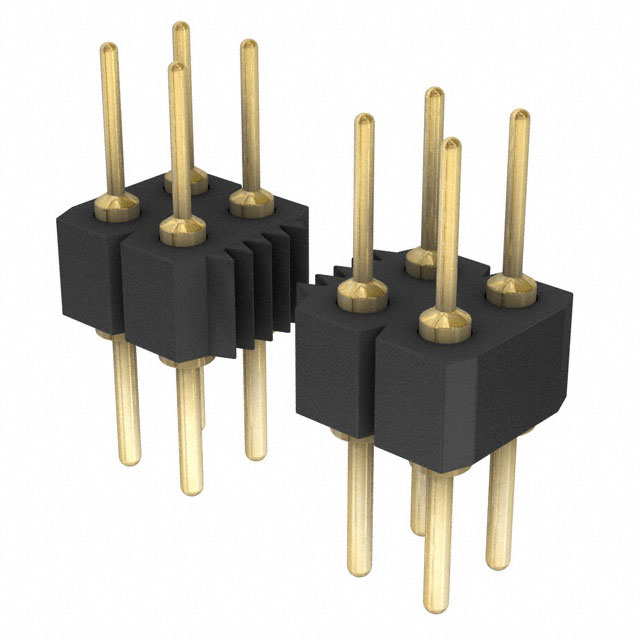

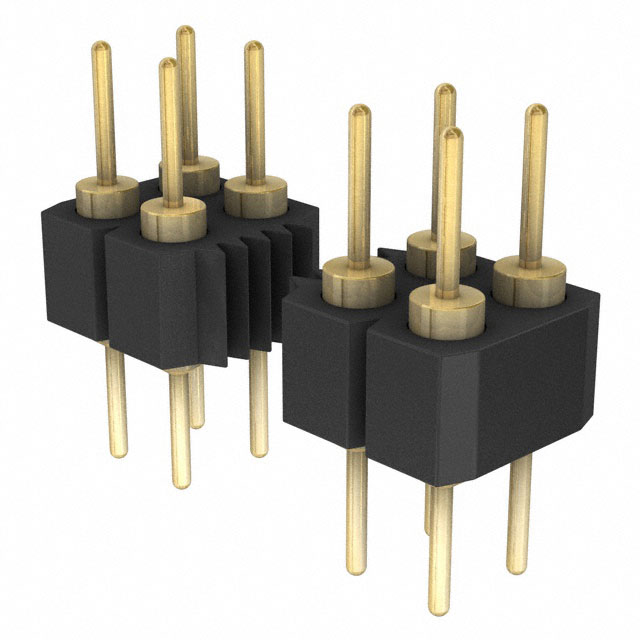

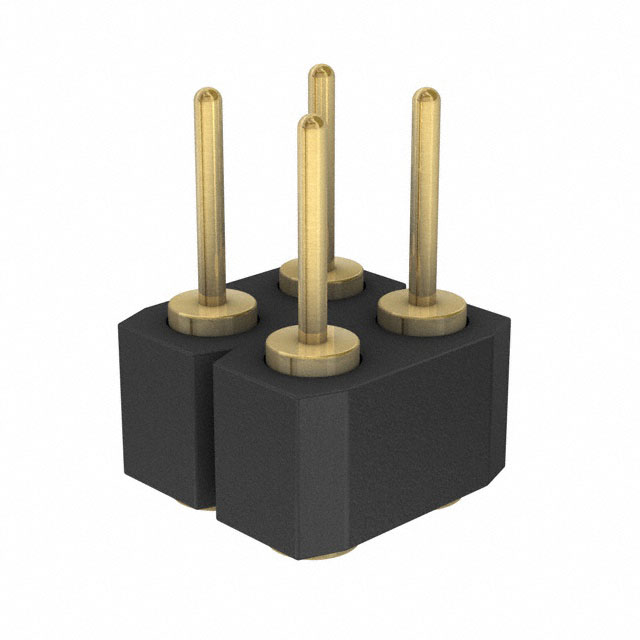

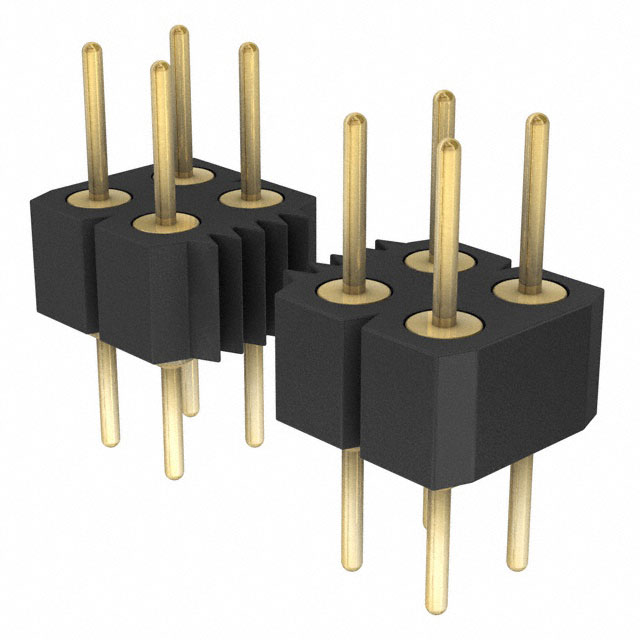

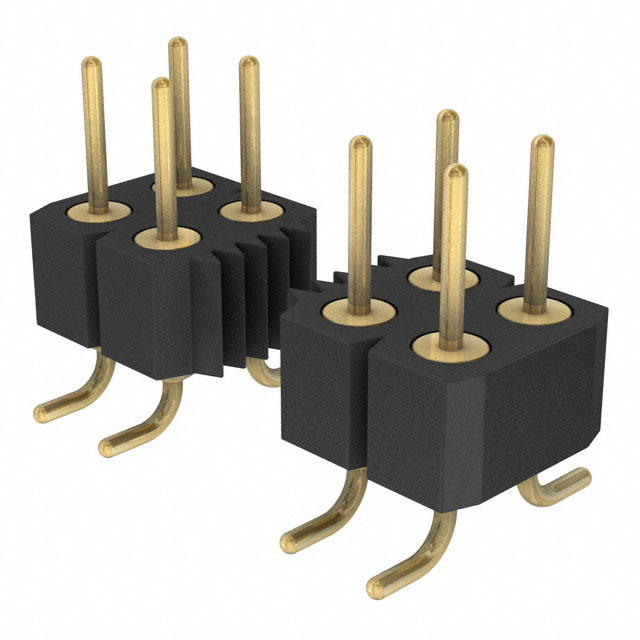

450-10 Series

Manufacturer: Preci-Dip

Catalog

Catalog

CONN HEADER VERT 68POS 2.54MM

...

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Fastening Type	Insulation Color	Contact Finish - Mating	Shrouding	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Overall Contact Length	Overall Contact Length	Mounting Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Length - Mating	Contact Length - Mating	Pitch - Mating	Pitch - Mating	Current Rating (Amps)	Termination	Number of Positions Loaded	Contact Material	Number of Positions	Contact Type	Number of Rows [custom]	Connector Type	Insulation Material	Contact Shape	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Contact Length - Post [x]	Contact Length - Post [x]	Contact Finish - Post	Material Flammability Rating	Overall Contact Length [x]	Overall Contact Length [x]	Contact Length - Mating [custom]	Contact Length - Mating [custom]	Contact Length - Post	Contact Length - Post	Features
Preci-Dip 450-10-268-00-006101	10 Áin	0.25 çm	Push-Pull	Black	Gold	Unshrouded	0.25 µm	10 µin	10 mm	0.394 in	Through Hole	0.1 in	2.54 mm	0.141 in	3.6 mm	0.1 "	2.54 mm	3 A	Solder	All	Brass	68 positions	Male Pin	2	Header	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	-55 C	125 °C	150 VDC	0.114 in	2.9 mm	Gold	UL94 V-0
Preci-Dip 450-10-264-00-001101	10 Áin	0.25 çm	Push-Pull	Black	Gold	Unshrouded	0.25 µm	10 µin			Through Hole	0.1 in	2.54 mm			0.1 "	2.54 mm	3 A	Solder	All	Brass	64	Male Pin	2	Header	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	-55 C	125 °C	150 VDC			Gold	UL94 V-0	0.477 in	12.12 mm	0.156 in	3.96 mm	0.164 in	4.17 mm
Preci-Dip 450-10-214-00-013101	10 Áin	0.25 çm	Push-Pull	Black	Gold	Unshrouded	0.25 µm	10 µin	10.57 mm	0.416 in	Through Hole	0.1 in	2.54 mm	0.134 in	3.39 mm	0.1 "	2.54 mm	3 A	Solder	All	Brass	14	Male Pin	2	Header	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	-55 C	125 °C	150 VDC			Gold	UL94 V-0					0.121 in	3.08 mm
Preci-Dip 450-10-246-00-106101	10 Áin	0.25 çm	Push-Pull	Black	Gold	Unshrouded	0.25 µm	10 µin			Surface Mount	0.1 in	2.54 mm	0.141 in	3.6 mm	0.1 "	2.54 mm	3 A	Solder	All	Brass	46	Male Pin	2	Header	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	-55 C	125 °C	150 VDC			Gold	UL94 V-0
Preci-Dip 450-10-262-00-106101	10 Áin	0.25 çm	Push-Pull	Black	Gold	Unshrouded	0.25 µm	10 µin			Surface Mount	0.1 in	2.54 mm	0.141 in	3.6 mm	0.1 "	2.54 mm	3 A	Solder	All	Brass	62	Male Pin	2	Header	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	-55 C	125 °C	150 VDC			Gold	UL94 V-0
Preci-Dip 450-10-238-00-013101	10 Áin	0.25 çm	Push-Pull	Black	Gold	Unshrouded	0.25 µm	10 µin	10.57 mm	0.416 in	Through Hole	0.1 in	2.54 mm	0.134 in	3.39 mm	0.1 "	2.54 mm	3 A	Solder	All	Brass	38	Male Pin	2	Header	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	-55 C	125 °C	150 VDC			Gold	UL94 V-0					0.121 in	3.08 mm
Preci-Dip 450-10-260-01-899101	10 Áin	0.25 çm	Push-Pull	Black	Gold	Unshrouded	0.25 µm	10 µin			Surface Mount	0.1 in	2.54 mm	0.141 in	3.6 mm	0.1 "	2.54 mm	3 A	Solder	All	Brass	60	Male Pin	2	Header	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	-55 C	125 °C	150 VDC			Gold	UL94 V-0
Preci-Dip 450-10-208-01-899191	10 Áin	0.25 çm	Push-Pull	Black	Gold	Unshrouded	0.25 µm	10 µin			Surface Mount	0.1 in	2.54 mm	0.141 in	3.6 mm	0.1 "	2.54 mm	3 A	Solder	All	Brass	8	Male Pin	2	Header	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	-55 C	125 °C	150 VDC			Gold	UL94 V-0							Pick and Place
Preci-Dip 450-10-270-00-013101	10 Áin	0.25 çm	Push-Pull	Black	Gold	Unshrouded	0.25 µm	10 µin	10.57 mm	0.416 in	Through Hole	0.1 in	2.54 mm	0.134 in	3.39 mm	0.1 "	2.54 mm	3 A	Solder	All	Brass	70	Male Pin	2	Header	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	-55 C	125 °C	150 VDC			Gold	UL94 V-0					0.121 in	3.08 mm
Preci-Dip 450-10-204-01-899101	10 Áin	0.25 çm	Push-Pull	Black	Gold	Unshrouded	0.25 µm	10 µin			Surface Mount	0.1 in	2.54 mm	0.141 in	3.6 mm	0.1 "	2.54 mm	3 A	Solder	All	Brass	4	Male Pin	2	Header	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	-55 C	125 °C	150 VDC			Gold	UL94 V-0
