09320463 Series
Manufacturer: HARTING
Beta
⌘K

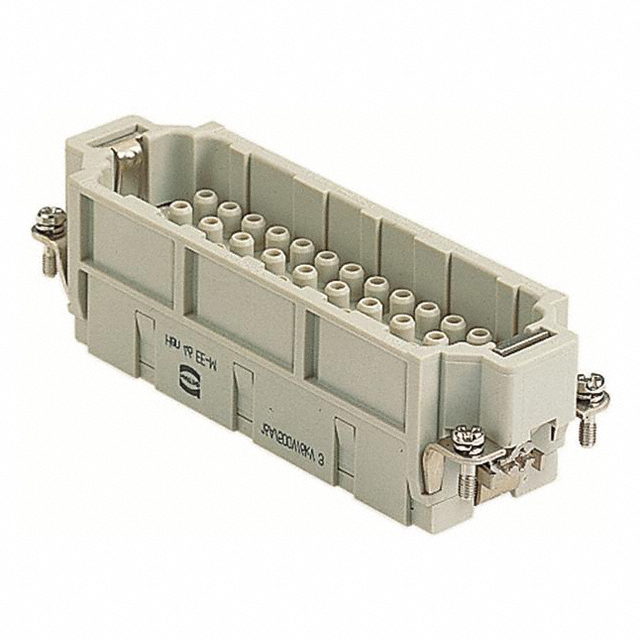

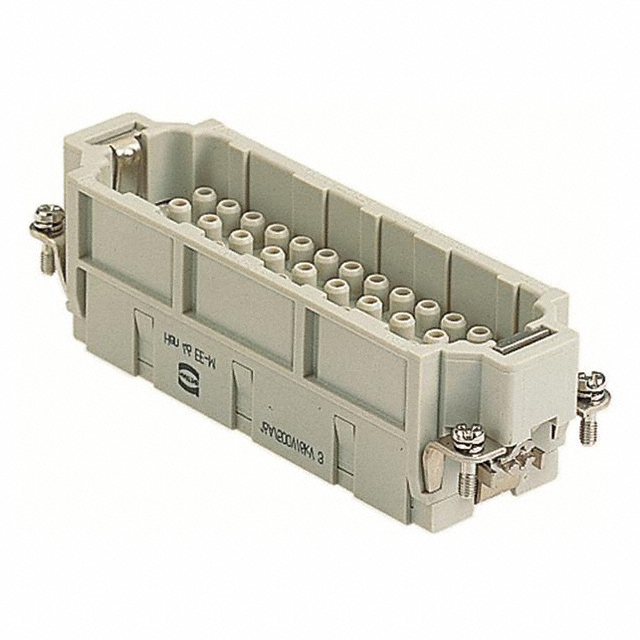

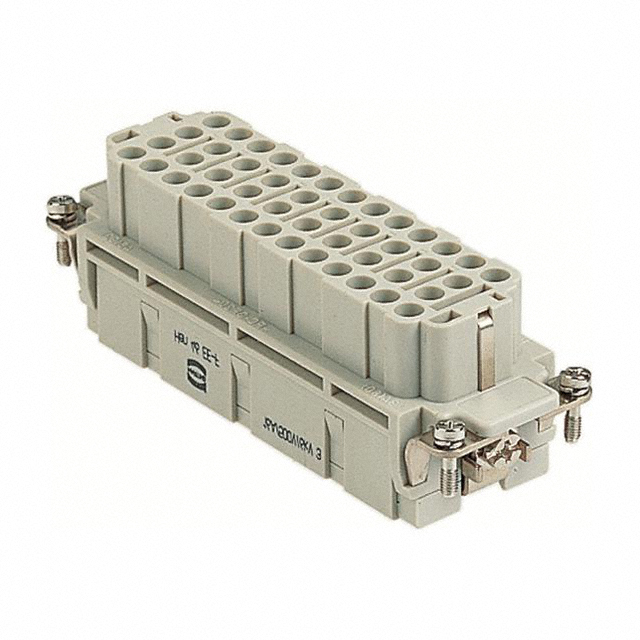

HAN EE 46 FEMALE CRIMP TERM. WITH FIXING ROHS COMPLIANT: NA
| Part | Termination Style | Connector Type | Number of Positions | Gender | Color | Material Flammability Rating | Housing Material | Voltage Rating | Size | Operating Temperature [Max] | Operating Temperature [Min] | Current Rating (Amps) | Contact Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 HARTING | Crimp | Insert without Contacts | 46 | Female | |||||||||
 HARTING | Crimp | Insert without Contacts | 46 | Male | Gray | UL94 V-0 | Polycarbonate (PC) | 600 V | 48 B | 125 °C | -40 C | 16 A | Han® |
 HARTING | Crimp | Insert without Contacts | 46 | Female | Gray | UL94 V-0 | Polycarbonate (PC) | 600 V | 24 B | 125 °C | -40 C | 16 A | Han® |
 HARTING | Crimp | Insert without Contacts | 46 | Female | Gray | UL94 V-0 | Polycarbonate (PC) | 600 V | 48 B | 125 °C | -40 C | 16 A | Han® |
 HARTING | Crimp | Insert without Contacts | 46 | Male | Gray | UL94 V-0 | Polycarbonate (PC) | 600 V | 24 B | 125 °C | -40 C | 16 A | Han® |
HARTING | Crimp | Insert without Contacts | 46 | Male |
