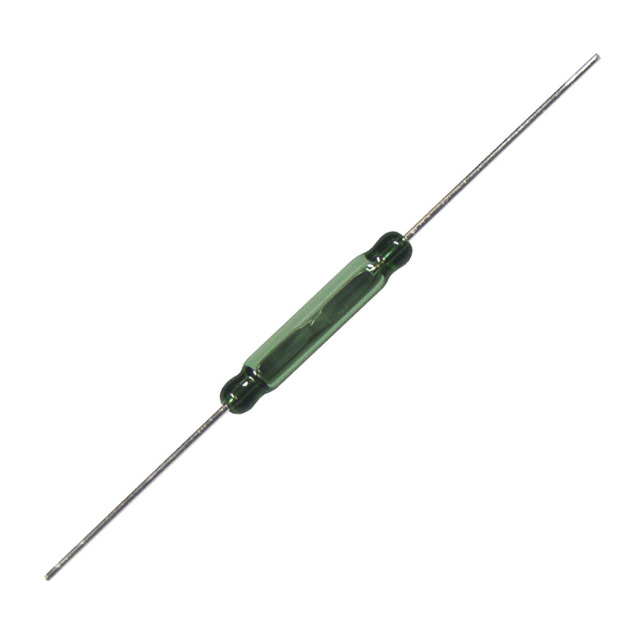

RI-26GP Series

Catalog

SWITCH REED SPST-NO 1A 140V

Part	Operate Time	Release Range [Max]	Release Range [Min]	Power - Rated	Circuit	Voltage - Switching DC	Capacitance	Mounting Type	Termination Style	Size - Body [x]	Size - Body [diameter]	Size - Body [x]	Size - Body [diameter]	Operate Range [Max]	Operate Range [Min]	Release Time	Operating Temperature [Min]	Operating Temperature [Max]	Length - Overall [x]	Length - Overall [x]	Current - Switching	Current - Carry	Voltage - Switching AC [custom]	Type	Operate Range [Max]
Comus International RI-26GP-1520	0.3 ms	16 AT	12	15 W	SPST-NO	200 V	0.3 pF	Surface Mount	Axial	0.57 "	0.1 "	14.5 mm	2.54 mm	20 AT	15 AT	0.03 ms	-55 C	125 °C	1.811 in	46 mm	1 A	1.25 A	140 V	Glass Body Reed
Comus International RI-26GP-2025	0.3 ms	18.75 AT	15	15 W	SPST-NO	200 V	0.25 pF	Surface Mount	Axial	0.57 "	0.1 "	14.5 mm	2.54 mm		20	0.03 ms	-55 C	125 °C	1.811 in	46 mm	1 A	1.5 A	140 V	Glass Body Reed	25AT
