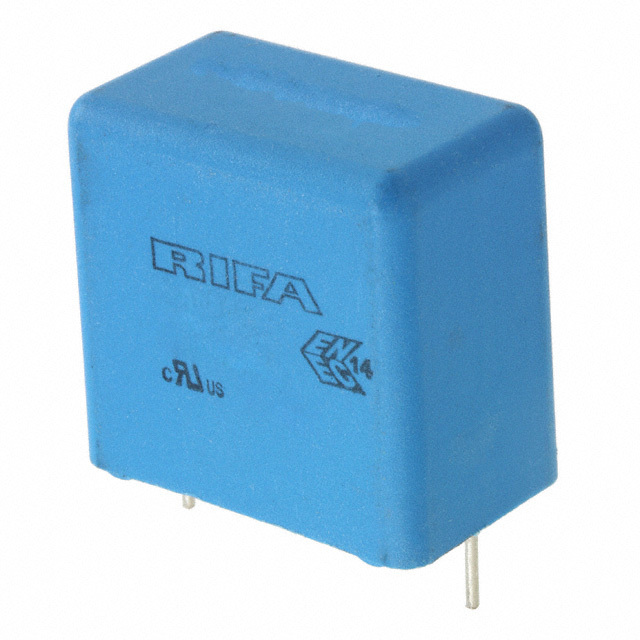

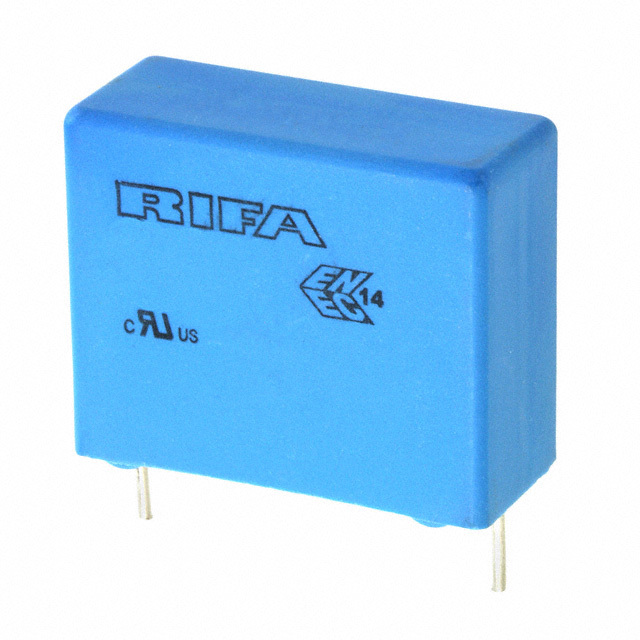

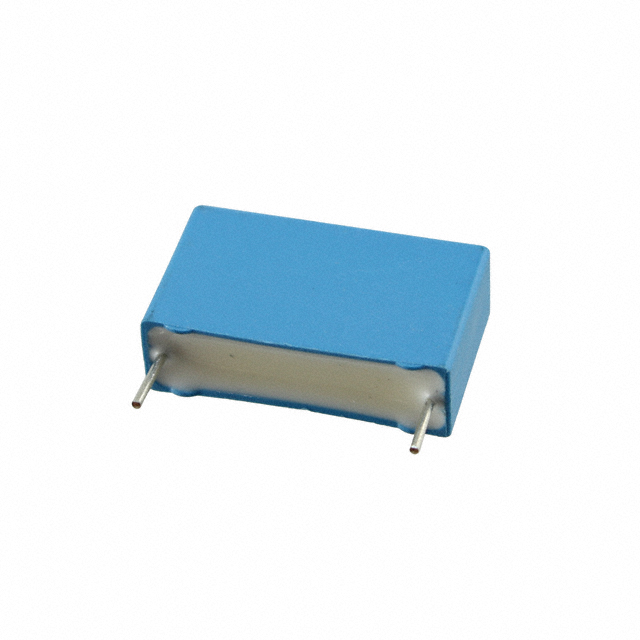

PHE844 Series

Manufacturer: KEMET

Catalog

CAP FILM 0.47UF 20% 1KVDC RADIAL

Part	Tolerance	Capacitance	Voltage Rating - DC	Voltage Rating - DC	Ratings	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Mounting Type	Dielectric Material	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Voltage Rating - AC	Applications	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Package / Case	Lead Spacing	Lead Spacing	Size / Dimension [y]	Size / Dimension [x]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
KEMET PHE844RD6470MR06L2	20 %	0.47 µF	1 kV	1 kVDC	X1	26 mm	15.5 mm	0.61 "	1.024 in	Through Hole	Polypropylene (PP) Metallized	-40 C	105 ░C	PC Pins	440 V	EMI RFI Suppression	24.5 mm	0.965 in	Radial	0.886 in	22.5 mm
KEMET PHE844RD6220MR30L2	20 %	0.22 µF	1 kV	1 kVDC	X1			11 mm	26 mm	Through Hole	Polypropylene (PP) Metallized	-40 C	105 ░C	PC Pins	480 V	EMI RFI Suppression	21.5 mm	0.846 "	Radial	0.886 in	22.5 mm	0.433 in	1.024 in
KEMET PHE844RD6220KR06L2	10 %	0.22 µF	1 kV	1 kVDC	X1			11 mm	26 mm	Through Hole	Polypropylene (PP) Metallized	-40 C	105 ░C	PC Pins	440 V	EMI RFI Suppression	21.5 mm	0.846 "	Radial	0.886 in	22.5 mm	0.433 in	1.024 in
KEMET PHE844RD6100MR06L2	20 %	100000 pF	1 kV	1 kVDC	X1			8 mm	26 mm	Through Hole	Polypropylene (PP) Metallized	-40 C	105 ░C	PC Pins	440 V	EMI RFI Suppression			Radial	0.886 in	22.5 mm	0.315 in	1.024 in	16 mm	0.63 in
KEMET PHE844RD6150MR06L2	20 %	0.15 ÁF	1 kV	1 kVDC	X1			9 mm	26 mm	Through Hole	Polypropylene (PP) Metallized	-40 C	105 ░C	PC Pins	440 V	EMI RFI Suppression	18.5 mm	0.728 in	Radial	0.886 in	22.5 mm	0.354 in	1.024 in
KEMET PHE844RF6680MR06L2	20 %	0.68 µF	1 kV	1 kVDC	X1			17.5 mm	31.5 mm	Through Hole	Polypropylene (PP) Metallized	-40 C	105 ░C	PC Pins	440 V	EMI RFI Suppression			Radial	1.083 in	27.5 mm	0.689 in	1.24 in	28 mm	1.102 in
KEMET PHE844RD6100MR30L2	20 %	100000 pF	1 kV	1 kVDC	X1			8 mm	26 mm	Through Hole	Polypropylene (PP) Metallized	-40 C	105 ░C	PC Pins	480 V	EMI RFI Suppression			Radial	0.886 in	22.5 mm	0.315 in	1.024 in	16 mm	0.63 in
