D4S20Y Series
Manufacturer: Rosenberger
Beta
⌘K
CONN HSD FAKRA PLUG R/A 100OHM
| Part | Mating Cycles | Operating Temperature [Min] | Operating Temperature [Max] | Body Finish | Dielectric Material | Body Material | Center Contact Plating | Voltage Rating | Center Contact Material | Impedance | Housing Color | Number of Ports | Features | Connector Type | Fastening Type | Mounting Type | Contact Termination | Shield Termination | Frequency - Max [Max] | Connector Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

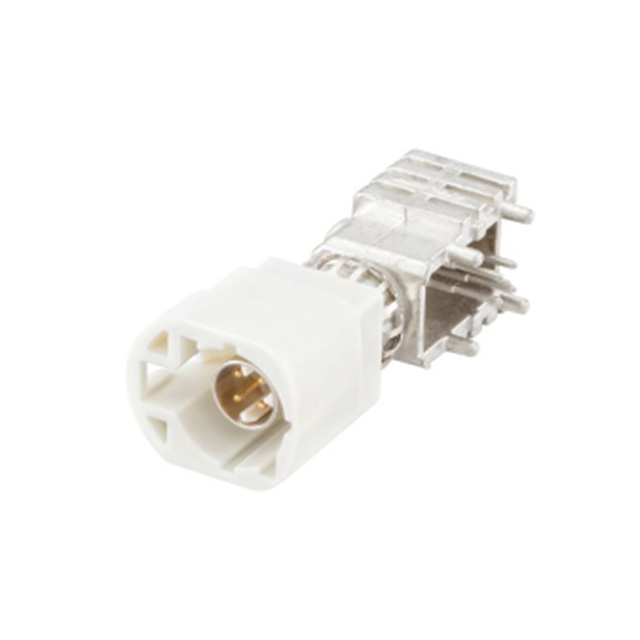

 Rosenberger | 25 | -40 C | 105 ░C | Nickel | Liquid Crystal Polymer (LCP) | Brass | Gold | 100 V | Bronze | 100 Ohms | White | 1 | Code B | Plug Male Pin | Latch Lock | Right Angle Through Hole | Solder | Solder | 2 GHz | Fakra HSD® Quadraxial |

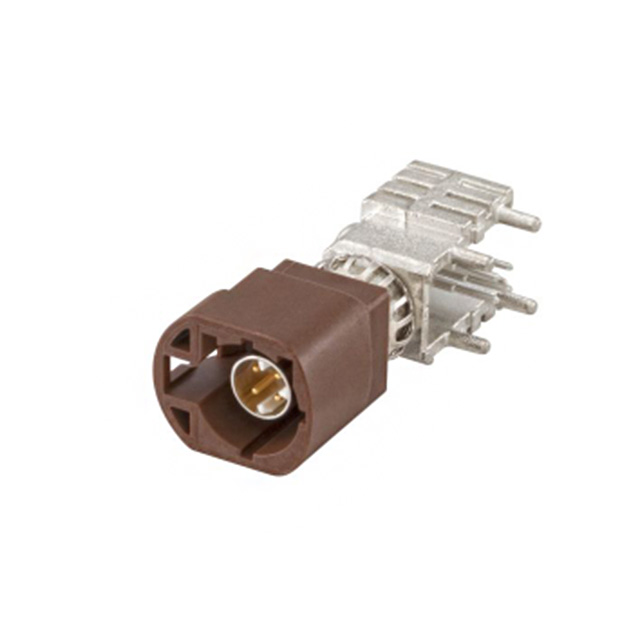

 Rosenberger | 25 | -40 C | 105 ░C | Nickel | Liquid Crystal Polymer (LCP) | Brass | Gold | 100 V | Bronze | 100 Ohms | Brown | 1 | Code F | Plug Male Pin | Latch Lock | Right Angle Through Hole | Solder | Solder | 2 GHz | Fakra HSD® Quadraxial |
 Rosenberger | 25 | -40 C | 105 ░C | Nickel | Liquid Crystal Polymer (LCP) | Brass | Gold | 100 V | Bronze | 100 Ohms | White | 1 | Code B | Plug Male Pin | Latch Lock | Right Angle Through Hole | Solder | Solder | 2 GHz | Fakra HSD® Quadraxial |

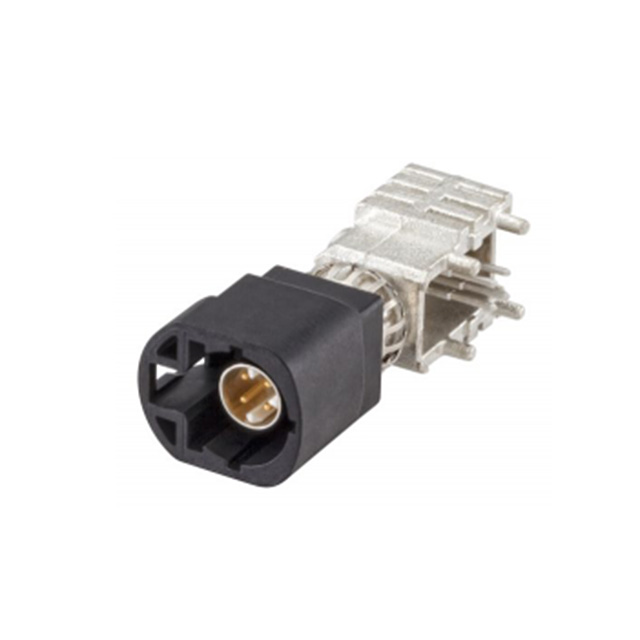

 Rosenberger | 25 | -40 C | 105 ░C | Nickel | Liquid Crystal Polymer (LCP) | Brass | Gold | 100 V | Bronze | 100 Ohms | Black | 1 | Code A | Plug Male Pin | Latch Lock | Right Angle Through Hole | Solder | Solder | 2 GHz | Fakra HSD® Quadraxial |
