1617033 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

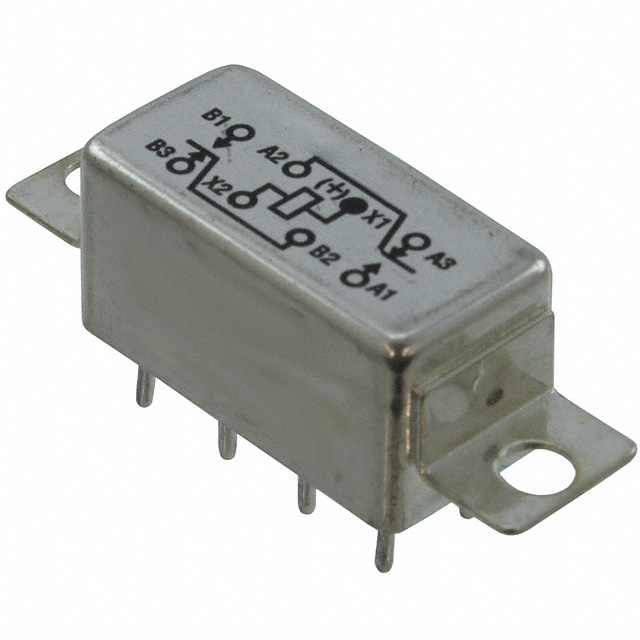

RELAY GENERAL PURPOSE DPDT 2A 5V
| Part | Coil Resistance | Operating Temperature [Min] | Operating Temperature [Max] | Relay Type | Load - Max Switching | Coil Voltage | Release Time | Operate Time | Coil Type | Contact Rating (Current) | Must Operate Voltage | Mounting Type | Must Release Voltage | Termination Style | Contact Material | Switching Voltage [Max] | Contact Form | Coil Current | Seal Rating | Qualification | Grade | Switching Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 27 Ohms | -65 ░C | 125 °C | General Purpose | 56 W 230 VA | 5 VDC | 4 ms | 4 ms | Non Latching | 2 A | 2.7 VDC | Through Hole | 0.29 VDC | PC Pin | Gold (Au) Silver (Ag) | 28 VDC 115 VAC | DPDT (2 Form C) | 185.2 mA | Sealed - Hermetically | |||
 TE Connectivity AMP Connectors | 700 Ohms | -65 ░C | 125 °C | General Purpose | 26.5 VDC | 4 ms | 4 ms | Non Latching | 2 A | 13.5 VDC | Chassis Mount | 1.5 VDC | PC Pin | Gold (Au) Silver (Ag) | 28 VDC 115 VAC | DPDT (2 Form C) | 37.9 mA | Sealed - Hermetically | ||||
TE Connectivity AMP Connectors | 700 Ohms | -65 ░C | 125 °C | General Purpose | 26.5 VDC | 4 ms | 4 ms | Non Latching | 2 A | 13.5 VDC | Chassis Mount | 1.5 VDC | PC Pin | Gold (Au) Silver (Ag) | DPDT (2 Form C) | 37.9 mA | Sealed - Hermetically | |||||
TE Connectivity AMP Connectors | 700 Ohms | -65 ░C | 125 °C | General Purpose | 26.5 VDC | 4 ms | 4 ms | Non Latching | 2 A | 13.5 VDC | Chassis Mount | 1.5 VDC | PC Pin | Gold (Au) Silver (Ag) | DPDT (2 Form C) | 37.9 mA | Sealed - Hermetically | |||||
 TE Connectivity AMP Connectors | 700 Ohms | -65 ░C | 125 °C | General Purpose | 26.5 VDC | 4 ms | 4 ms | Non Latching | 2 A | 13.5 VDC | Chassis Mount | 1.5 VDC | PC Pin | DPDT (2 Form C) | 37.9 mA | Sealed - Hermetically | MIL-R-39016/6 | Military | 28 VDC | |||
TE Connectivity AMP Connectors | 700 Ohms | -65 ░C | 125 °C | General Purpose | 56 W 230 VA | 26.5 VDC | 4 ms | 4 ms | Non Latching | 2 A | 13.5 VDC | Chassis Mount | 1.5 VDC | PC Pin | Gold (Au) Silver (Ag) | 28 VDC 115 VAC | DPDT (2 Form C) | 37.9 mA | Sealed - Hermetically | |||
 TE Connectivity AMP Connectors | 700 Ohms | -65 ░C | 125 °C | General Purpose | 26.5 VDC | 4 ms | 4 ms | Non Latching | 2 A | 13.5 VDC | Chassis Mount | 1.5 VDC | PC Pin | Gold (Au) Silver (Ag) | 28 VDC 115 VAC | DPDT (2 Form C) | 37.9 mA | Sealed - Hermetically | ||||
TE Connectivity AMP Connectors | 700 Ohms | -65 ░C | 125 °C | General Purpose | 26.5 VDC | 4 ms | 4 ms | Non Latching | 2 A | 13.5 VDC | Chassis Mount | 1.5 VDC | PC Pin | Gold (Au) Silver (Ag) | DPDT (2 Form C) | 37.9 mA | Sealed - Hermetically | |||||
 TE Connectivity AMP Connectors | 700 Ohms | -65 ░C | 125 °C | General Purpose | 26.5 VDC | 4 ms | 4 ms | Non Latching | 2 A | 13.5 VDC | Chassis Mount | 1.5 VDC | PC Pin | DPDT (2 Form C) | 37.9 mA | Sealed - Hermetically | MIL-R-39016/6 | Military | 28 VDC | |||
TE Connectivity AMP Connectors | -65 ░C | 125 °C | General Purpose | 56 W 230 VA | 4 ms | 4 ms | Non Latching | 2 A | Through Hole | PC Pin | Gold (Au) Silver (Ag) | 28 VDC 115 VAC | DPDT (2 Form C) | Sealed - Hermetically |
