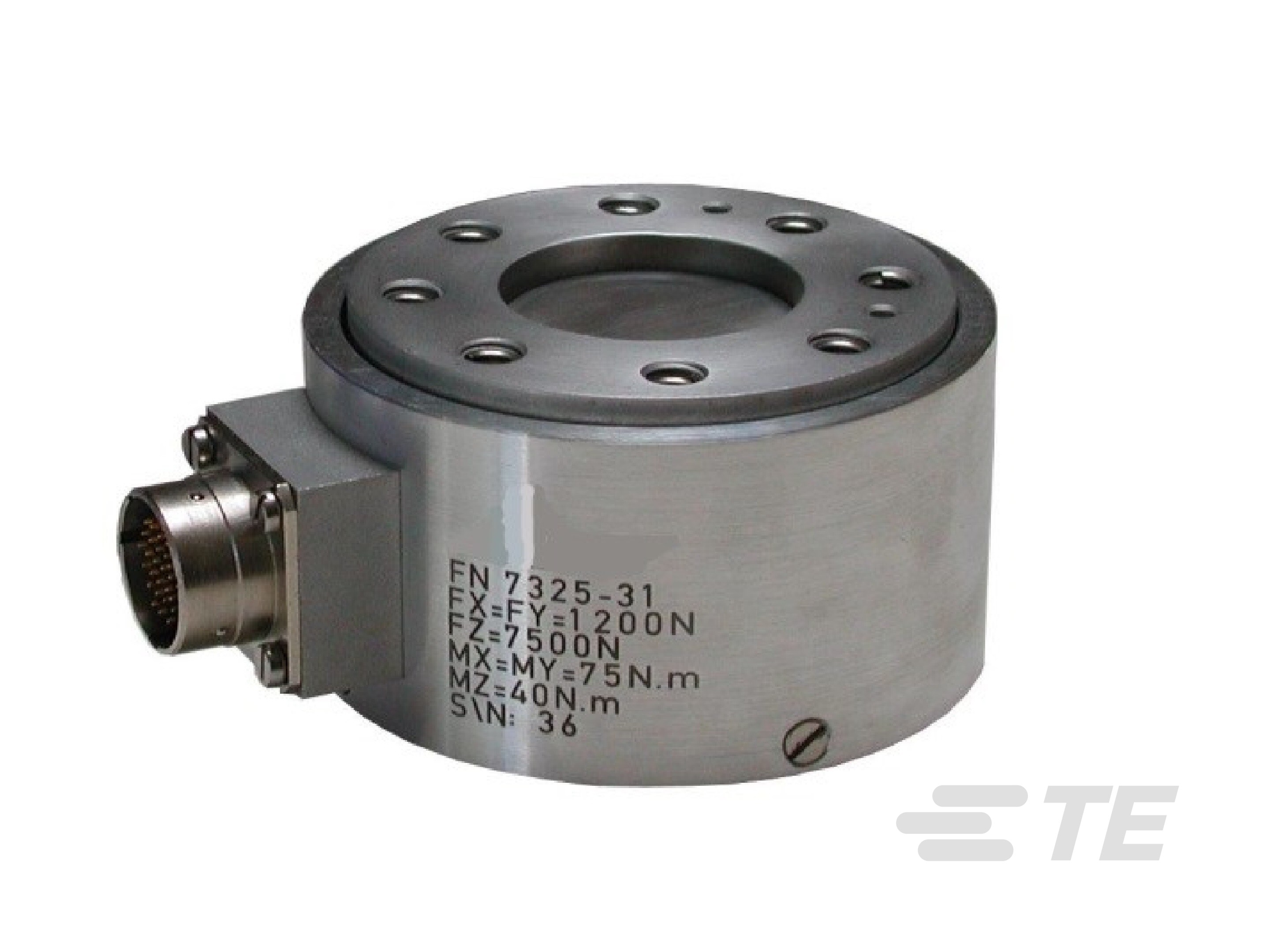

MEAS FN7325 Series

Catalog

FN7325-M10-XYZ

Part	Voltage - Supply [Min]	Voltage - Supply [Max]	Accuracy	Operating Force	Operating Force	Actuator Style/Size	Actuator Style/Size	Actuator Type	Operating Temperature [Max]	Operating Temperature [Min]	Sensor Type	Compensated Temperature [Max]	Includes	Output
TE Connectivity AMP Connectors EFN73-3V-S00003	1 V	10 V	1 %	11240 lbs	5098.58 kgf	Round	5 mm	Diaphragm	80 °C	-20 ░C	Load Cell	60 °C	Sensor	Voltage
TE Connectivity AMP Connectors EFN73-6V-S00008	1 V	10 V	1 %	6744 lbs	3059.15 kgf	Round	5 mm	Diaphragm	80 °C	-20 ░C	Load Cell	60 °C	Sensor	Voltage
TE Connectivity AMP Connectors 20020404-00	10 VDC	30 VDC	1 %	22481 lbs	10197.16 kgf			Diaphragm	80 °C	-20 ░C	Load Cell	60 °C	Sensor	Voltage
TE Connectivity AMP Connectors EFN73-6V-S00001	1 V	10 V	1 %	3372 lbs	1529.57 kgf	Round	5 mm	Diaphragm	80 °C	-20 ░C	Load Cell	60 °C	Sensor	Voltage
TE Connectivity AMP Connectors EFN73-3V-S00005	1 V	10 V	1 %	3372 lbs	1529.57 kgf	Round	5 mm	Diaphragm	80 °C	-20 ░C	Load Cell	60 °C	Sensor	Voltage
TE Connectivity AMP Connectors EFN73-6V-S00007	1 V	10 V	1 %	22481 lbs	10197.16 kgf	Round	5 mm	Diaphragm	80 °C	-20 ░C	Load Cell	60 °C	Sensor	Voltage
