PA4334 Series

Catalog

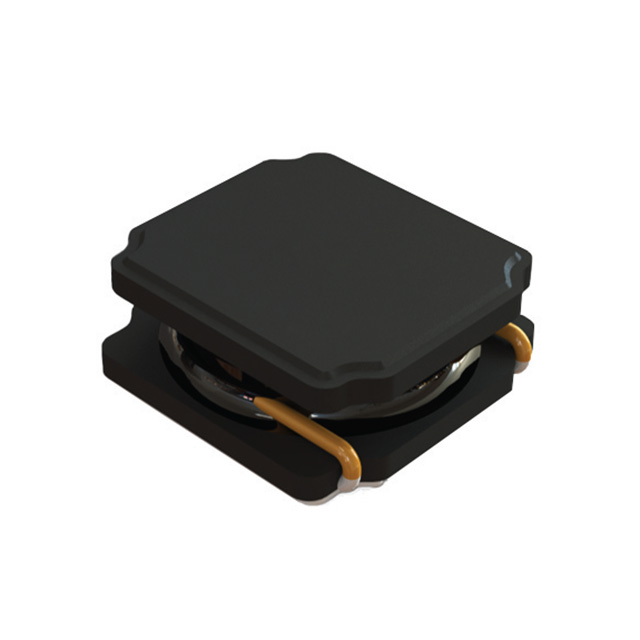

INDUCTOR POWER SHIELDED DRUM CORE 2.2UH 30% 1MHZ IRON 1.2A 0.098OHM DCR 1212 T/R

Part	Material - Core	Inductance Frequency - Test	Inductance	Shielding	Current - Saturation (Isat)	Tolerance	Frequency - Self Resonant	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Package / Case	Type	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Mounting Type	DC Resistance (DCR) [Max]	DC Resistance (DCR)
Pulse Electronics PA4334.222NLT	Iron	1 MHz	2.2 µH	Shielded	1.2 A	30 %	55 MHz	1.2 mm	0.047 "	Nonstandard	Drum Core Wirewound	1.2 A	125 °C	-40 C	3.2 mm	0.126 "	3.2 mm	0.126 in	Surface Mount
Pulse Electronics PA4334.393NLT	Iron	1 MHz	39 µH	Shielded	300 mA	20 %	10 MHz	1.2 mm	0.047 "	Nonstandard	Drum Core Wirewound	0.37 A	125 °C	-40 C	3.2 mm	0.126 "	3.2 mm	0.126 in	Surface Mount	1.729 Ohm
Pulse Electronics PA4334.332NLT	Iron	1 MHz	3.3 µH	Shielded	1.05 A	20 %	46 MHz	1.2 mm	0.047 "	Nonstandard	Drum Core Wirewound	1.05 A	125 °C	-40 C	3.2 mm	0.126 "	3.2 mm	0.126 in	Surface Mount		130 mOhm
Pulse Electronics PA4334.183NLT	Iron	1 MHz	18 µH	Shielded	430 mA	20 %	16 MHz	1.2 mm	0.047 "	Nonstandard	Drum Core Wirewound	580 mA	125 °C	-40 C	3.2 mm	0.126 "	3.2 mm	0.126 in	Surface Mount	709 mOhm
Pulse Electronics PA4334.823NLT	Iron	1 MHz	82 µH	Shielded	170 mA	20 %	7 MHz	1.2 mm	0.047 "	Nonstandard	Drum Core Wirewound	270 mA	125 °C	-40 C	3.2 mm	0.126 "	3.2 mm	0.126 in	Surface Mount		3.302 Ohm
