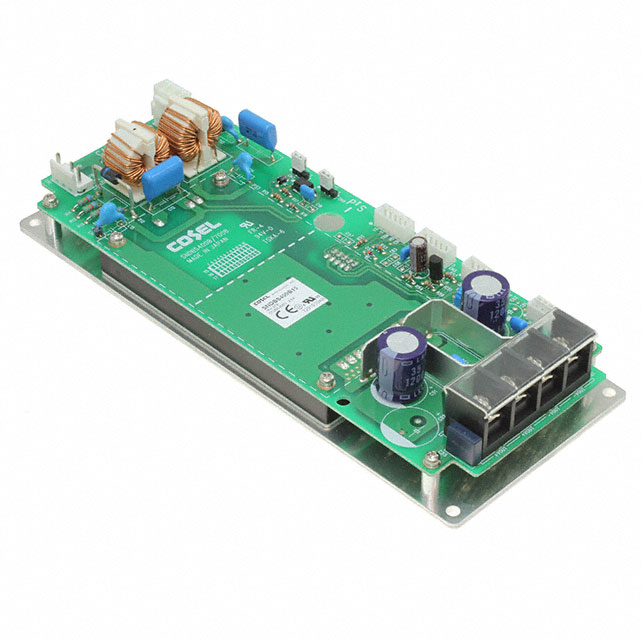

SNDBS400 Series

Catalog

DC/DC CONVERTER 15V 405W

Part	Efficiency	Mounting Type	Voltage - Input (Max) [Max]	Approval Agency	Type	Power (Watts)	Voltage - Output 1	Number of Outputs	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Min) [Min]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Current - Output (Max) [Max]
Cosel USA, Inc. SNDBS400B15	87 %	Chassis Mount	400 VDC	CE cURus	Open Frame	405 W	15 V	1	ITE (Commercial)	80 ¯C	-20 °C	200 V	89.2 mm	1.75 in	44.5 mm	8.75 "	3.51 in	222.3 mm
Cosel USA, Inc. SNDBS400B28	88 %	Chassis Mount	400 VDC	CE cURus	Open Frame	406 W	28 V	1	ITE (Commercial)	80 ¯C	-20 °C	200 V	89.2 mm	1.75 in	44.5 mm	8.75 "	3.51 in	222.3 mm	14.5 A
Cosel USA, Inc. SNDBS400B18	89 %	Chassis Mount	400 VDC	CE cURus	Open Frame	396 W	18 V	1	ITE (Commercial)	80 ¯C	-20 °C	200 V	89.2 mm	1.75 in	44.5 mm	8.75 "	3.51 in	222.3 mm	22 A
Cosel USA, Inc. SNDBS400B12	87 %	Chassis Mount	400 VDC	CE cURus	Open Frame	408 W	12 V	1	ITE (Commercial)	80 ¯C	-20 °C	200 V	89.2 mm	1.75 in	44.5 mm	8.75 "	3.51 in	222.3 mm	34 A
