PTMC Series

Catalog

DIN RAIL TERMINAL BLOCKS PTMC 1,5/32-2HBU19Z

Part	Height (Max) [z]	Height (Max) [z]	Stripping Length	Material Flammability Rating	Material - Insulation	Length	Length	Type	Number of Positions	Voltage - IEC	Current - IEC	Termination Style	Number of Levels	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Mounting Type	Housing Color	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]

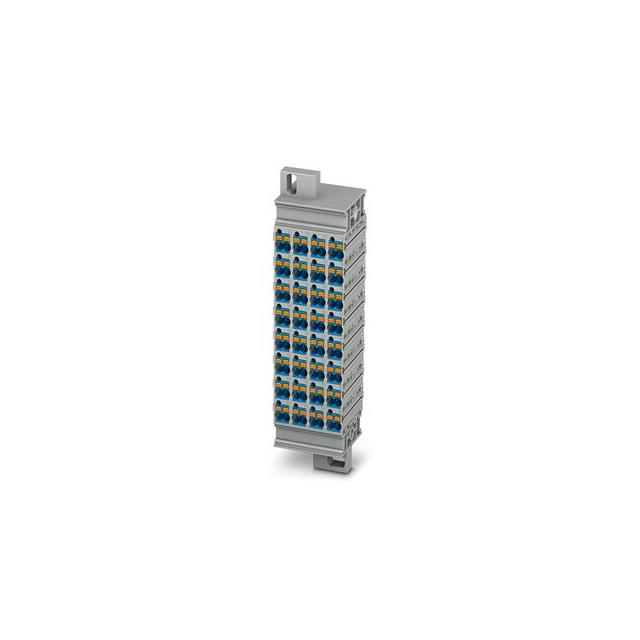

Phoenix Contact 3270317	1.181 in	30 mm	10 mm	UL94 V-0	Nylon Polyamide (PA)	4.37 in	111 mm	Marshalling Connector	128	500 V	17.5 A	Push In Spring	1	12 AWG	26 AWG	Panel Mount	Gray	0.14 mm²	2.5 mm²
Phoenix Contact 3270325								Marshalling Connector	480	500 V	17.5 A	Push In Spring	1	12 AWG	26 AWG	Panel Mount	Gray	0.14 mm²	2.5 mm²
