BD00IA5 Series

Catalog

LDO, ADJ, AEC-Q100, 0.5A, HTSOP-8

Part	Mounting Type	Current - Quiescent (Iq)	Voltage - Input (Max) [Max]	Protection Features	Qualification	Control Features	Voltage - Output (Max) [Max]	Output Type	Current - Supply (Max) [Max]	Number of Regulators	Supplier Device Package	Voltage - Output (Min/Fixed)	Package / Case	Package / Case [y]	Package / Case [x]	Grade	Output Configuration	Current - Output	Voltage Dropout (Max)	Operating Temperature [Min]	Operating Temperature [Max]

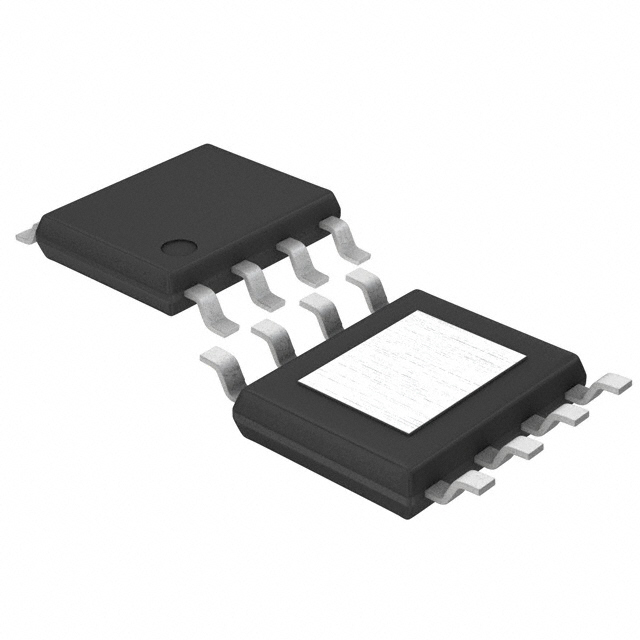

Rohm Semiconductor BD00IA5MEFJ-ME2	Surface Mount	250 µA	5.5 V	Over Current Over Temperature Soft Start	AEC-Q100	Enable	4.5 V	Adjustable	700 µA	1	8-HTSOP-J	0.8 V	8-SOIC Exposed Pad	3.9 mm	0.154 in	Automotive	Positive	500 mA	0.9 V	-40 C	105 ░C
Rohm Semiconductor BD00IA5MHFV-MTR	Surface Mount	700 µA	5.5 V	Over Current Over Temperature Soft Start	AEC-Q100	Enable	4.5 V	Adjustable		1	6-HVSOF	0.8 V	6-SMD Flat Leads Exposed Pad			Automotive	Positive	500 mA		-40 °C	105 °C
Rohm Semiconductor BD00IA5MEFJ-LBH2	Surface Mount		5.5 V	Over Current Over Temperature Soft Start		Enable	4.5 V	Adjustable	700 µA	1	8-HTSOP-J	0.8 V	8-SOIC Exposed Pad	3.9 mm	0.154 in		Positive	500 mA	0.9 V	-40 C	105 ░C
