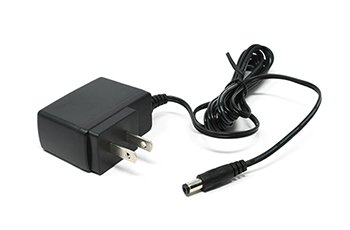

PEAW12NA Series

Wall Mount Power Supply 9V 12 Watt

Manufacturer: TT Electronics/BI

Catalog

Wall Mount Power Supply 9V 12 Watt

Catalog

Wall Mount Power Supply 9V 12 Watt

Part	Power (Watts)	Region Utilized	Current - Output (Max) [Max]	Standard Number	Cord Length	Cord Length	Input Connector	Efficiency	Input Type	Applications	Voltage - Output	Output Connector	Output Connector [diameter]	Output Connector [x]	Form	Operating Temperature [Min]	Operating Temperature [Max]	Polarization	Approval Agency	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	No Load Power Consumption	Voltage - Input [Max]	Voltage - Input [Min]
TT Electronics/BI PEAW12NA-12-B1	12 W	North America	1 A	60950-1	70.9 "	1.8 m	NEMA 1-15P	Level VI	Fixed Blade	ITE (Commercial)	12 V	Barrel Plug	2.1 mm 5.5 mm	9.5 mm	Wall Mount	0 °C	60 °C	Positive Center	CB CE cULus FCC TUV	0.94 "	53.8 mm	2.12 in	40.9 mm	1.61 in	23.9 mm	100 mW	264 VAC	90 VAC
TT Electronics/BI PEAW12NA-10-USB	12 W	North America	2.4 A	60950-1			NEMA 1-15P	Level VI	Fixed Blade	ITE (Commercial)	5 V	USB A Receptacle			Wall Mount	0 °C	60 °C		CB CE cULus FCC TUV	0.94 "	53.8 mm	2.12 in	40.9 mm	1.61 in	23.9 mm	100 mW	264 VAC	90 VAC
TT Electronics/BI PEAW12NA-13-B1	12 W	North America	0.8 A	60950-1	70.9 "	1.8 m	NEMA 1-15P	Level VI	Fixed Blade	ITE (Commercial)	15 V	Barrel Plug	2.1 mm 5.5 mm	9.5 mm	Wall Mount	0 °C	60 °C	Positive Center	CB CE cULus FCC TUV	0.94 "	53.8 mm	2.12 in	40.9 mm	1.61 in	23.9 mm	100 mW	264 VAC	90 VAC

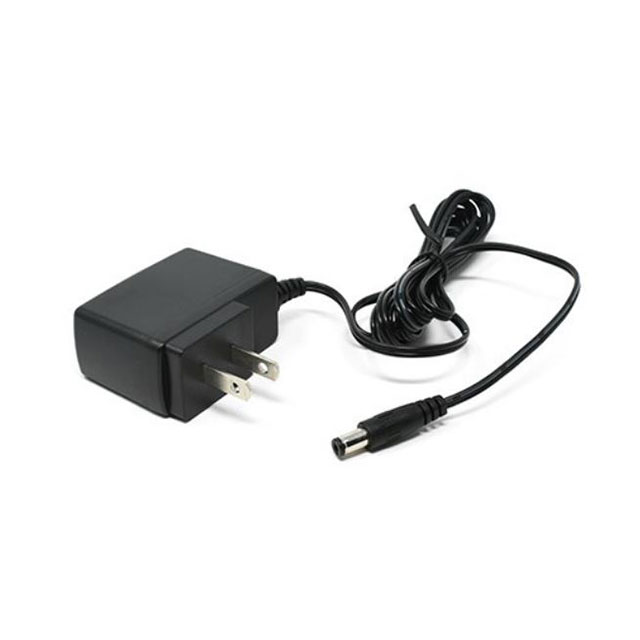

TT Electronics/BI PEAW12NA-14-B1	12 W	North America	500 mA	60950-1 62368-1	70.9 "	1.8 m	NEMA 1-15P	Level VI	Fixed Blade	ITE (Commercial)	24 V	Barrel Plug	2.1 mm 5.5 mm	9.5 mm	Wall Mount	0 °C	60 °C	Positive Center	CB CE cULus FCC TUV	0.94 "	53.8 mm	2.12 in	40.9 mm	1.61 in	23.9 mm	100 mW	264 VAC	90 VAC
TT Electronics/BI PEAW12NA-10-B1	12 W	North America	2.4 A	60950-1	70.9 "	1.8 m	NEMA 1-15P	Level VI	Fixed Blade	ITE (Commercial)	5 V	Barrel Plug	2.1 mm 5.5 mm	9.5 mm	Wall Mount	0 °C	60 °C	Positive Center	CB CE cULus FCC TUV	0.94 "	53.8 mm	2.12 in	40.9 mm	1.61 in	23.9 mm	100 mW	264 VAC	90 VAC
