9609 Series
Manufacturer: Belden Inc.
Beta
⌘K

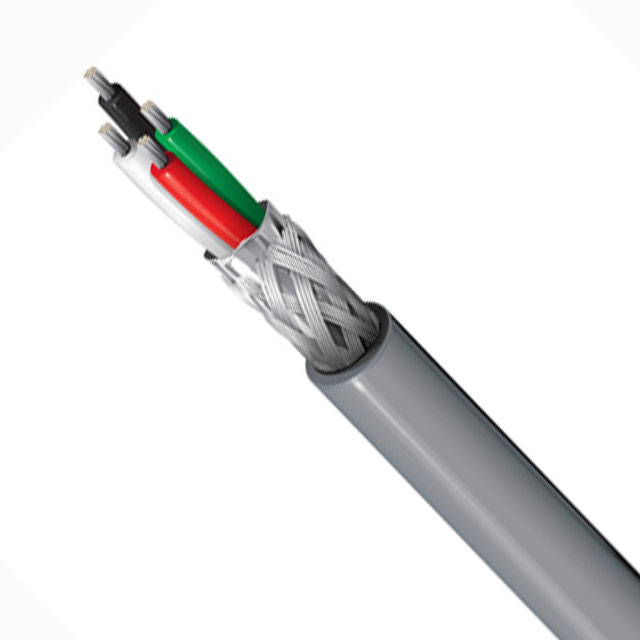

MULTICONDUCTOR CABLE, COMPUTER, SHIELDED, 4 CONDUCTOR, 24 AWG, 100 FT, 30.5 M
| Part | Shield Coverage | Shield Material | Operating Temperature [Max] | Operating Temperature [Min] | Length [x] | Length [x] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Strand [custom] | Conductor Strand [custom] | Conductor Material | Conductor Insulation | Number of Conductors | Jacket (Insulation) Material | Cable Type | Shield Type | Usage | Wire Gauge | Jacket Color | Ratings | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 65 % 100 % | Aluminum Copper Tinned | 80 °C | -30 ░C | 100 ft | 30.5 m | 0.035 in | 0.889 mm | 7 | 32 AWG | Copper Tinned | Poly-Vinyl Chloride (PVC) | 4 | Poly-Vinyl Chloride (PVC) | Multi-Conductor | Braid Foil | Computer | 24 AWG | Chrome | UL Style 2464 | 0.2 in | 5.08 mm |
