SPC Series

Pluggable Terminal Blocks 5 Pos 10.16mm pitch Plug 18-4 AWG Spring

Manufacturer: Phoenix Contact

Catalog

Pluggable Terminal Blocks 5 Pos 10.16mm pitch Plug 18-4 AWG Spring

Catalog

Pluggable Terminal Blocks 5 Pos 10.16mm pitch Plug 18-4 AWG Spring

Part	Material Flammability Rating	Wire Gauge or Range - mm˛ [Min]	Wire Gauge or Range - mm˛ [Max]	Housing Material	Insulation Height [z]	Insulation Height [z]	Wire Strip Length	Wire Gauge or Range - mm² [Min] [custom]	Wire Gauge or Range - mm² [Max] [custom]	Color	Positions Per Level	Number of Positions	Contact Mating Finish	Plug Wire Entry	Mounting Type	Voltage - IEC	Current - IEC	Pitch	Pitch	Termination Style	Current - UL	Type	Number of Levels	Features	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Insulation Height	Insulation Height	Positions Per Level [custom]	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm² [Min]

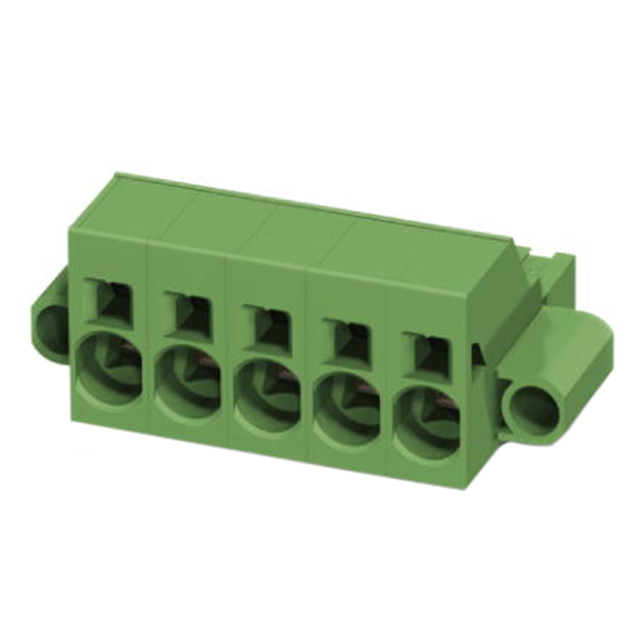

Phoenix Contact 1711404	UL94 V-0	0.75 mm˛	16 mm˛	Polyamide (PA) Nylon	25.1 mm	0.988 in	18 mm	0.75 mm²	16 mm²	Green	5	5	Silver	180 °	Free Hanging (In-Line)	1 kV	76 A	10.16 mm	0.4 in	Screwless - Spring Cage Tension Clamp	66 A	Plug Female Sockets	1	Mating Flange	20 AWG	4 AWG

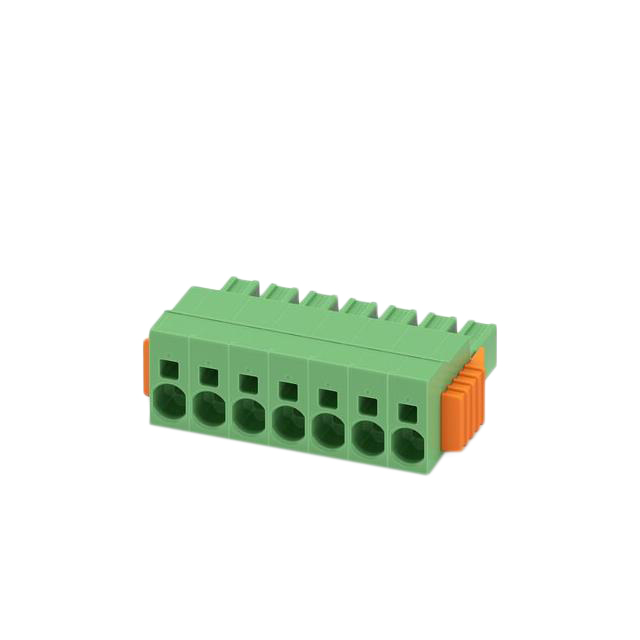

Phoenix Contact 1718533	UL94 V-0	0.2 mm˛	10 mm˛	Polyamide (PA) Nylon			15 mm			Green		7	Tin	180 °	Free Hanging (In-Line)	1 kV	41 A	7.62 mm	0.3 in	Screwless - Push-In Spring	35 A	Plug Female Sockets	1	Latch Lock	24 AWG	8 AWG	0.78 in	19.8 mm	7	10 mm²	0.2 mm²
Phoenix Contact 1718562										Green	10	10	Tin	180 °	Free Hanging (In-Line)	1 kV	41 A	7.62 mm	0.3 in	Screwless - Push-In Spring	35 A	Plug Female Sockets	1	Latch Lock	24 AWG	8 AWG				10 mm²	0.2 mm²

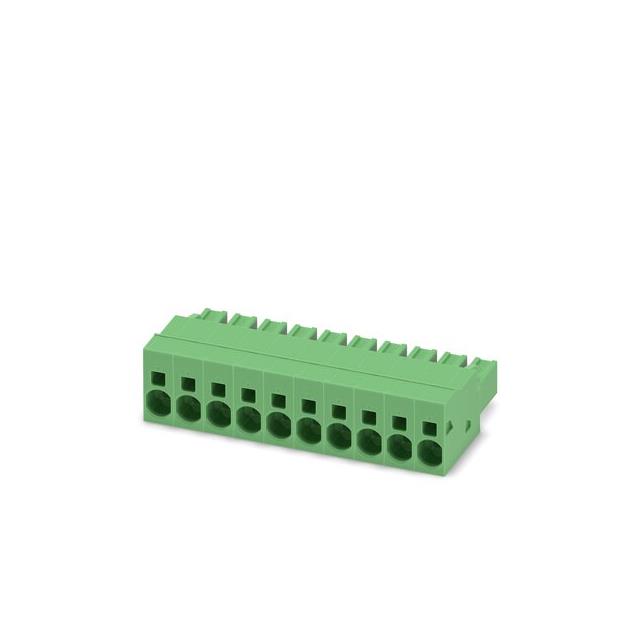

Phoenix Contact 1996090	UL94 V-0	0.2 mm˛	10 mm˛	Polyamide (PA) Nylon			15 mm			Green	10	10	Tin	180 °	Free Hanging (In-Line)	1 kV	41 A	7.62 mm	0.3 in	Screwless - Push-In Spring	35 A	Plug Female Sockets	1		24 AWG	8 AWG	0.78 in	19.8 mm		10 mm²	0.2 mm²
Phoenix Contact 1719765	UL94 V-0			Polyamide (PA) Nylon			15 mm			Black	6	6	Tin	180 °	Free Hanging (In-Line)	1 kV	41 A	7.62 mm	0.3 in	Screwless - Push-In Spring	41 A	Plug Female Sockets	1	Mating Flange Strain Relief	24 AWG	8 AWG				10 mm²	0.2 mm²
