TPM Series

Catalog

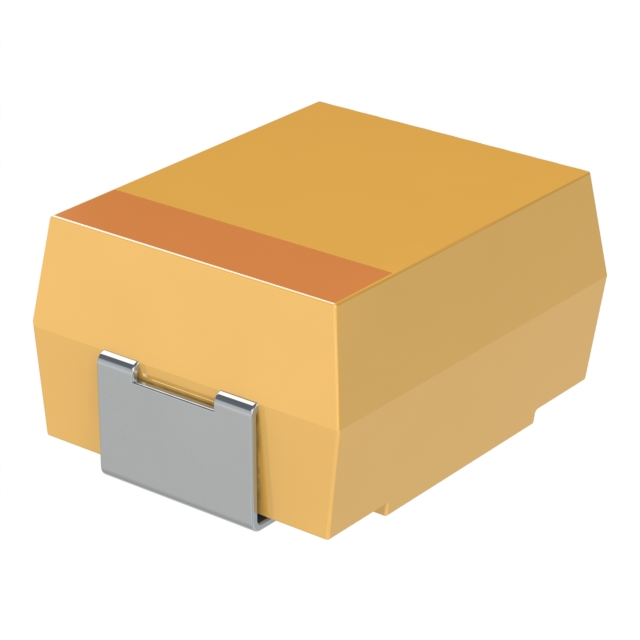

TANTALUM CAPACITORS - SOLID SMD 6.3V 680UF 10% 2917 MULTI-ANODE

Part	Type	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Manufacturer Size Code	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Package / Case	Tolerance	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Capacitance	Voltage - Rated	Features	Lifetime @ Temp.	ESR (Equivalent Series Resistance)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max]
KYOCERA AVX TPME687K006R0018	Molded	0.169 in	4.3 mm	E	0.169 "	7.3 mm	0.287 "	4.3 mm	2917 (7343 Metric)	10 %	-55 C	125 °C	Surface Mount	680 µF	6.3 VDC	General Purpose
KYOCERA AVX TPME227K016H0025	Molded	0.169 in	4.3 mm	E	0.169 "	7.3 mm	0.287 "	4.3 mm	2917 (7343 Metric)	10 %	-55 C	125 °C	Surface Mount	220 µF	16 V	General Purpose	2000 Hrs	25 mOhm
KYOCERA AVX TPME227K016S0025	Molded	0.169 in	4.3 mm	E	0.169 "	7.3 mm	0.287 "	4.3 mm	2917 (7343 Metric)	10 %	-55 C	125 °C	Surface Mount	220 µF	16 V	General Purpose		25 mOhm
KYOCERA AVX TPME337K016R0050	Molded	0.169 in	4.3 mm	E	0.169 "	7.3 mm	0.287 "	4.3 mm	2917 (7343 Metric)	10 %	-55 C	125 °C	Surface Mount	330 µF	16 V	General Purpose	2000 Hrs	50 mOhm
KYOCERA AVX TPME687K006H0023	Molded	0.169 in	4.3 mm	E	0.169 "	7.3 mm	0.287 "	4.3 mm	2917 (7343 Metric)	10 %	-55 C	125 °C	Surface Mount	680 µF	6.3 VDC	General Purpose		23 mOhm
KYOCERA AVX TPMD476M020S0045	Molded			D	0.169 "	7.3 mm	0.287 "	4.3 mm	2917 (7343 Metric)	20 %	-55 C	125 °C	Surface Mount	47 µF	20 V	General Purpose	2000 Hrs	45 mOhm	0.122 in	3.1 mm
KYOCERA AVX TPMU477K010R0023	Molded	0.169 in	4.3 mm	U	0.24 "	7.3 mm	0.287 "	6.1 mm	2924 (7361 Metric)	10 %	-55 C	125 °C	Surface Mount	470 µF	10 V	General Purpose		23 mOhm
KYOCERA AVX TPMY107M010R0045	Molded		0.079 in	Y	0.169 "	7.3 mm	0.287 "	4.3 mm	2917 (7343 Metric)	20 %	-55 C	125 °C	Surface Mount	100 µF	10 V	General Purpose		45 mOhm			2 mm
KYOCERA AVX TPME157K020H0035	Molded	0.169 in	4.3 mm	E	0.169 "	7.3 mm	0.287 "	4.3 mm	2917 (7343 Metric)	10 %	-55 C	125 °C	Surface Mount	150 µF	20 V	General Purpose	2000 Hrs	35 mOhm
KYOCERA AVX TPMD226K035R0070	Molded			D	0.169 "	7.3 mm	0.287 "	4.3 mm	2917 (7343 Metric)	10 %	-55 C	125 °C	Surface Mount	22 µF	35 V	General Purpose		70 mOhms	0.122 in	3.1 mm
