PFR0912 Series
Manufacturer: Delta Electronics
Beta
⌘K

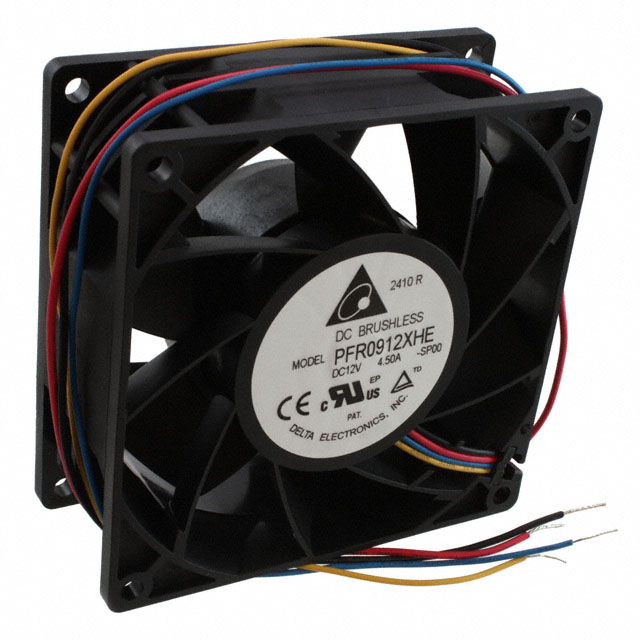

FAN AXIAL 92X38MM 12VDC WIRE
| Part | Current Rating (Amps) | Material - Blade | Lifetime @ Temp. | Voltage Range [Min] | Voltage Range [Max] | Material - Frame | Noise | Bearing Type | Features | Air Flow | Air Flow | Voltage - Rated | Approval Agency | Fan Type | Termination | Width [y] | Power (Watts) | Operating Temperature [Max] | Operating Temperature [Min] | RPM | Size / Dimension [y] | Size / Dimension [x] | Static Pressure | Static Pressure |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Delta Electronics | 3.7 A | Plastic | 70000 Hrs | 7 V | 13.2 VDC | Plastic | 71 dB(A) | Ball | Locked Rotor Protection PWM Control Speed Sensor (Tach) | 5.19 m³/min | 185.5 CFM | 12 VDC | CE cURus VDE | Tubeaxial | 4 Wire Leads | 38 mm | 44.4 W | 70 °C | -10 °C | 11500 RPM | 92 mm | 92 mm | 628.5 Pa | 2.523 in H2O |
