0923-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

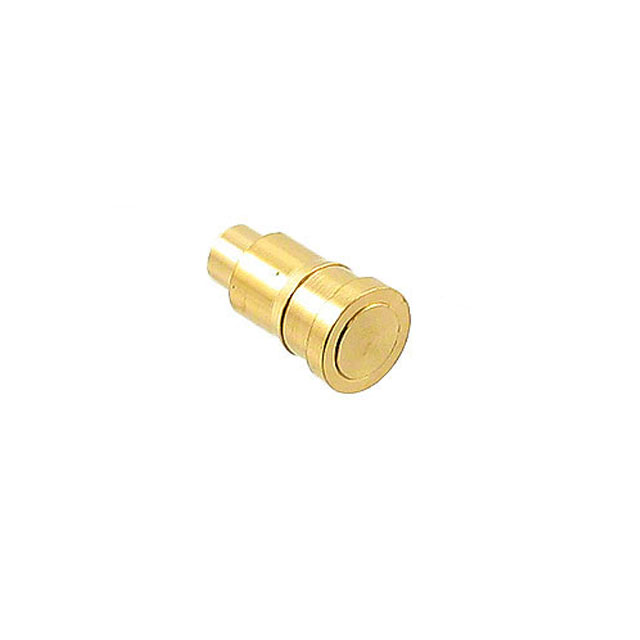

CONTACT SPRING LOADED SMD GOLD
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Maximum Working Height [Max] | Maximum Working Height [Max] | Contact Finish | Mating Cycles | Pad Layout Dimension | Pad Layout Dimension | Contact Type | Contact Material | Mounting Type | Current Rating (Amps) | Minimum Working Height | Minimum Working Height | Contact Finish Thickness | Contact Finish Thickness | Plunger Size [diameter] | Plunger Size [diameter] | Recommended Working Height | Recommended Working Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | -55 C | 125 °C | 0.137 in | 3.48 mm | Gold | 1000000 | 0.072 in | 1.83 mm | Sleeve & Plunger (Pogo Pins) | Copper Alloy | Surface Mount | 2 A | 2.5 mm | 0.098 in | 20 µin | 0.51 µm | 0.042 in | 1.07 mm | 0.117 in | 2.98 mm |
