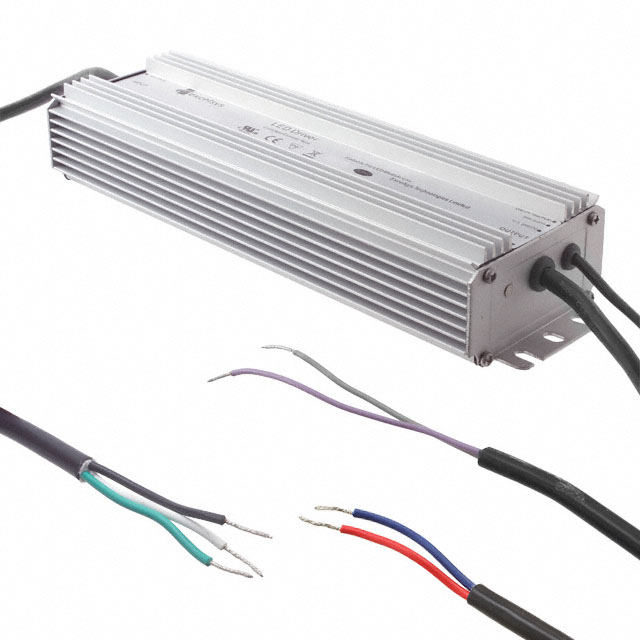

LXD150 Series
Manufacturer: EXCELSYS / Advanced Energy
Beta
⌘K
LED DRIVER CC AC/DC 214-428V
| Part | Mounting Type | Weight [custom] | Weight [custom] | Voltage - Input (Max) [Max] | Current - Output (Max) [Max] | Topology | Efficiency | Voltage - Output [Max] | Voltage - Output [Min] | Power (Watts) | Approval Agency | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Ratings | Operating Temperature [Min] | Operating Temperature [Max] | Termination Style | Features | Voltage - Input (Min) [Min] | Voltage - Isolation | Type | Number of Outputs | Dimming |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EXCELSYS / Advanced Energy | Chassis Mount | 3.2 lbs | 1.5 kg | 305 VAC | 350 mA | AC DC Converter | 93.5 % | 428 V | 214 V | 150 W | CE cULus EN | 46 mm | 1.81 " | 3.13 " | 10.43 in | 265 mm | 79.5 mm | IP67 | -35 °C | 70 °C | Wire Leads | OVP SCP | 90 VAC | 3750 VDC | Constant Current | 1 | Analog |
