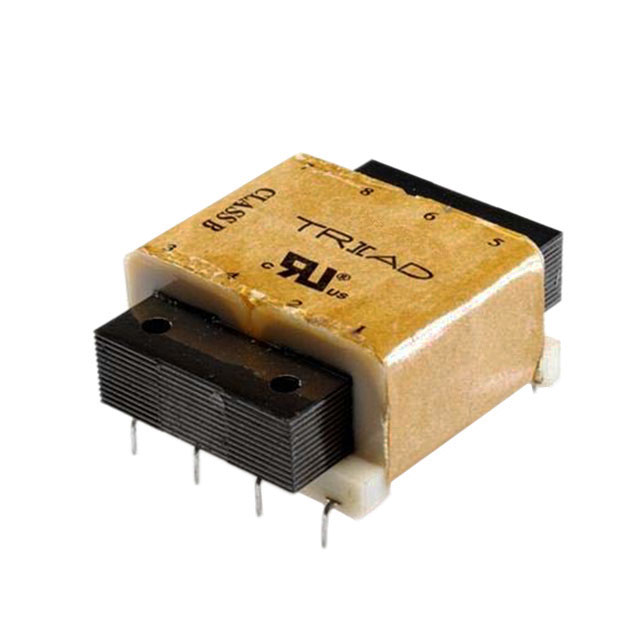

FP Series

Catalog

POWER TRANSFORMERS POWER XFMR 20.0VCTA.0.600A UL/CUL FLAT PACK PCB MOUNT/FP20-600

Part	Power - Max [Max]	Type	Mounting Type	Weight [custom]	Weight [custom]	Termination Style	Secondary Winding(s)	Size / Dimension [x]	Size / Dimension [y]	Height - Seated (Max) [Max]	Voltage - Isolation	Voltage - Primary	Current - Output (Max)	Voltage - Secondary (Full Load) [custom]	Voltage - Secondary (Full Load) [custom]	Primary Winding(s)	Current - Output (Max) [custom]	Current - Output (Max) [custom]	Height - Seated (Max) [Max] [z]	Voltage - Secondary (Full Load)	Weight	Weight
Triad Magnetics FP20-600	12 VA	Laminated Core	Through Hole	312.07 g	0.688 lb	PC Pin	Dual	2.5 "	2 in	26.97 mm	2000 Vrms	115 V 230 V	1.2 A 600 mA	10 V	20 V	Dual
Triad Magnetics FP34-700	24 VA	Laminated Core	Through Hole	425.47 g	0.938 lb	PC Pin	Dual	72.9 mm	2.25 in		2000 Vrms	115 V 230 V				Dual	700 mA	1.4 A	34.93 mm	17 V 34 V
Triad Magnetics FP20-125	2.5 VA	Laminated Core	Through Hole			PC Pin	Dual	47.63 mm	39.67 mm	16.51 mm	2000 Vrms	115 V 230 V	125 mA 250 mA	10 V	20 V	Dual					141.97 g	0.313 lb
Triad Magnetics FP16-375	6 VA	Laminated Core	Through Hole	198.67 g	0.438 lb	PC Pin	Dual	47.63 mm	39.67 mm		2000 Vrms	115 V 230 V	375 mA 750 mA			Dual			22.22 mm	8 V 16 V
Triad Magnetics FP230-50	12 VA	Laminated Core	Through Hole	312.07 g	0.688 lb	PC Pin	Dual	2.5 "	2 in	26.97 mm	2000 Vrms	115 V 230 V	50 mA 100 mA			Dual				120 V 230 V
Triad Magnetics FP10-4800	48 VA	Laminated Core	Through Hole			PC Pin	Dual	79.25 mm	2.5 "		2000 Vrms	115 V 230 V				Dual	4.8 A	9.6 A	34.93 mm	5 V 10 V	635 g	1.4 lbs
