MKDSO Series

Catalog

CONN PC TERMINAL BLOCK 5MM SOLDER THRU-HOLE 24A CARDBOARD

Part	Torque - Screw [Max]	Torque - Screw [Min]	Torque - Screw [Min]	Torque - Screw [Max]	Screw Thread	Pitch	Pitch	Mating Orientation	Wire Termination	Current	Wire Gauge [Max]	Wire Gauge [Min]	Positions Per Level	Color	Voltage	Number of Levels	Mounting Type	Housing Material	Features
Phoenix Contact 2909785	0.6 Nm	4.4 Lb-In	0.5 Nm	5.3 Lb-In	M3	0.197 in	5 mm	Horizontal with Board	Screw - Rising Cage Clamp	20 A	30 AWG	12 AWG	2	Black	300 VDC	1	Through Hole

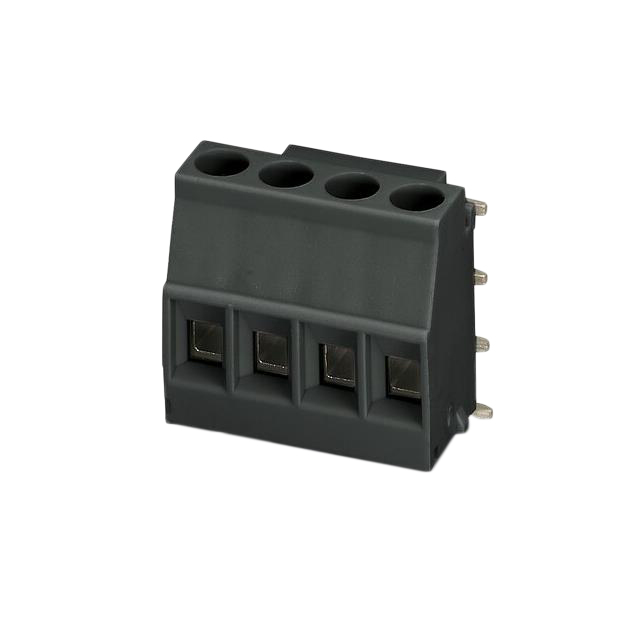

Phoenix Contact 2869760	0.6 Nm	4.4 Lb-In	0.5 Nm	5.3 Lb-In	M3	0.197 in	5 mm	Horizontal with Board	Screw - Rising Cage Clamp	10 A	28 AWG	12 AWG	4	Black	300 VDC	1	Through Hole

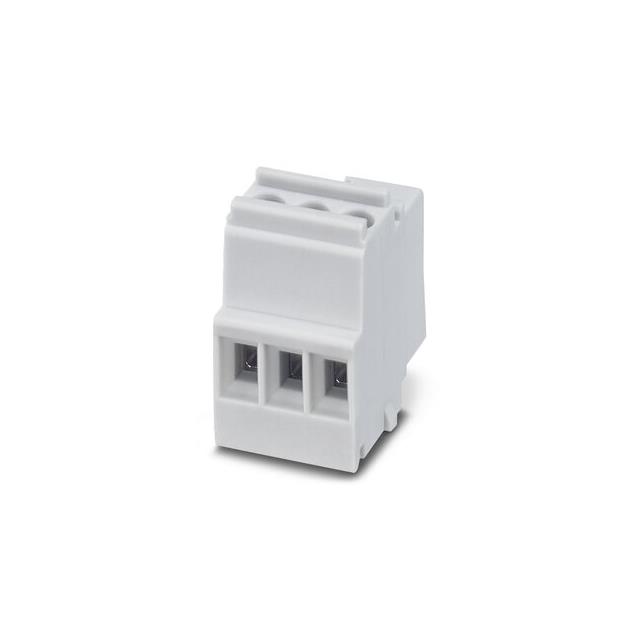

Phoenix Contact 2278445	0.25 Nm	1.9 Lb-In	0.22 Nm	2.2 Lb-In	M2	0.138 "	3.5 mm	Horizontal with Board	Screw - Rising Cage Clamp		28 AWG	16 AWG	3	Gray		1	Through Hole	Polyamide (PA) Nylon

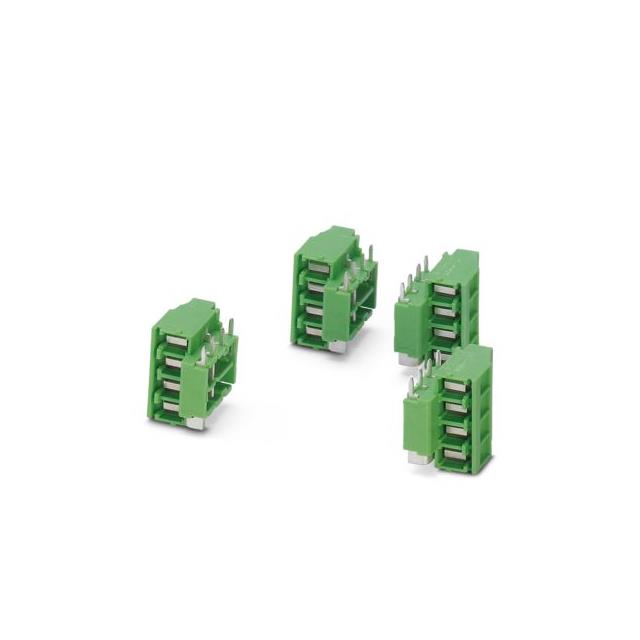

Phoenix Contact 2707945	0.6 Nm	4.4 Lb-In	0.5 Nm	5.3 Lb-In	M3	0.197 in	5 mm	Horizontal with Board	Screw - Rising Cage Clamp	20 A	30 AWG	12 AWG	4	Green	300 VDC	1	Through Hole	Polyamide (PA) Nylon	Set (6)
Phoenix Contact 2707932						0.197 in	5 mm	Horizontal with Board	Screw - Rising Cage Clamp	20 A	30 AWG	12 AWG	3	Green	300 VDC	1	Through Hole		Set (6)
Phoenix Contact 2909581						0.197 in	5 mm	Horizontal with Board	Screw - Rising Cage Clamp	20 A	30 AWG	12 AWG	4	Gray	300 VDC	1	Through Hole
