FS50R12 Series

Manufacturer: INFINEON

Catalog

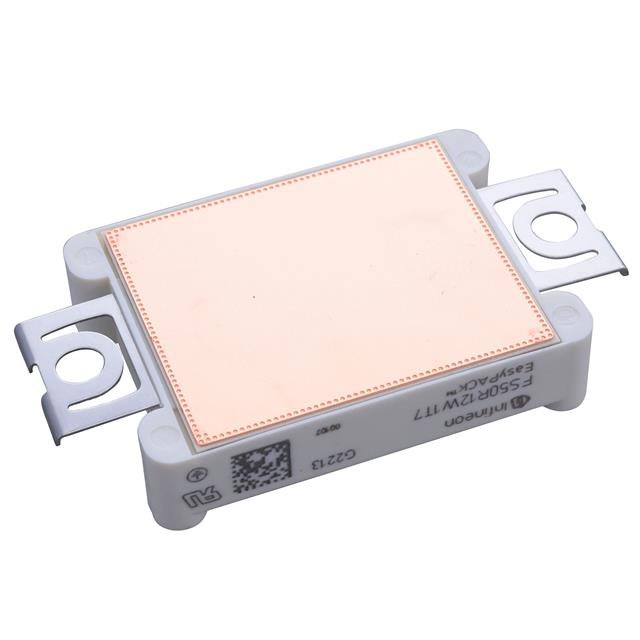

THE FS50R12W2T7_B11 IS A SIXPACK IGBT7 - T7 MODULE IN A EASYPACK™ 2B HOUSING FOR INDUSTRIAL APPLICATIONS UP TO 1200 V AND 50 A.

Part	Configuration	IGBT Type	Input	Mounting Type	Current - Collector Cutoff (Max) [Max]	Package / Case	Supplier Device Package	Input Capacitance (Cies) @ Vce	Current - Collector (Ic) (Max) [Max]	Voltage - Collector Emitter Breakdown (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Vce(on) (Max) @ Vge, Ic [Max]	Power - Max [Max]	Vce(on) (Max) @ Vge, Ic	Operating Temperature
INFINEON FS50R12W2T7B11BOMA1	Full Bridge	Trench Field Stop	Standard	Chassis Mount	7.9 µA	Module	Module	11100 pF	50 A	1200 V	-40 C	175 °C	1.5 V
INFINEON FS50R12KT4B11BOSA1	Full Bridge	Trench Field Stop	Standard	Chassis Mount	1 mA	Module	Module	2.8 nF	50 A	1200 V	-40 C	150 °C		280 W	2.15 V
INFINEON FS50R12W1T7B11BOMA1				Chassis Mount	7.9 µA	Module	Module	11100 pF	50 A	1200 V	-40 C	175 °C
INFINEON FS50R12W2T4B11BOMA1	Three Phase Inverter	Trench Field Stop	Standard	Chassis Mount	1 mA	Module	Module	2.8 nF	83 A	1200 V	-40 C	150 °C		335 W	2.15 V
INFINEON FS50R12KE3BOSA1	Three Phase Inverter	NPT	Standard	Chassis Mount	5 mA	Module	Module	3.5 nF	75 A	1200 V				270 W	2.15 V	150 °C
INFINEON FS50R12W2T7BPSA1	Three Phase Inverter	Trench Field Stop	Standard	Chassis Mount	7.9 µA	Module	AG-EASY2B	11100 pF	50 A	1200 V	-40 °C	175 °C		20 mW
INFINEON FS50R12W2T4BOMA1	Full Bridge Inverter	Trench Field Stop	Standard	Chassis Mount	1 mA	Module	Module	2.8 nF	83 A	1200 V	-40 C	125 °C		335 W	2.15 V
INFINEON FS50R12W1T7BOMA1	Three Phase Inverter	Trench Field Stop	Standard	Chassis Mount	7.9 µA	Module	AG-EASY1B	11100 pF	50 A	1200 V	-40 °C	175 °C
