3501 Series

Catalog

RELAY REED SPST 500MA 5V

Part	Coil Resistance	Must Operate Voltage	Coil Type	Coil Current	Termination Style	Seal Rating	Release Time	Coil Voltage	Switching Voltage [Max]	Mounting Type	Must Release Voltage	Contact Rating (Current)	Operating Temperature [Max]	Operating Temperature [Min]	Contact Form	Operate Time

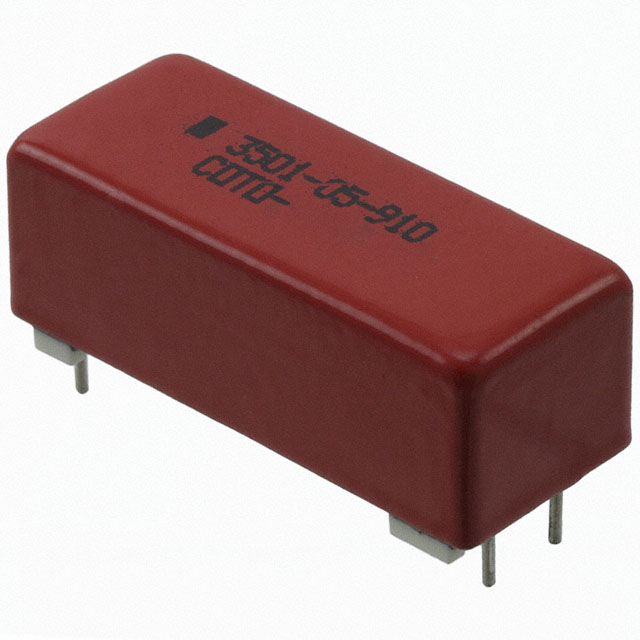

COTO TECHNOLOGY 3501-05-910	350 Ohms	3.8 VDC	Non Latching	14.3 mA	PC Pin	Sealed - Hermetically	0.1 ms	5 VDC	200 VDC 200 VAC	Through Hole	0.4 VDC	0.5 A	85 °C	-20 ░C	SPST-NO (1 Form A)	750 µs

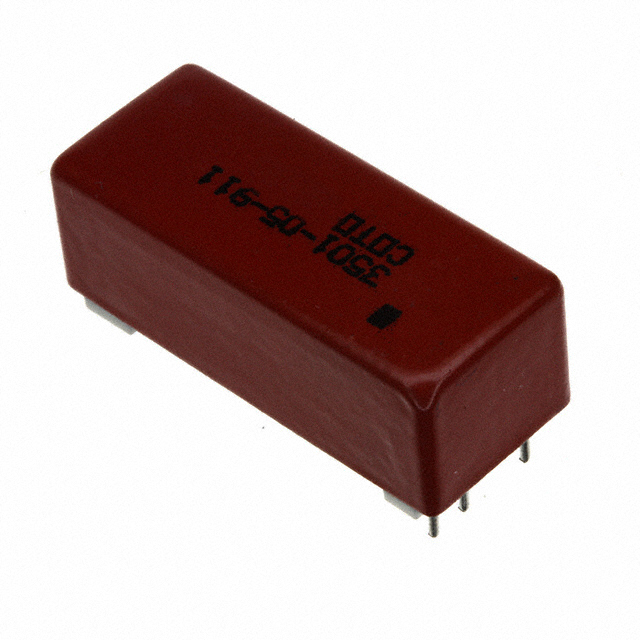

COTO TECHNOLOGY 3501-05-911	350 Ohms	3.8 VDC	Non Latching	14.3 mA	PC Pin	Sealed - Hermetically	0.1 ms	5 VDC	200 VDC 200 VAC	Through Hole	0.4 VDC	0.5 A	85 °C	-20 ░C	SPST-NO (1 Form A)	750 µs
COTO TECHNOLOGY 3501-12-911	2 kOhms	9 VDC	Non Latching	6 mA	PC Pin	Sealed - Hermetically	0.1 ms	12 VDC	200 VDC 200 VAC	Through Hole	1 VDC	0.5 A	85 °C	-20 ░C	SPST-NO (1 Form A)	750 µs
COTO TECHNOLOGY 3501-05-511	350 Ohms	3.8 VDC	Non Latching	14.3 mA	PC Pin	Sealed - Hermetically	0.1 ms	5 VDC	200 VDC 200 VAC	Through Hole	0.4 VDC	0.5 A	85 °C	-20 ░C	SPST-NO (1 Form A)	750 µs
COTO TECHNOLOGY 3501-12-511	2 kOhms	9 VDC	Non Latching	6 mA	PC Pin	Sealed - Hermetically	0.1 ms	12 VDC	200 VDC 200 VAC	Through Hole	1 VDC	0.5 A	85 °C	-20 ░C	SPST-NO (1 Form A)	750 µs
COTO TECHNOLOGY 3501-05-711	350 Ohms	3.8 VDC	Non Latching	14.3 mA	PC Pin	Sealed - Hermetically	0.1 ms	5 VDC	200 VDC 200 VAC	Through Hole	0.4 VDC	0.5 A	85 °C	-20 ░C	SPST-NO (1 Form A)	750 µs
COTO TECHNOLOGY 3501-12-711	2 kOhms	9 VDC	Non Latching	6 mA	PC Pin	Sealed - Hermetically	0.1 ms	12 VDC	200 VDC 200 VAC	Through Hole	1 VDC	0.5 A	85 °C	-20 ░C	SPST-NO (1 Form A)	750 µs
COTO TECHNOLOGY 3501-05-811	350 Ohms	3.8 VDC	Non Latching	14.3 mA	PC Pin	Sealed - Hermetically	0.1 ms	5 VDC	200 VDC 200 VAC	Through Hole	0.4 VDC	0.5 A	85 °C	-20 ░C	SPST-NO (1 Form A)	750 µs
