811-S1 Series
Manufacturer: Preci-Dip
Beta
⌘K

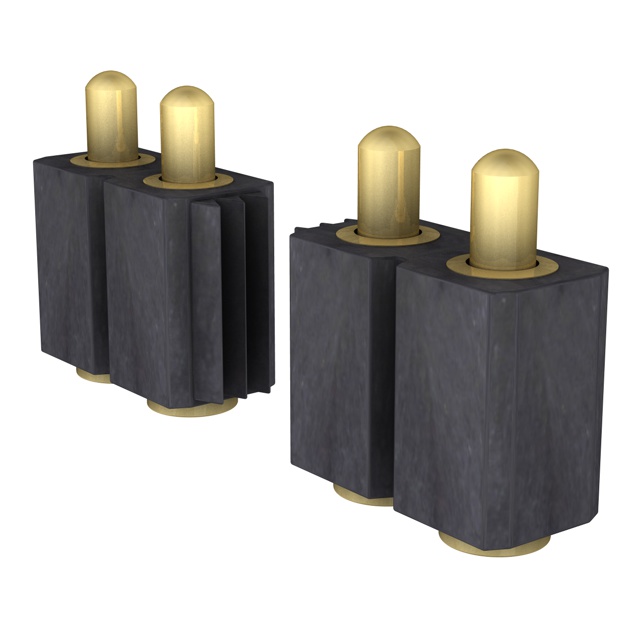

CONN SPRING PISTON 10POS SMD
| Part | Number of Rows | Connector Type | Mounting Type | Contact Finish Thickness | Contact Finish Thickness | Contact Finish | Pitch | Pitch | Number of Contacts | Material | Number of Contacts [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|
 Preci-Dip | 1 | Piston | Surface Mount | 19.7 µin | 0.5 µm | Gold | 0.1 " | 2.54 mm | 10 | Brass | |

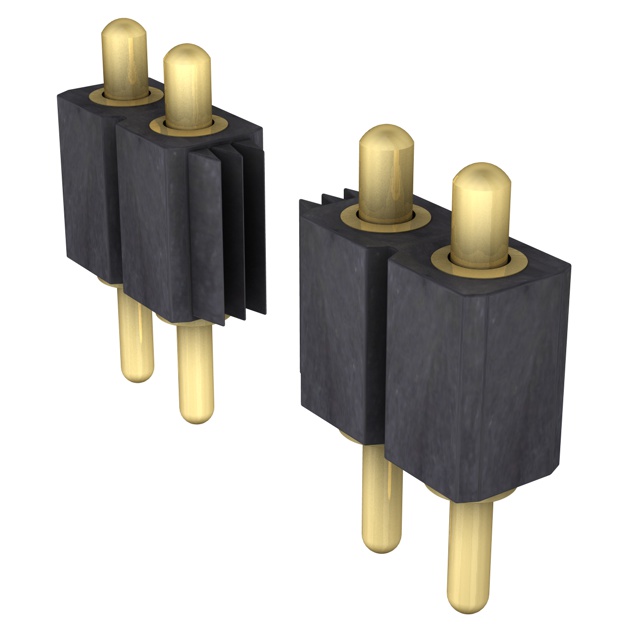

 Preci-Dip | 1 | Piston | Through Hole | 19.7 µin | 0.5 µm | Gold | 0.1 " | 2.54 mm | Brass | 62 | |
Preci-Dip | 1 | Piston | Through Hole | 19.7 µin | 0.5 µm | Gold | 0.1 " | 2.54 mm | 19 | Brass | |
Preci-Dip | 1 | Piston | Through Hole | 19.7 µin | 0.5 µm | Gold | 0.1 " | 2.54 mm | 23 | Brass | |
Preci-Dip | 1 | Piston | Through Hole | 19.7 µin | 0.5 µm | Gold | 0.1 " | 2.54 mm | 28 | Brass | |
Preci-Dip | 1 | Piston | Surface Mount | 19.7 µin | 0.5 µm | Gold | 0.1 " | 2.54 mm | 10 | Brass | |
Preci-Dip | 1 | Piston | Through Hole | 19.7 µin | 0.5 µm | Gold | 0.1 " | 2.54 mm | 54 | Brass | |
Preci-Dip | 1 | Piston | Through Hole | 19.7 µin | 0.5 µm | Gold | 0.1 " | 2.54 mm | 10 | Brass | |
Preci-Dip | 1 | Piston | Through Hole | 19.7 µin | 0.5 µm | Gold | 0.1 " | 2.54 mm | 16 | Brass | |
Preci-Dip | 1 | Piston | Through Hole | 19.7 µin | 0.5 µm | Gold | 0.1 " | 2.54 mm | Brass | 32 |
