1986262 Series

Catalog

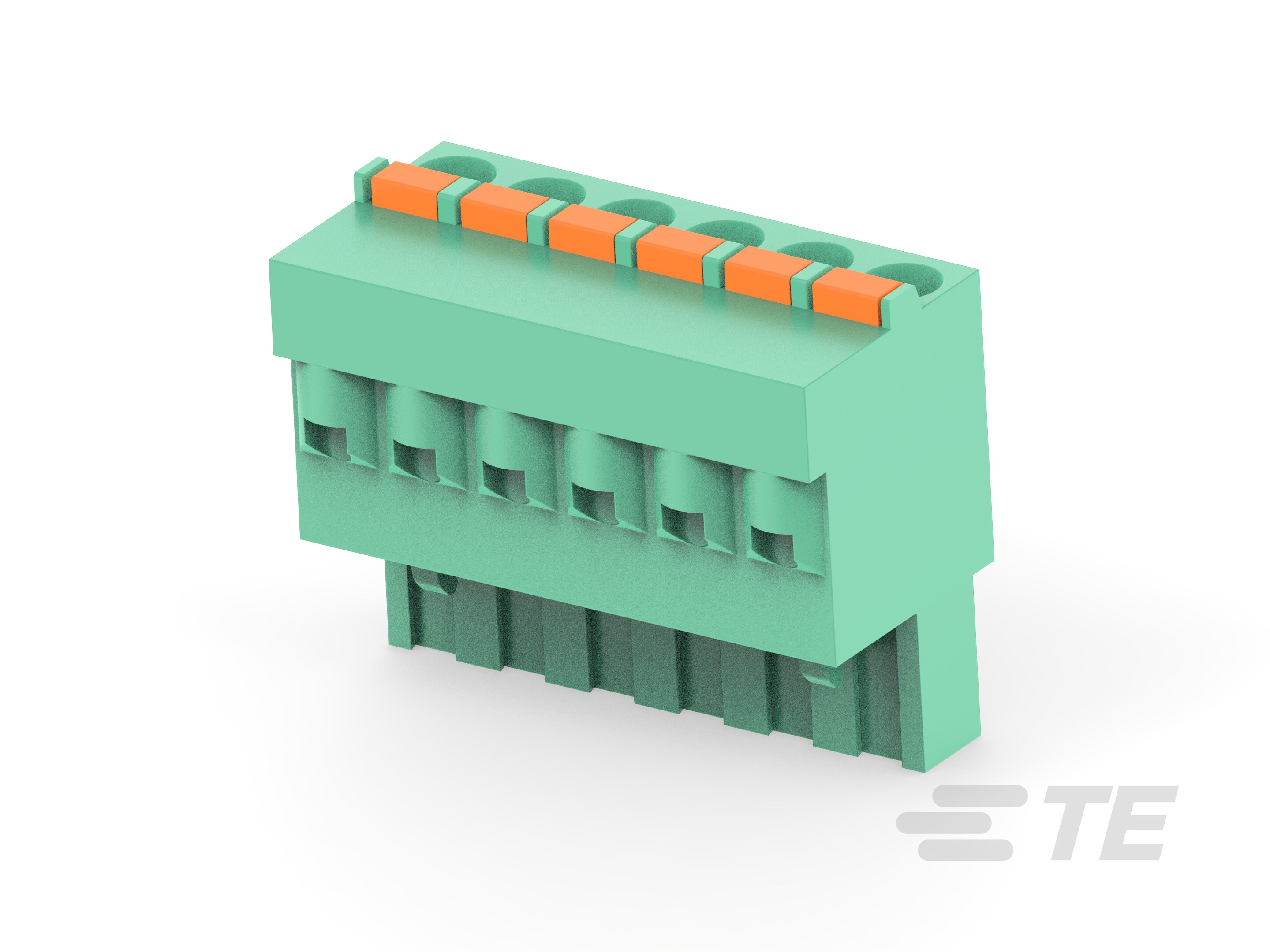

6 POS PLUG SPRING CONN, PITCH 5.08

Part	Insulation Height	Insulation Height	Material Flammability Rating	Wire Strip Length	Contact Material	Features	Plug Wire Entry	Number of Levels	Mounting Type	Number of Positions	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Pitch	Pitch	Operating Temperature [Min]	Operating Temperature [Max]	Type	Positions Per Level	Termination Style	Voltage - UL	Color	Current - UL	Contact Mating Finish	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]
TE Connectivity AMP Connectors 1986262-6	0.98 in	24.89 mm	UL94 V-0	10 mm	Copper Alloy	Push Button Actuated Retention Latches (Non-Wire Side)	180 °	1	Free Hanging (In-Line)	16	14 AWG	30 AWG	5.08 mm	0.2 in	-40 C	105 ░C	Plug Female Sockets	16	Push-In Spring Screwless - Leg Spring	300 V	Green	12 A	Tin
TE Connectivity AMP Connectors 1986262-4	0.98 in	24.89 mm	UL94 V-0	10 mm	Copper Alloy	Push Button Actuated Retention Latches (Non-Wire Side)	180 °	1	Free Hanging (In-Line)	4	14 AWG	30 AWG	5.08 mm	0.2 in	-40 C	105 ░C	Plug Female Sockets	4	Screwless - Push-In Spring	300 V	Green	12 A	Tin	0.05 mm²	2 mm²
