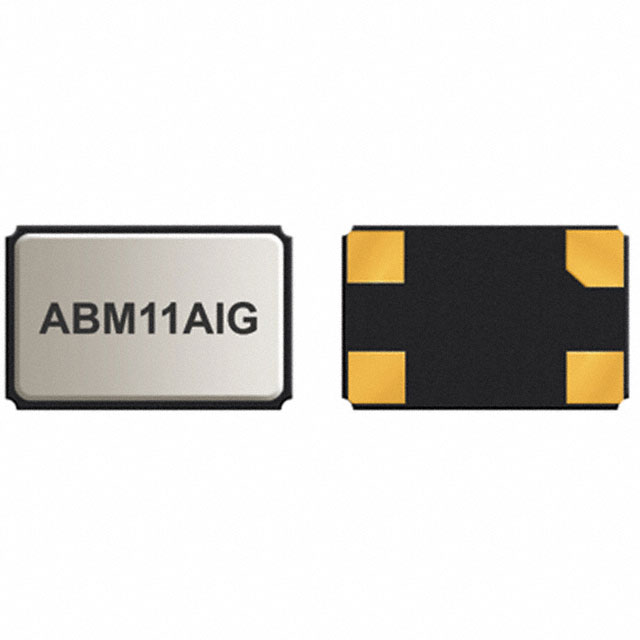

ABM11AIG Series

Catalog

CRYSTALS XTAL 2016 4-SMD 24.576MHZ TOL +/-10PPM STAB +/-50PPM -40°C ~ 125°C 10PF 80 OHMS

Part	Frequency Tolerance	Supplier Device Package [y]	Supplier Device Package [x]	Supplier Device Package [custom]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Package / Case	Mounting Type	ESR (Equivalent Series Resistance)	Frequency	Operating Mode	Type	Ratings	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Frequency Stability	Load Capacitance
Abracon LLC ABM11AIG-24.576MHZ-1Z-T	10 ppm	1.6	2	4-SMD	0.55 mm	0.022 in	4-SMD No Lead	Surface Mount	80 Ohm	24.576 MHz	Fundamental	MHz Crystal	AEC-Q200	125 °C	-40 C	1.6 mm	0.079 in	0.063 "	2 mm	50 ppm	10 pF
Abracon LLC ABM11AIG-48.000MHZ-1Z-T	10 ppm	1.6	2	4-SMD	0.55 mm	0.022 in	4-SMD No Lead	Surface Mount	50 Ohms	48 MHz	Fundamental	MHz Crystal	AEC-Q200	125 °C	-40 C	1.6 mm	0.079 in	0.063 "	2 mm	50 ppm	10 pF
