16282-2S Series
Manufacturer: Conxall/Switchcraft
Beta
⌘K

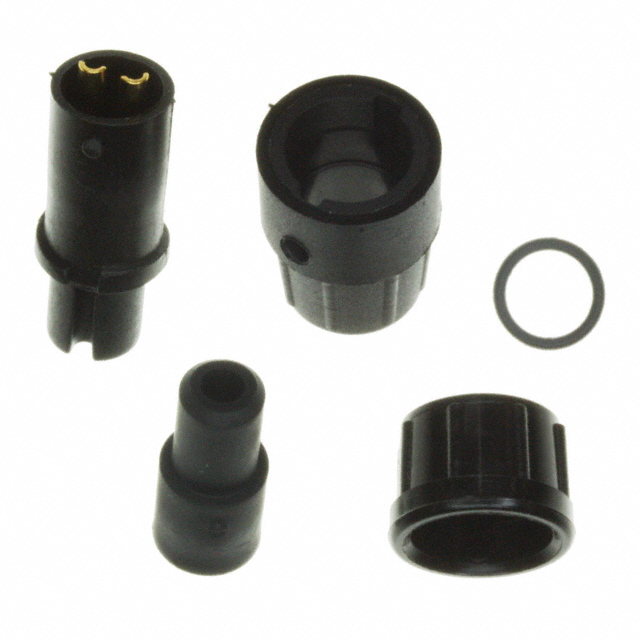

CONN PLUG FMALE 2P GOLD SLDR CUP
| Part | Current Rating (Amps) | Number of Positions | Mounting Type | Contact Material | Connector Type | Voltage Rating | Ingress Protection | Primary Material | Color | Orientation | Contact Finish - Mating | Material Flammability Rating | Features | Fastening Type | Operating Temperature [Max] | Operating Temperature [Min] | Applications | Backshell Material, Plating | Cable Opening [diameter] | Cable Opening [diameter] | Cable Opening [diameter] | Shielding | Cable Opening [custom] | Cable Opening [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Conxall/Switchcraft | 7.5 A | 2 | Free Hanging (In-Line) | Copper Alloy | Female Sockets Plug | 600 VAC | IP67 - Dust Tight Waterproof | Plastic | Black | Keyed | Gold | UL94 HB | Backshell | Bayonet Lock | 85 °C | -40 °C | Data Industrial Instrumentation Medical | Thermoplastic | 2.29 mm | 0.09 in 0.14 in | 3.56 mm | Unshielded | ||
 Conxall/Switchcraft | 7.5 A | 2 | Free Hanging (In-Line) | Copper Alloy | Female Sockets Plug | 600 VAC | IP67 - Dust Tight Waterproof | Plastic | Black | Keyed | Gold | UL94 HB | Backshell | Bayonet Lock | 85 °C | -40 °C | Data Industrial Instrumentation Medical | Thermoplastic | Unshielded | 0.15 in 0.17 in | 3.81 mm 4.32 mm |
