FS200R12 Series

Manufacturer: INFINEON

Catalog

THE FS200R12PT4 IS A SIXPACK IGBT4 - T4 MODULE IN A ECONOPACK™ 4 HOUSING FOR INDUSTRIAL APPLICATIONS UP TO 1200 V AND 200 A.

Part	Input	IGBT Type	Voltage - Collector Emitter Breakdown (Max) [Max]	Power - Max [Max]	Mounting Type	Current - Collector (Ic) (Max) [Max]	Current - Collector Cutoff (Max) [Max]	Input Capacitance (Cies) @ Vce	Operating Temperature [Min]	Operating Temperature [Max]	Vce(on) (Max) @ Vge, Ic	Package / Case	Configuration	Supplier Device Package
INFINEON FS200R12PT4BOSA1	Standard	Trench Field Stop	1200 V	1000 W	Chassis Mount	280 A	1 mA	14 nF	-40 C	150 °C	2.15 V	Module	Three Phase Inverter	Module

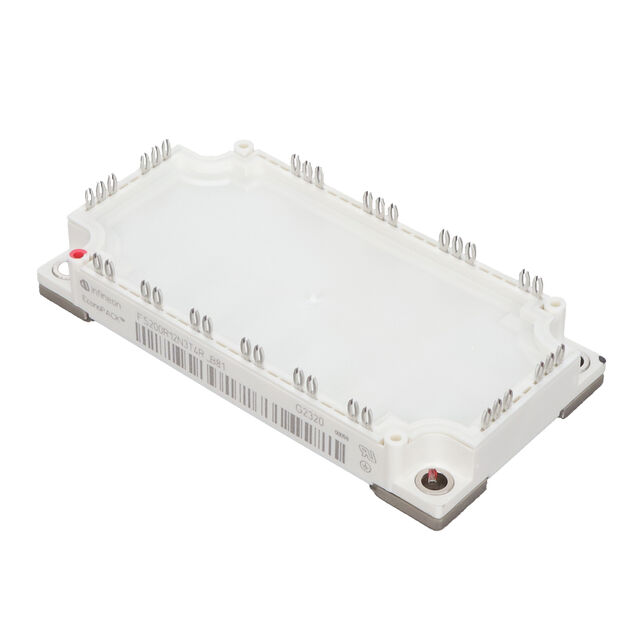

INFINEON FS200R12N3T4RB81BPSA1
INFINEON FS200R12KT4RPB11BPSA1	Standard	NPT Trench Field Stop	1200 V	1000 W	Chassis Mount	280 A	1 mA	14000 pF	-40 °C	150 °C	2.15 V	Module	Three Phase Inverter	AG-ECONO3B
INFINEON FS200R12KT4RPBPSA1
INFINEON FS200R12KT4RB11BOSA1	Standard		1200 V	1000 W	Chassis Mount	280 A	1 mA	14 nF	-40 C	150 °C	2.15 V	Module	Three Phase Inverter	Module
INFINEON FS200R12W3T7B11BPSA1	Standard	Trench Field Stop	1200 V	20 mW	Chassis Mount	200 A	20 µA	40.3 nF	-40 °C	175 °C	1.8 V	Module	Three Phase Inverter
